REAR FENDER
DR250 1982 (Z) USA (E03)

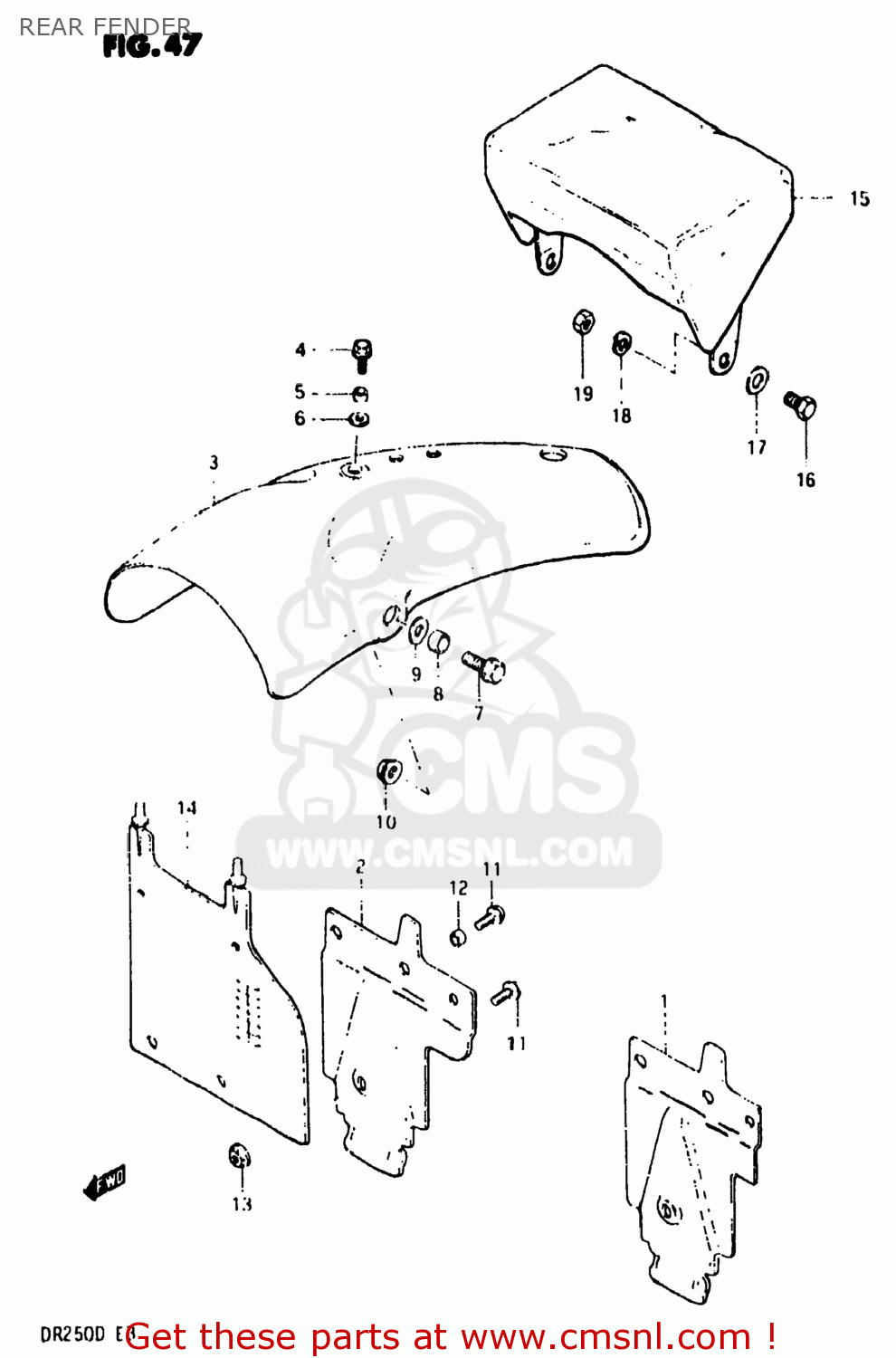

Rear fender diagram DR250 1982 (Z) USA (E03)
REAR FENDER DR250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311238990
ref: 1
FENDER,REAR
€ 6.00
2
6311238220
ref: 2
FENDER,REAR
€ 8.00
3
631113822010V
ref: 3
63111-38221-10V
FENDER,REAR
€ 0.00
4
0151706168
ref: 4
01550-06167
BOLT
€ 1.50
5
0918006073
ref: 5
09180-06306
SPACER
€ 2.00
6
0916006020
ref: 6
09160-06066
WASHER
€ 2.00
7
0151708208
ref: 7
01550-08207
BOLT
€ 3.00
8
0918008100
ref: 8
SPACER(8.2X14X4.5)
€ 22.50
9
0916008007
ref: 9
09160-08127
WASHER (8.7X22X2)
€ 2.00
10
0831931088
ref: 10
08319-3108A
NUT
€ 2.50
11
0215206128
ref: 11
02112-06127
SCREW, FRONT
€ 2.00
12
0918006073
ref: 12
09180-06306
SPACER
€ 2.00
13
0831931068
ref: 13
08319-31067
NUT
€ 2.50
14
6341138220
ref: 14
MUD GUARD,REAR FENDER
€ 5.50
15
949003820049R
ref: 15
94900-38220-4UZ
BAG ASSEMBLY,SEAT TAIL
€ 45.50
16
0110706128
ref: 16
01500-06127
BOLT
€ 2.00
17
0832221068
ref: 17
08322-01067
WASHER
€ 2.00
18
0832121068
ref: 18
08321-01067
LOCK WASHER
€ 2.50
19
0831011068
ref: 19
08310-00067
NUT
€ 2.50
