MAGNETO
DR250 1982 (Z) USA (E03)

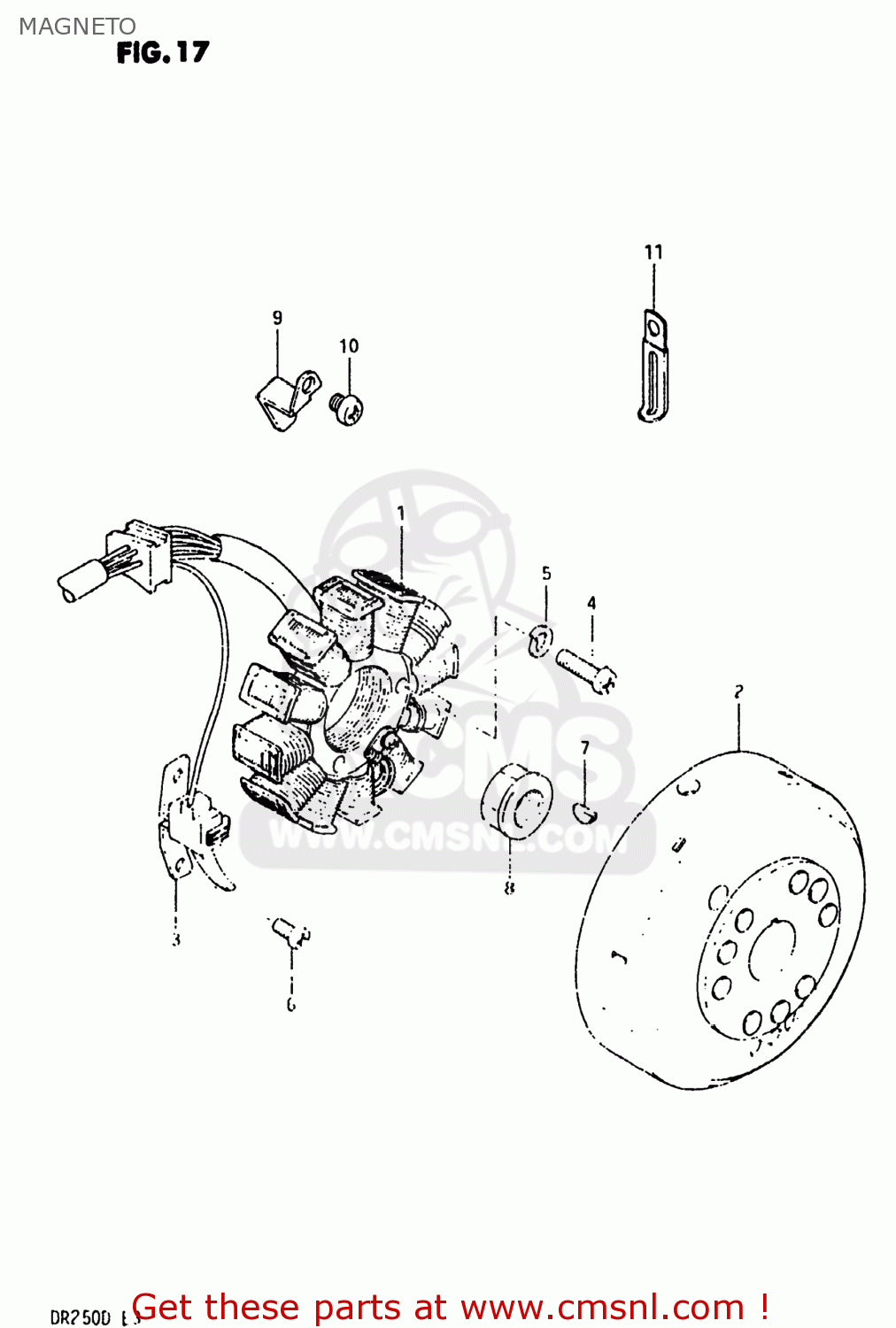

Magneto diagram DR250 1982 (Z) USA (E03)
MAGNETO DR250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210138230
ref: 1
STARTER ASSY
€ 0.00
2
3210238210
ref: 2
ROTOR,FLYWHEEL
€ 247.00
3
3215038210
ref: 3
COIL,PICK UP
€ 62.50
4
0211206258
ref: 4
02112-06257
SCREW
€ 2.00
5
0832121068
ref: 5
08321-01067
LOCK WASHER
€ 2.50
6
0211205108
ref: 6
02112-05107
SCREW
€ 2.00
7
0834131049
ref: 7
09420-04008
KEY 4MM
€ 3.50
8
3179249200
ref: 8
NUT,GENERATOR ROTOR
€ 10.00
9
3237138200
ref: 9
CLAMP,MAGNETO LEAD WIRE
€ 0.00
10
0211206088
ref: 10
02112-06087
SCREW
€ 2.00
11
0940406401
ref: 11
09404-06432
CLAMP L:35
€ 2.50
