FRONT FENDER

DR250 1982 (Z) USA (E03)

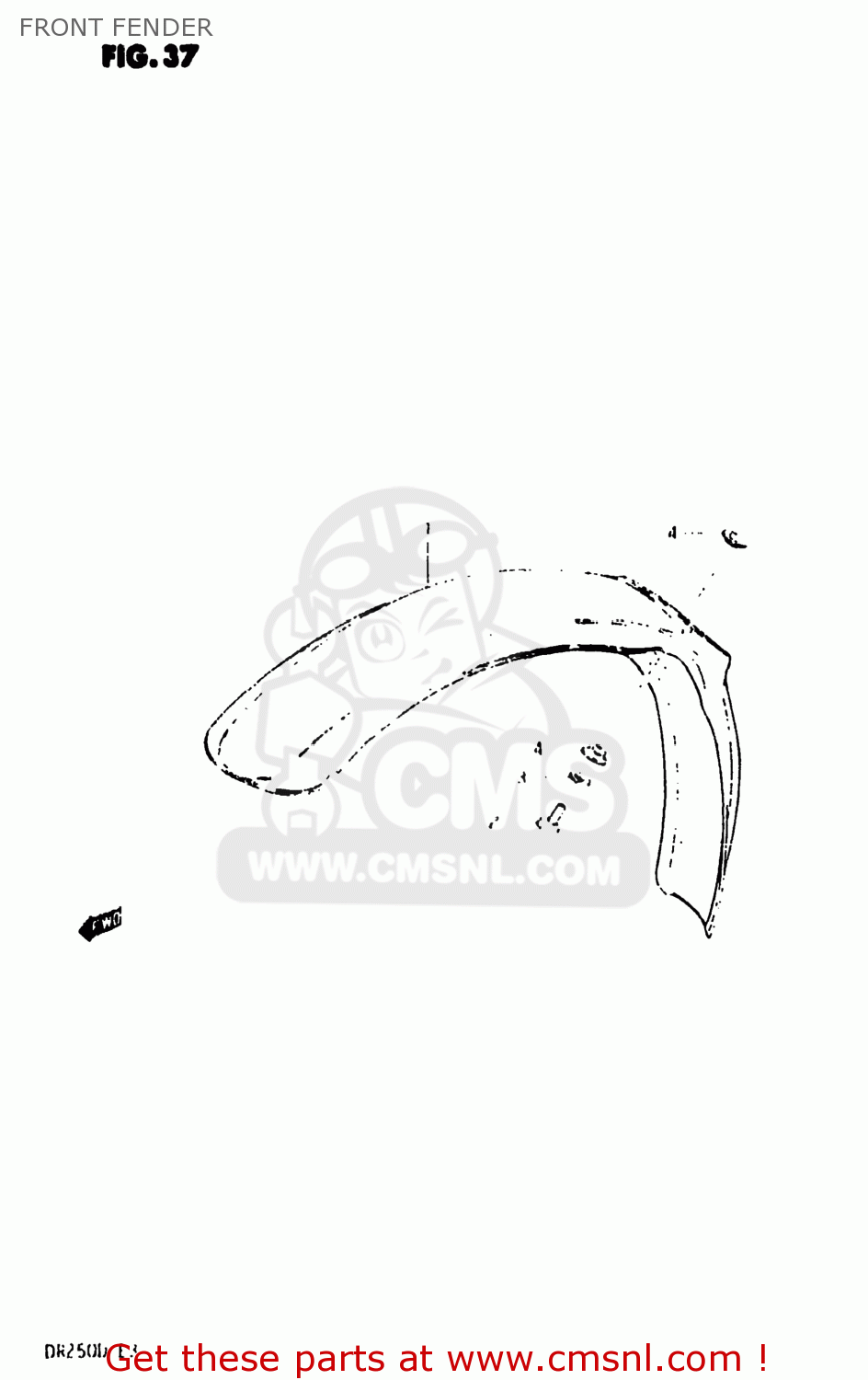

Front fender diagram DR250 1982 (Z) USA (E03)

FRONT FENDER DR250 1982 (Z) USA (E03)

FRONT FENDER DR250 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

531113822010V
ref: 1
53111-38241-13L

FENDER,FRONT

€ 38.00

2

0110706168
ref: 2
01500-06167

BOLT, UPPER

€ 3.00

3

0832121068
ref: 3
08321-01067

LOCK WASHER

€ 2.50

4

0918006048
ref: 4
09169-06053

SPACER

€ 2.00
