CAM CHAIN

DR350 1997 (V) USA (E03)

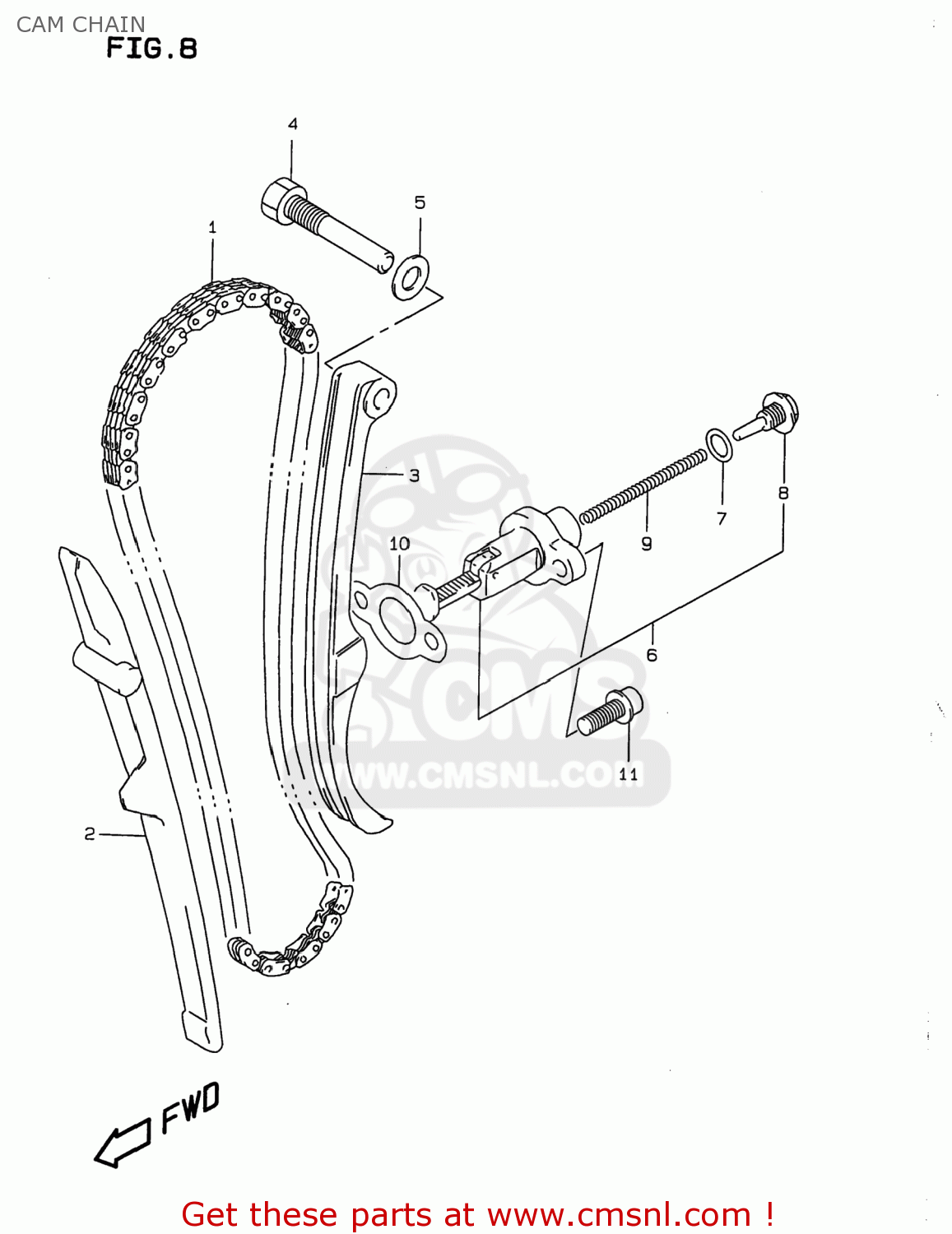

Cam chain diagram DR350 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1276019B71
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 59.50

1277114D10
ref: 2

GUIDE,CAM CHAIN

€ 38.50

1281114D10
ref: 3

TENSIONER,CAM CHAIN

€ 30.00

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

0916808008
ref: 5
09168-08016

GASKET 8.2X14X1 (NAS)

€ 1.00

1283029B11
ref: 6

ADJUSTER ASSY,TENSIONER

€ 72.50

1283202A00
ref: 7

O RING

€ 2.00

1283426B00
ref: 8

PLUG,ADJUSTER

€ 8.00

1283329B00
ref: 9

SPRING

€ 2.50

1283719B10
ref: 10

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.00

0712006203
ref: 11
07120-0620B

BOLT

€ 3.50
