RIGHT HANDLE LEVER
DR350 1997 (V) USA (E03)

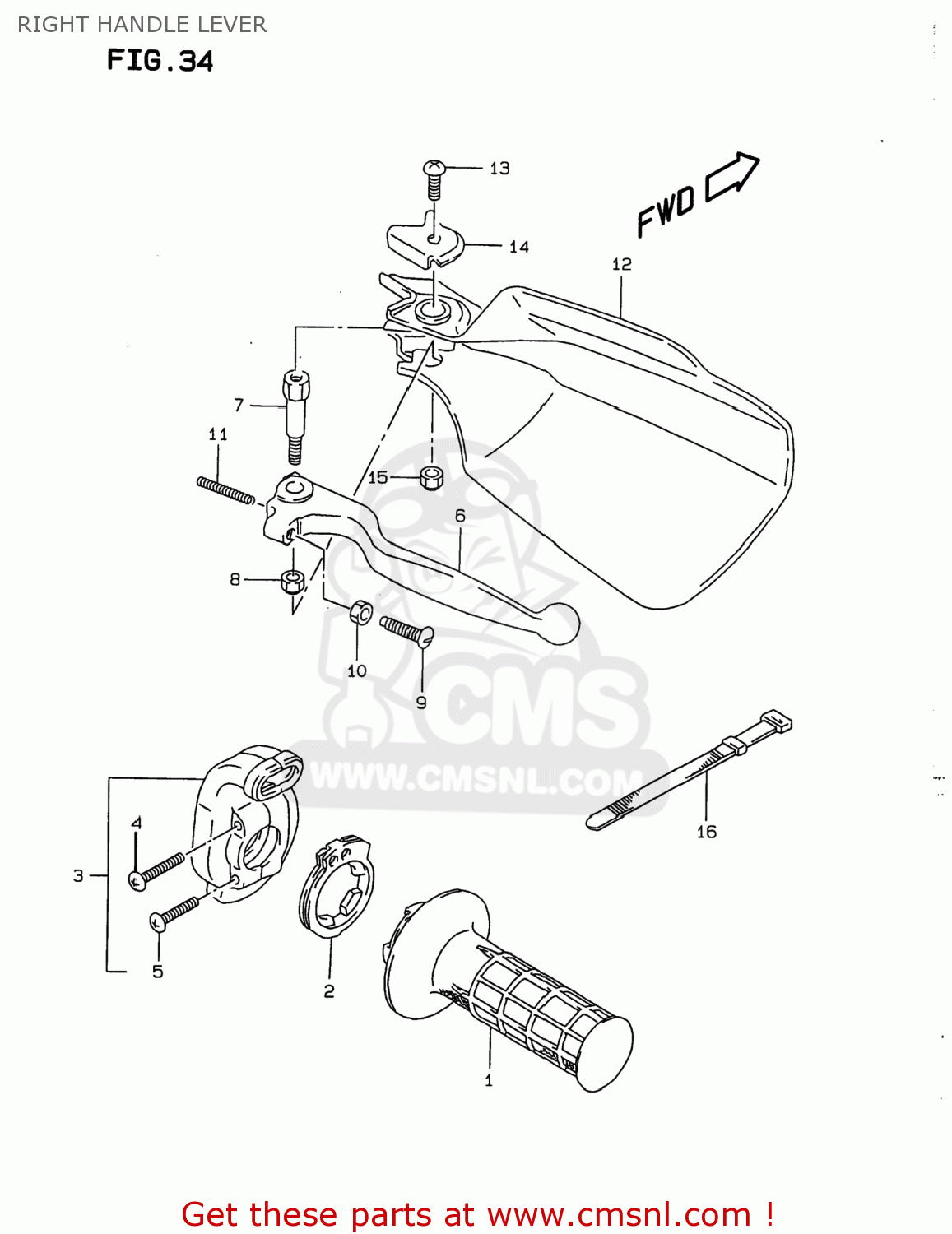

Right handle lever diagram DR350 1997 (V) USA (E03)
RIGHT HANDLE LEVER DR350 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5711027C00
ref: 1-1
GRIP,THROTTLE
€ 25.00
1-2
5711014D11
ref: 1-2
GRIP,THROTTLE
€ 25.50
2
5711414D01
ref: 2
ROTOR,THROTTLE GRIP
€ 8.00
3
5710014D00
ref: 3
CASE ASSY,THROTTLE
€ 24.00
4
0912505066
ref: 4
SCREW(5X25)
€ 2.00
5
0211205203
ref: 5
02112-0520B
SCREW
€ 2.50
6
5742127C00
ref: 6
LEVER,BRAKE
€ 11.00
7
5743105D00
ref: 7
BOLT,BRAKE LEVER PIVOT
€ 9.00
8
0831921068
ref: 8
08319-2106A
NUT 6MM
€ 2.00
9
5743114511
ref: 9
BOLT,ADJUST
€ 3.50
10
0831000053
ref: 10
08310-0005A
NUT
€ 2.50
11
5731814502
ref: 11
SPRING,RETURN
€ 3.00
12
5734105D0025Y
ref: 12
COVER,KNUCKLE,R
€ 24.50
13
0214205107
ref: 13
SCREW
€ 2.50
14
5735514D00
ref: 14
PLATE,KNUCKLE COVER,R UPR
€ 5.00
15
0831921068
ref: 15
08319-2106A
NUT 6MM
€ 2.00
16
0940712402
ref: 16
CLAMP(L:120)
€ 3.00
