SEAT

DR350 1997 (V) USA (E03)

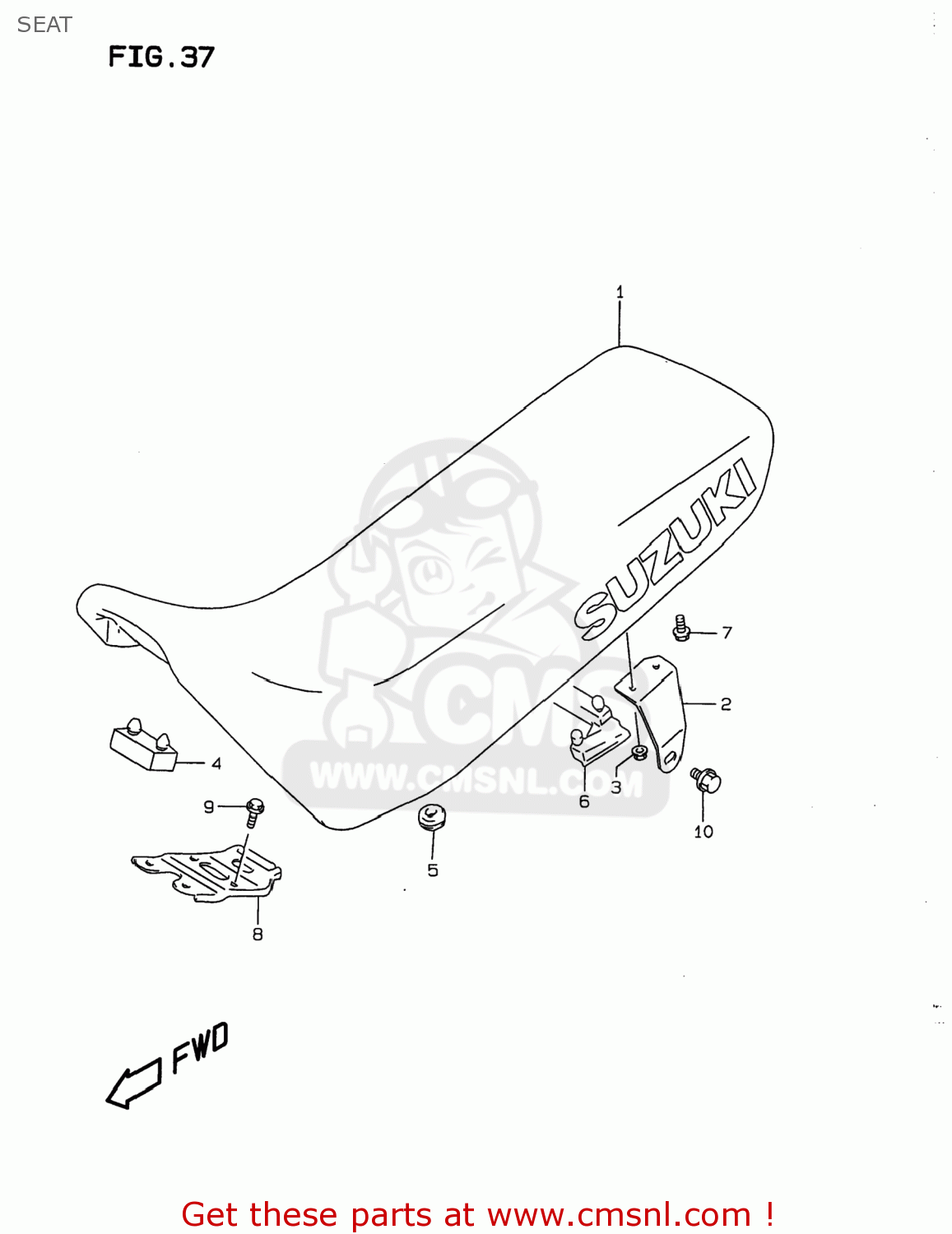

Seat diagram DR350 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4510014D30F4A
ref: 1-1

SEAT SET

€ 0.00

1-2

4510014D30H8A
ref: 1-2

SEAT SET

€ 291.00

1-3

4510014D40L3S
ref: 1-3

SEAT ASSY

€ 330.50

2-1

4511614D00
ref: 2-1

BRACKET,SEAT,R

€ 8.00

2-2

4511714D00
ref: 2-2

BRACKET,SEAT,L

€ 8.00

0831610063
ref: 3
08316-1006B

NUT

€ 2.50

0932108006
ref: 4

CUSHION

€ 3.00

0932008013
ref: 5

CUSHION

€ 4.00

4525514D00
ref: 6

CUSHION

€ 30.00

0155006103
ref: 7
01550-0610A

BOLT

€ 2.50

4512014D00
ref: 8

PLATE,SEAT FR HOOK

€ 12.00

0155008123
ref: 9
01550-0812A

BOLT

€ 3.50

0155008123
ref: 10
01550-0812A

BOLT

€ 3.50
