FRONT MASTER CYLINDER
DR350 1997 (V) USA (E03)

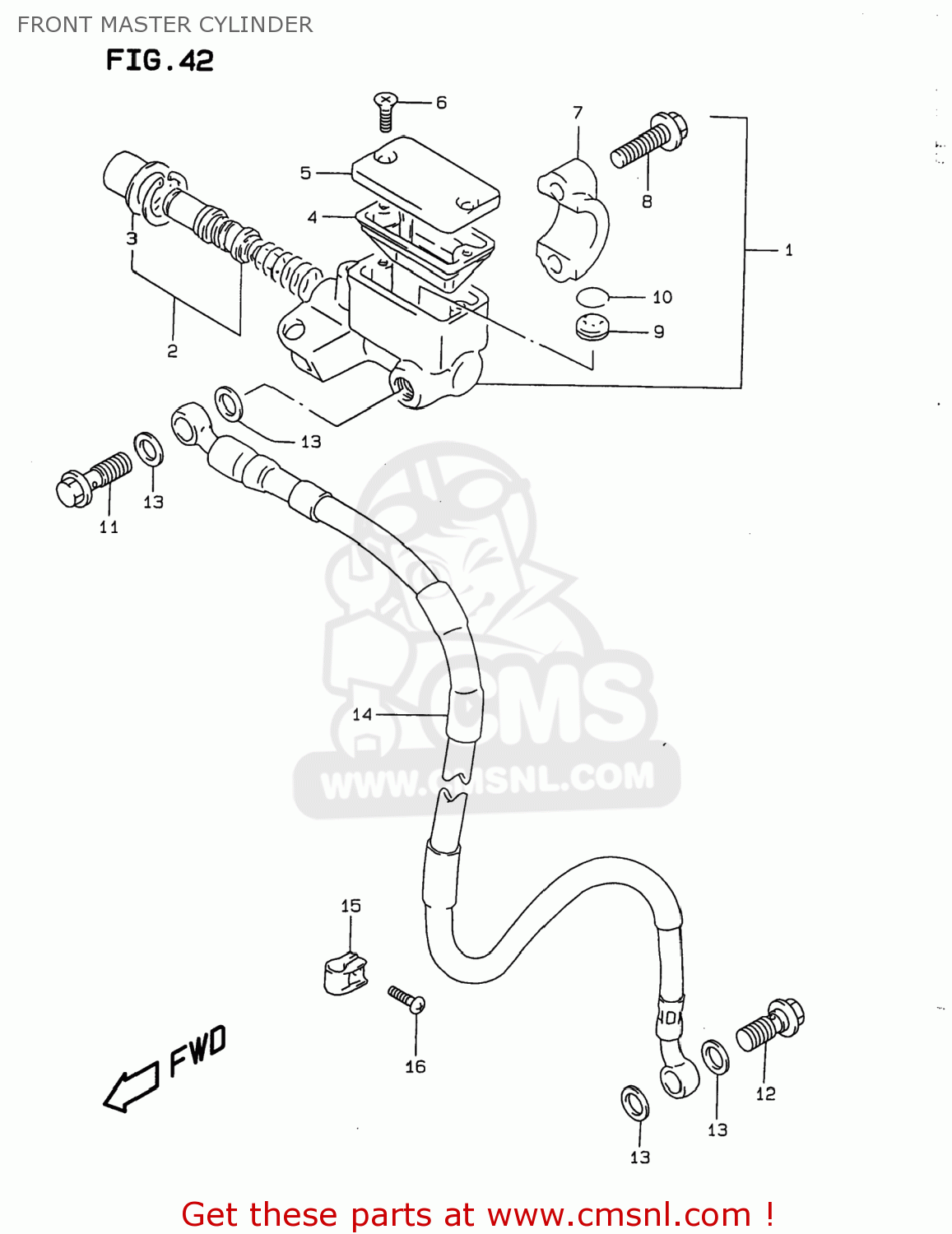

Front master cylinder diagram DR350 1997 (V) USA (E03)
FRONT MASTER CYLINDER DR350 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960005D01
ref: 1
CYLINDER ASSY,FR MASTER
€ 150.00
2
5960027820
ref: 2
PISTON & CUP SET
€ 30.00
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966724500
ref: 4
DIAPHRAGM
€ 11.50
5
5966905D00
ref: 5
CAP
€ 13.50
6
6968949300
ref: 6
SCREW
€ 1.50
7
5967127C00
ref: 7
HOLDER
€ 9.50
8
5967527C00
ref: 8
BOLT
€ 2.50
9
5974836E00
ref: 9
SEPARATOR
€ 5.00
10
6974436E00
ref: 10
RING
€ 2.00
11
0936010039
ref: 11
09360-10061
BOLT UNION
€ 6.50
11
0936010039
ref: 11
09360-10061
BOLT UNION
€ 6.50
12
0936010040
ref: 12
09360-10062
BOLT UNION
€ 5.00
13
0916110009
ref: 13
WASHER(10X15X1.5)
€ 2.00
14
5948014D20
ref: 14
HOSE,FR BRAKE
€ 190.50
15
5862107A10
ref: 15
58621-07A20
CLAMP,BRAKE HOSE
€ 3.50
16
0214206203
ref: 16
02142-0620A
SCREW
€ 2.00
