WIRING HARNESS

DR350 1997 (V) USA (E03)

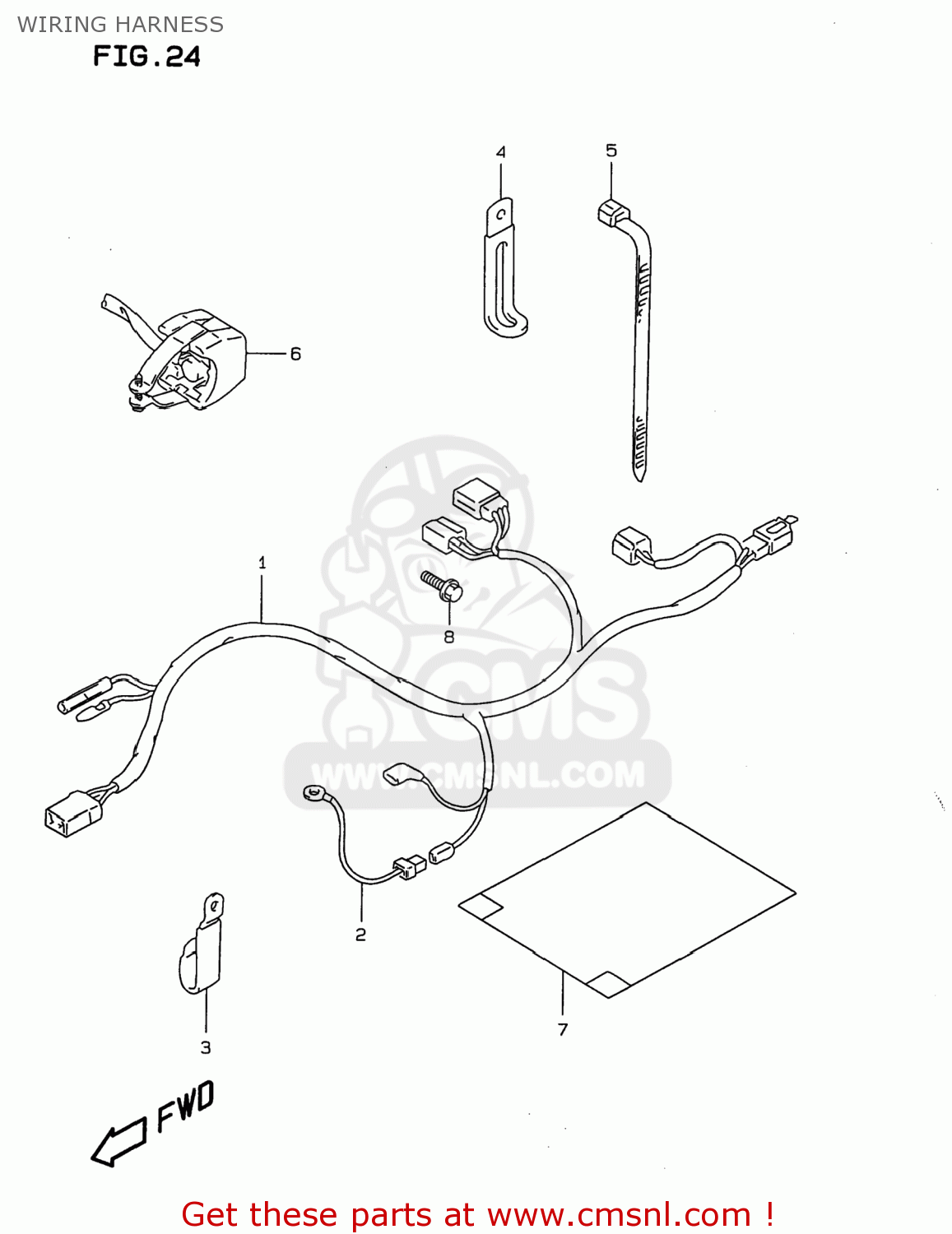

Wiring harness diagram DR350 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

3661014D00
ref: 1

HARNESS,WIRING

€ 77.00

3685105D00
ref: 2

WIRE,REGULATOR EARTH LEAD

€ 3.00

0940306307
ref: 3

CLAMP

€ 4.50

4-1

0940406429
ref: 4-1

CLAMP(L:45)

€ 2.50

4-2

0940406431
ref: 4-2
09404-06432

CLAMP(L:65)

€ 2.50

4-3

0940408417
ref: 4-3
09404-08205

CLAMP L:62

€ 3.00

5-1

0940711401
ref: 5-1

CLAMP(L:95)

€ 2.50

5-2

0940714403
ref: 5-2

CLAMP(L:125)

€ 2.50

5-3

0940718403
ref: 5-3
09407-18402

CLAMP L:165

€ 2.50

5-4

0940725401
ref: 5-4

CLAMP(L:235)

€ 4.00

3782014X50
ref: 6

SWITCH ASSY,ENGINE STOP

€ 24.50

3661815D20
ref: 7

COVER,WIRING HARNESS

€ 12.00

0155006103
ref: 8
01550-0610A

BOLT

€ 2.50

WIRING HARNESS

all assemblies
