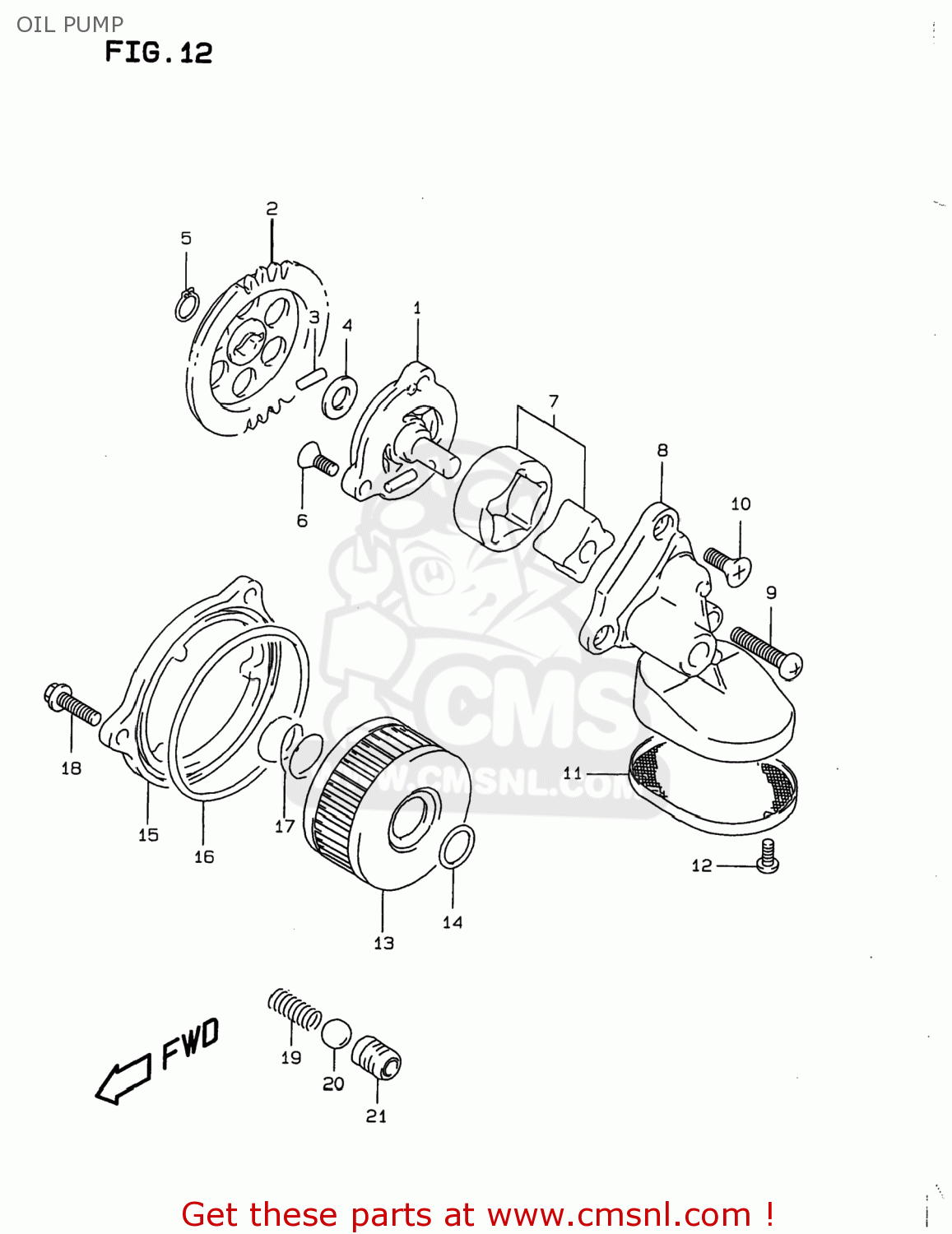

OIL PUMP

ref

part #

description

quantity

1

1640014D01
ref: 1

PUMP ASSY,ENGINE OIL NO.1

€ 164.50

2

1633114D01
ref: 2
16331-14D02

GEAR,OIL PUMP DRIVEN (N

€ 30.00

3

0926104009
ref: 3

PIN(4X15.8)

€ 1.50

4

0918110158
ref: 4

SHIM(10X18X0.5)

€ 2.50

5

0833131106
ref: 5
08331-3110A

CIRCLIP,10MM

€ 2.00

6

0212206163
ref: 6
02122-0616A

SCREW ,6X16

€ 2.00

7

1641014D00
ref: 7

ROTOR SET,OIL PUMP,NO.2

€ 45.00

8

1643114D01
ref: 8

COVER,OIL PUMP NO.2

€ 73.50

9

0211206303
ref: 9
02112-0630A

SCREW 6X30

€ 2.50

10

0212206163
ref: 10
02122-0616A

SCREW ,6X16

€ 2.00

11

1652014D00
ref: 11

STRAINER,OIL PUMP NO.2

€ 11.00

12

0211205103
ref: 12
02112-0510A

SCREW

€ 2.00

13

1651038240
ref: 13

FILTER ASSY,ENGINE OIL

€ 7.50

14

0928015007
ref: 14

O RING(D:2.4,ID:15.8)

€ 2.00

15

1651214D00
ref: 15

CAP,OIL FILTER

€ 23.50

16

0928072001
ref: 16

O RING(D:2.4,ID:73)

€ 5.00

17

0944021006
ref: 17

SPRING

€ 2.50

18

0154706203
ref: 18
01547-0620B

SCREW

€ 2.50

19

0944007073
ref: 19

SPRING

€ 4.00

20

0611112004
ref: 20

BALL

€ 1.50

21

1644214D00
ref: 21

SEAT,OIL CHECK VALVE

€ 28.50

all assemblies
