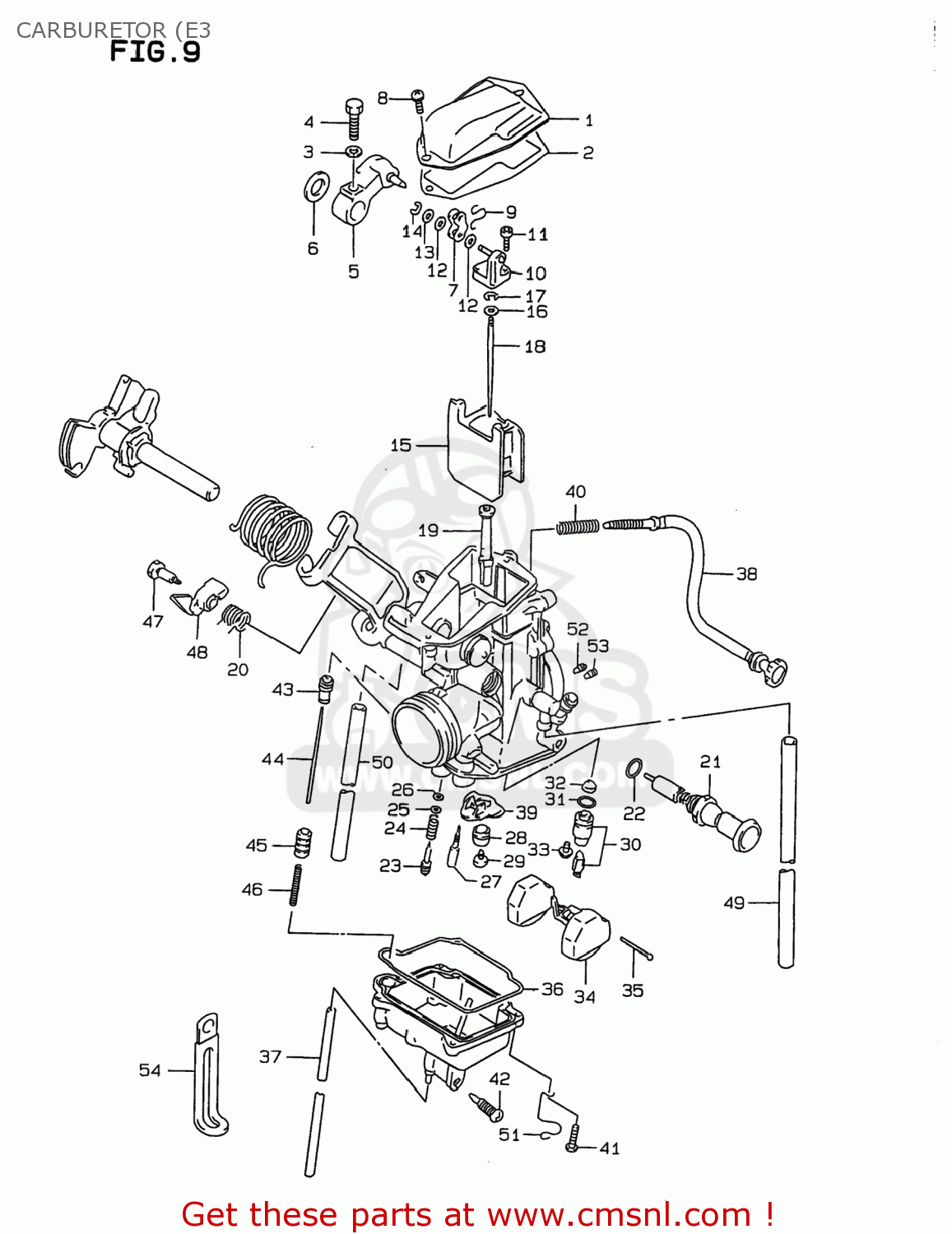

CARBURETOR (E3

ref

part #

description

quantity

1320014D03
ref:

CARBURETOR ASSEMBLY

€ 518.50

1

1326127A00
ref: 1

COVER,CARBURETOR,TOP

€ 14.50

2

1326627A00
ref: 2

GASKET,CARBURETOR TOP (NAS)

€ 6.00

3

0832101053
ref: 3
08321-0105A

LOCK,WASHER

€ 3.00

4

0150005163
ref: 4
01500-0516B

BOLT

€ 1.50

5

1354113E00
ref: 5

LEVER SET,THROTTLE

€ 34.50

6

1357438200
ref: 6
13575-38200

RING,THROTTLE SHAFT

€ 4.00

7

1344714A00
ref: 7

PLATE

€ 16.50

8

0211234103
ref: 8
02112-3410A

SCREW

€ 2.00

9

1344614A00
ref: 9

SPRING

€ 4.00

10

1339827A02
ref: 10

CONNECTOR

€ 18.00

11

0211203123
ref: 11
02112-0312B

SCREW

€ 2.50

12

1344514A00
ref: 12

GASKET (NAS)

€ 3.00

13-1

0916004021
ref: 13-1
09160-04024

WASHER

€ 2.00

13-2

0916004024
ref: 13-2

WASHER(4.5X8X0.5)

€ 2.00

14

1341538300
ref: 14

E RING

€ 2.00

15

1355114D00
ref: 15

VALVE,PISTON

€ 126.00

16

1338247010
ref: 16

WASHER,JET NEEDLE

€ 3.00

17

1339410010
ref: 17

CLIP

€ 4.50

18

1338314D00
ref: 18

NEEDLE,JET

€ 15.00

19

0949400681
ref: 19

JET,NEEDLE(P-8)

€ 23.50

20

1349414D00
ref: 20

SPRING

€ 7.00

21

1341114D00
ref: 21

PLUNGER ASSY

€ 39.00

22

1337446710
ref: 22

O RING

€ 4.50

23

1327947070
ref: 23

SCREW,PILOT

€ 11.50

24

1326847070
ref: 24

SPRING

€ 5.00

25

1329129900
ref: 25

WASHER

€ 2.00

26

1329529900
ref: 26

O RING,PILOT AIR SCREW

€ 4.00

27

0949235017
ref: 27

JET,PILOT(37.5)

€ 12.00

28

1333113A00
ref: 28

RING,MAIN JET FIXING

€ 5.50

29

0949125011
ref: 29

JET,MAIN(127.5)

€ 10.00

30

1337037100
ref: 30
13370-05530

VALVE ASSEMBLY,NEEDLE

€ 63.00

31

1337444080
ref: 31
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

32

1337684110
ref: 32
13376-19F00

FILTER

€ 6.50

33

1360243410
ref: 33

SCREW

€ 2.50

34

1325028A00
ref: 34

FLOAT

€ 33.00

35

1325492311
ref: 35

PIN,FLOAT

€ 2.00

36

1325127A00
ref: 36

O RING,FLOAT CHAMBER

€ 9.00

37

0935230503600
ref: 37

HOSE(3X5X600)

€ 8.00

38

1326714D00
ref: 38

ADJUSTER ASSY

€ 44.50

39-1

1333114D00
ref: 39-1
13331-13E00

RING

€ 5.50

39-2

1333113E00
ref: 39-2

RING

€ 5.50

40

1326814D00
ref: 40

SPRING

€ 4.00

41-1

1360104148
ref: 41-1

SCREW

€ 2.50

41-2

0211204163
ref: 41-2
02112-0416A

SCREW 4X16

€ 1.00

42

1324713A00
ref: 42
13247-02340

SCREW,DRAIN

€ 5.50

43

1349944500
ref: 43

BOOT, ACCELE PUMP ROD

€ 11.00

44

1348714D00
ref: 44

ROD

€ 9.00

45

1349327A00
ref: 45

PLUNGER

€ 9.00

46

1327109400
ref: 46

SPRING

€ 4.50

47

1361314A00
ref: 47

BOLT

€ 8.00

48

1349014A00
ref: 48

LEVER

€ 9.50

49

0935250903600
ref: 49

HOSE(5X9X600)

€ 28.50

50

0935250903600
ref: 50

HOSE(5X9X600)

€ 28.50

51

1369219C00
ref: 51

CLIP

€ 6.00

52

0949370009
ref: 52

JET,MAIN AIR(0.7)

€ 13.00

53

0949322005
ref: 53

JET,AIR(1.1)

€ 12.00

54-1

0940406429
ref: 54-1

CLAMP(L:45)

€ 2.50

54-2

0940406432
ref: 54-2

CLAMP(L:65)

€ 2.50
