FOOTREST

DR350 1997 (V) USA (E03)

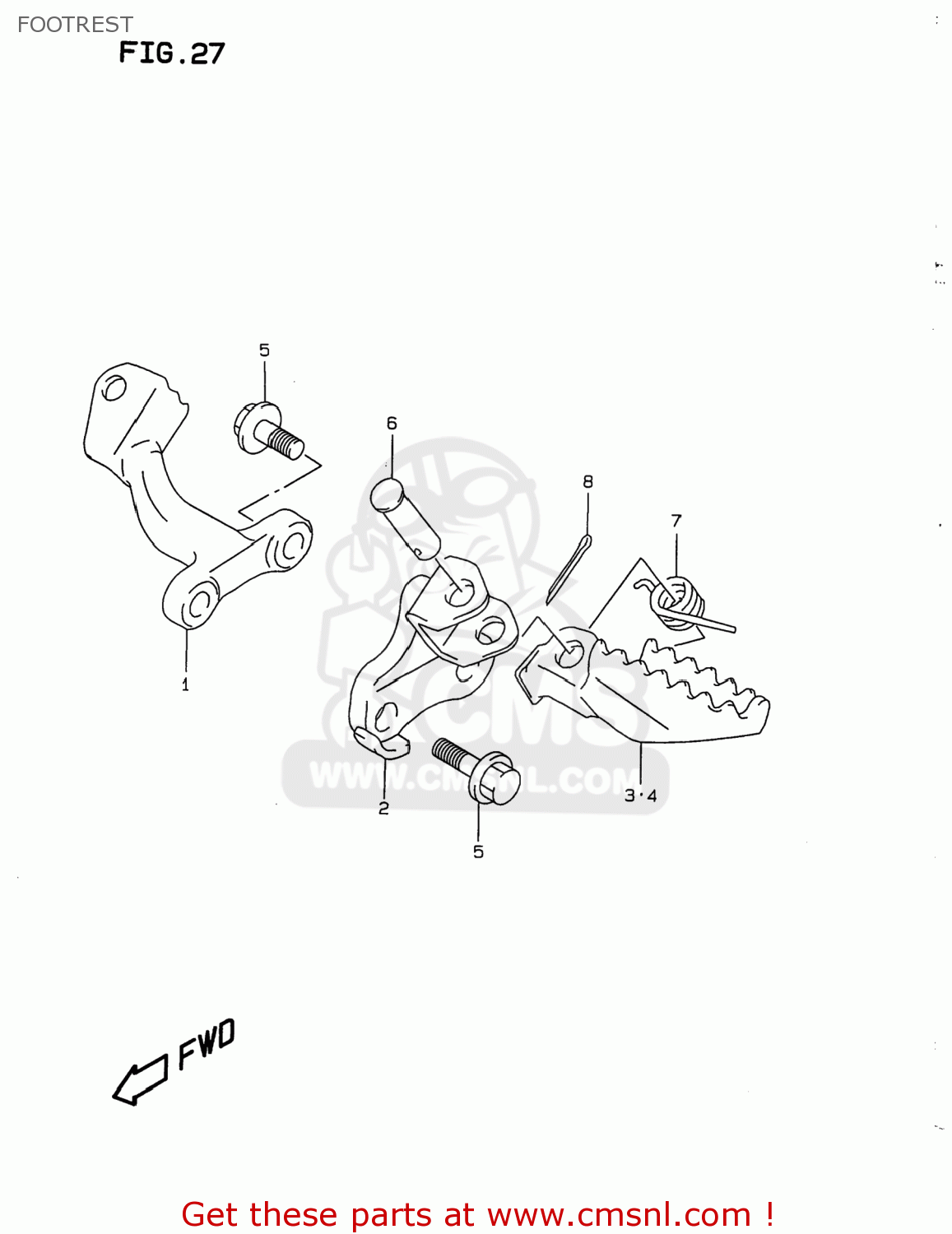

Footrest diagram DR350 1997 (V) USA (E03)

FOOTREST DR350 1997 (V) USA (E03)

FOOTREST DR350 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4351014D11019
ref: 1
43510-14D12-019

BRACKET,FRONT FOOTREST

€ 53.50

2

4352014D00019
ref: 2

BRACKET,FR FOOTREST,L

€ 38.50

3

4355114D20
ref: 3
43551-14D21

FOOTREST,RIGHT

€ 186.50

4

4356114D20
ref: 4

FOOTREST,LEFT

€ 186.50

5

0910310245
ref: 5

BOLT(10X40)

€ 5.50

6

0920010013
ref: 6

PIN

€ 2.50

7

0944816032
ref: 7

SPRING

€ 2.00

8

0411120158
ref: 8
04111-2015A

PIN

€ 1.50
