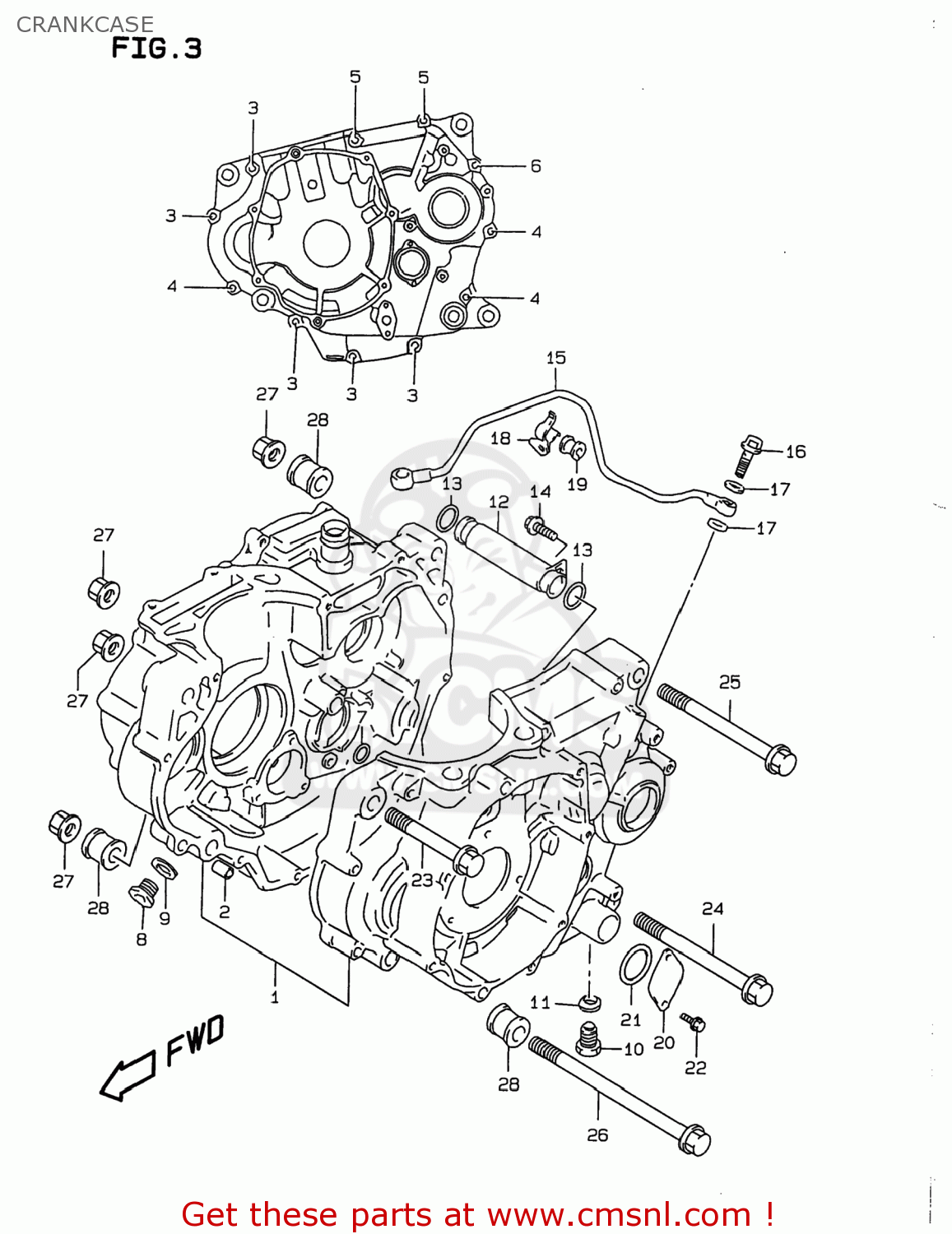

CRANKCASE

ref

part #

description

quantity

1

1130115821
ref: 1

CRANKCASE SET

€ 838.00

2

0421109149
ref: 2

PIN

€ 2.00

3

0154706453
ref: 3
01547-0645B

BOLT

€ 3.00

4

0154706503
ref: 4
01547-0650B

BOLT

€ 3.50

5

0154706603
ref: 5
01547-0660B

BOLT

€ 3.50

6

0154706707
ref: 6

BOLT

€ 2.50

7

0928012009
ref: 7

O RING(D:1.9,ID:12.6)

€ 2.50

8

0924814005
ref: 8

PLUG,14X12

€ 5.00

9

0916814002
ref: 9
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

10

0150012203
ref: 10
01500-1220B

BOLT

€ 3.00

11

0916812002
ref: 11

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

12

1145014D01
ref: 12

PIPE,T/M OIL INNER

€ 11.50

13

0928015007
ref: 13

O RING(D:2.4,ID:15.8)

€ 2.00

14

0155006123
ref: 14
01550-0612A

BOLT

€ 2.50

15

1128014D02
ref: 15

PIPE,T/M OIL OUTER

€ 55.00

16

0936008011
ref: 16

BOLT UNION

€ 4.00

17

0916808008
ref: 17
09168-08016

GASKET 8.2X14X1 (NAS)

€ 1.00

18

1129014D00
ref: 18

CLAMP,OIL PIPE

€ 6.00

19

0932006019
ref: 19

CUSHION

€ 12.50

20

1138514D00
ref: 20

CAP,NEUTRAL SWITCH HOLE

€ 4.00

21

0928026005
ref: 21

O RING(D:2.4,ID:26.2)

€ 2.50

22

0154705103
ref: 22
01547-0510B

BOLT

€ 2.50

23

0910310230
ref: 23
09103-10083

BOLT 10X85

€ 6.00

24

0910310242
ref: 24

BOLT(10X101.5)

€ 6.50

25

0910310063
ref: 25

BOLT(10X115)

€ 5.00

26

0910310241
ref: 26

BOLT(10X143)

€ 6.00

27

0915910058
ref: 27
09159-10115

NUT

€ 4.00

28

1161114D00
ref: 28

SPACER,ENGINE MOUNTING

€ 15.50
