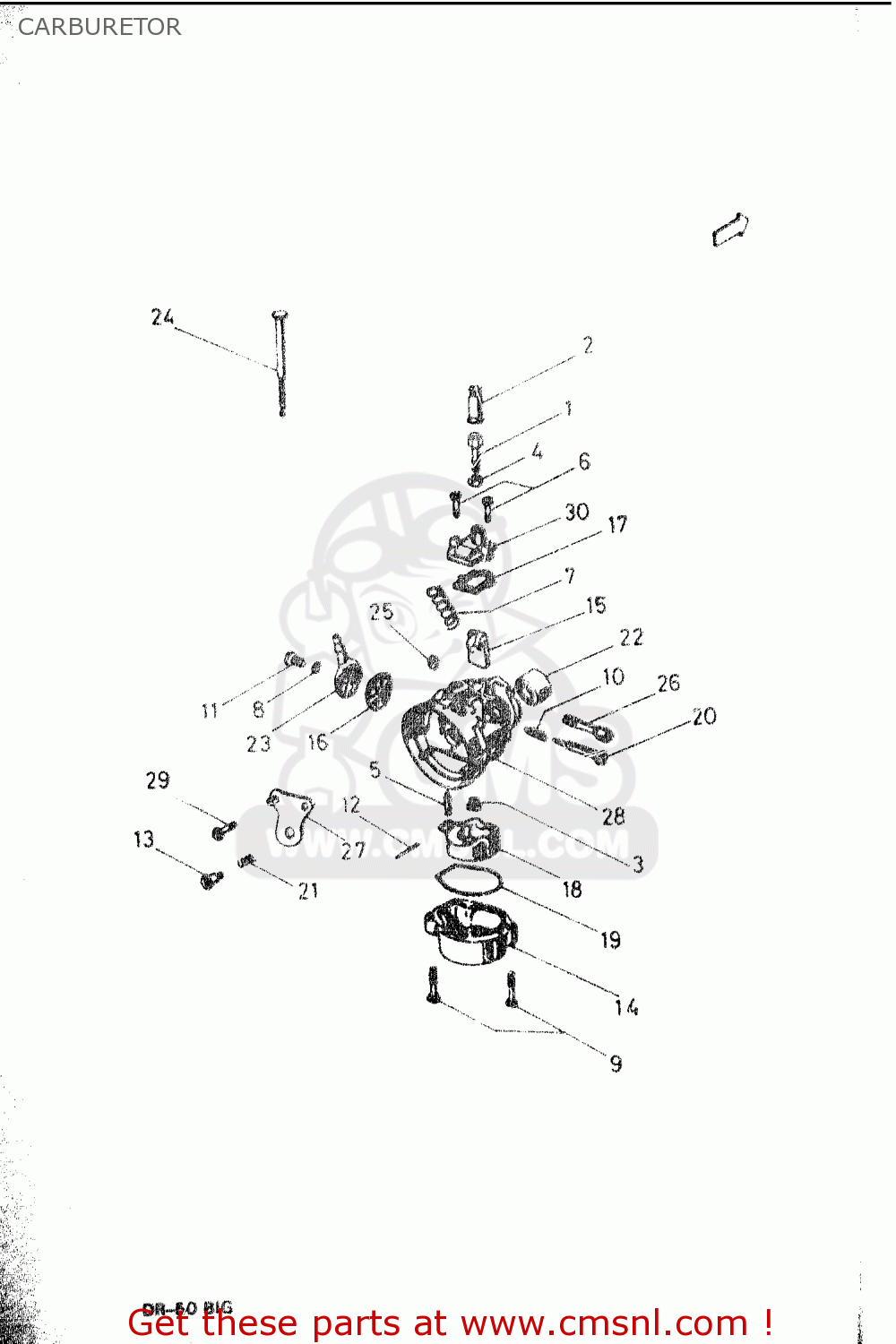

CARBURETOR

ref

part #

description

quantity

0

1320000E11
ref: 0

CARBURETOR ASSY, SHA 12-12 DELL'ORTO (57

€ 0.00

1

1366400E00
ref: 1

SCREW

€ 0.00

2

1368200E00
ref: 2

CAP

€ 0.00

3

1333400E11
ref: 3

JET, MAIN (57)

€ 0.00

4

1366100E00
ref: 4

SCREW

€ 0.00

5

1337000E00
ref: 5

NEEDLE, JET

€ 9.00

6

1331200E00
ref: 6

SCREW

€ 0.00

7

1357300E00
ref: 7

SPRING

€ 3.00

8

1329500E00
ref: 8

GASKET

€ 0.00

9

1331300E00
ref: 9

SCREW

€ 0.00

10

1326800E00
ref: 10

SPRING

€ 2.50

11

1331400E00
ref: 11

SCREW

€ 0.00

12

1325400E00
ref: 12

PIN, FLOAT

€ 0.00

13

1331500E00
ref: 13

SCREW

€ 0.00

14

1324500E00
ref: 14

CARBURETOR BOWL

€ 0.00

15

1355100E00
ref: 15

GATE

€ 7.00

16

1321300E00
ref: 16

FILTER

€ 4.00

17

1324900E00
ref: 17

GASKET

€ 0.00

18

1325000E00
ref: 18

FLOAT

€ 7.50

19

1325800E00
ref: 19

GASKET

€ 4.00

20

1326900E00
ref: 20

SCREW ADJUSTER

€ 2.50

21

1341700E00
ref: 21

SPRING, DIAPHRAGM

€ 0.00

22

1321400E00
ref: 22

BUSH

€ 3.50

23

1321600E00
ref: 23

CASK

€ 10.00

24

1346900E00
ref: 24

DRIVING AXLE

€ 0.00

25

1332200E00
ref: 25

NUT

€ 0.00

26

1331600E00
ref: 26

SCREW

€ 0.00

27

1341200E00
ref: 27

DIAPHRAGM ASSY

€ 0.00

28

1322000E00
ref: 28

CARBURETOR BODY

€ 0.00

29

1331700E00
ref: 29

SCREW

€ 0.00

30

1326000E00
ref: 30

COVER

€ 0.00

0

1333908E00
ref: 0

HAIR FET 55

€ 0.00

all assemblies
