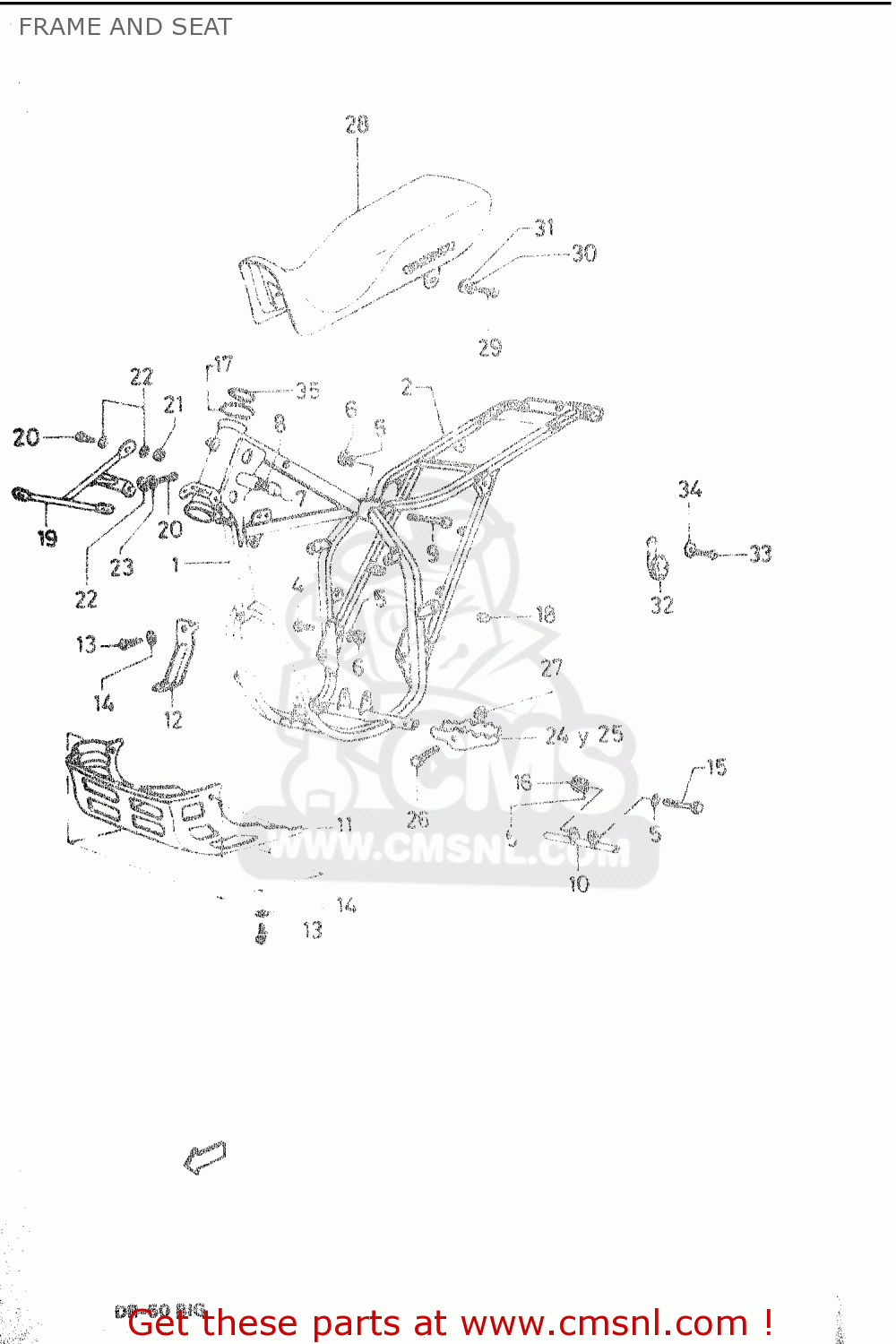

FRAME AND SEAT

ref

part #

description

quantity

1-1

4100000E10E10
ref: 1-1

FRAME (WHITE)

€ 0.00

1-2

4100000E1034S
ref: 1-2

FRAME (BLUE)

€ 0.00

2-1

4130000E10E10
ref: 2-1

FRAME, REAR (WHITE)

€ 0.00

2-2

4130000E1034S
ref: 2-2

FRAME, REAR (BLUE)

€ 0.00

4

0910008E04
ref: 4

SCREW M8X20 DIN 933/8G

€ 0.00

5

0916008E03
ref: 5

WASHER B8 DIN 125

€ 0.00

6

0831921088
ref: 6

NUT

€ 1.50

7

4141100E00
ref: 7

CUSHION

€ 3.00

8

4142100E00E0Z
ref: 8

WASHER

€ 3.00

9

0910008E12
ref: 9

SCREW M8X100 DIN 931

€ 0.00

10

4136000E00E0N
ref: 10

BRACKET SET, CRANKASE

€ 0.00

11-1

4251100E0034S
ref: 11-1

PROTECTOR, ENGINE (BLUE)

€ 15.00

11-2

4251100E0025Y
ref: 11-2

PROTECTOR, ENGINE (YELLOW)

€ 18.00

11-3

4251100E00BE1
ref: 11-3

PROTECTOR, ENGINE (WHITE)

€ 0.00

12

4252100E00E0Z
ref: 12

PLATE, PROTECTOR COOLING

€ 16.00

13

0214205125
ref: 13

SCREW M5X12 DIN 7985/N

€ 1.50

14

0916005E03
ref: 14

WASHER 5 DIN 9021

€ 0.00

15

0910008E05
ref: 15

SCREW M8X1X80 DIN 960

€ 6.00

16

0914008E03
ref: 16

NUT M8X1 DIN 985

€ 0.00

17

0926005E00
ref: 17

BALL

€ 0.00

18

1376100E00
ref: 18

CUSHION

€ 5.50

19-1

5322000E00E10
ref: 19-1

BRACKET, COWLING FRONT (WHITE)

€ 0.00

19-2

5322000E0034S
ref: 19-2

BRACKET, COWLING FRONT (BLUE)

€ 0.00

20

0912505E04
ref: 20

SCREW M5X12 DIN 7985

€ 0.00

21

0831011056
ref: 21

NUT

€ 2.50

22

0916005E02
ref: 22

WASHER B135 DIN 125

€ 0.00

23

0916305E01
ref: 23

WASHER A5 DIN 6798

€ 0.00

24

4355000E01E0Z
ref: 24

FOOTREST, FRONT RH

€ 57.50

25

4356000E01E0Z
ref: 25

FOOTREST, FRONT RL

€ 57.50

26

0910006E06
ref: 26

SCREW M6X30 DIN 931

€ 0.00

27

0914006E02
ref: 27

NUT M6 DIN 985

€ 0.00

28-1

4510000E0034S
ref: 28-1

SEAT SET (BLUE)

€ 0.00

28-2

4510000E0025Y
ref: 28-2

SEAT SET (YELLOW)

€ 0.00

29

0912506E03
ref: 29

SCREW M6X15 DIN 7985/N

€ 0.00

30

0916406E04
ref: 30

WASHER A6 DIN 137

€ 0.00

31

0916006E03
ref: 31

WASHER B6 DIN 125

€ 2.50

32

3850000E10
ref: 32

HORN ASSY

€ 0.00

33

0912506E05
ref: 33

SCREW M6X16 DIN 7985/N

€ 0.00

34

0916306E02
ref: 34

WASHER 6 DIN 6798

€ 0.00

35

0928033E01
ref: 35

O-RING

€ 0.00
