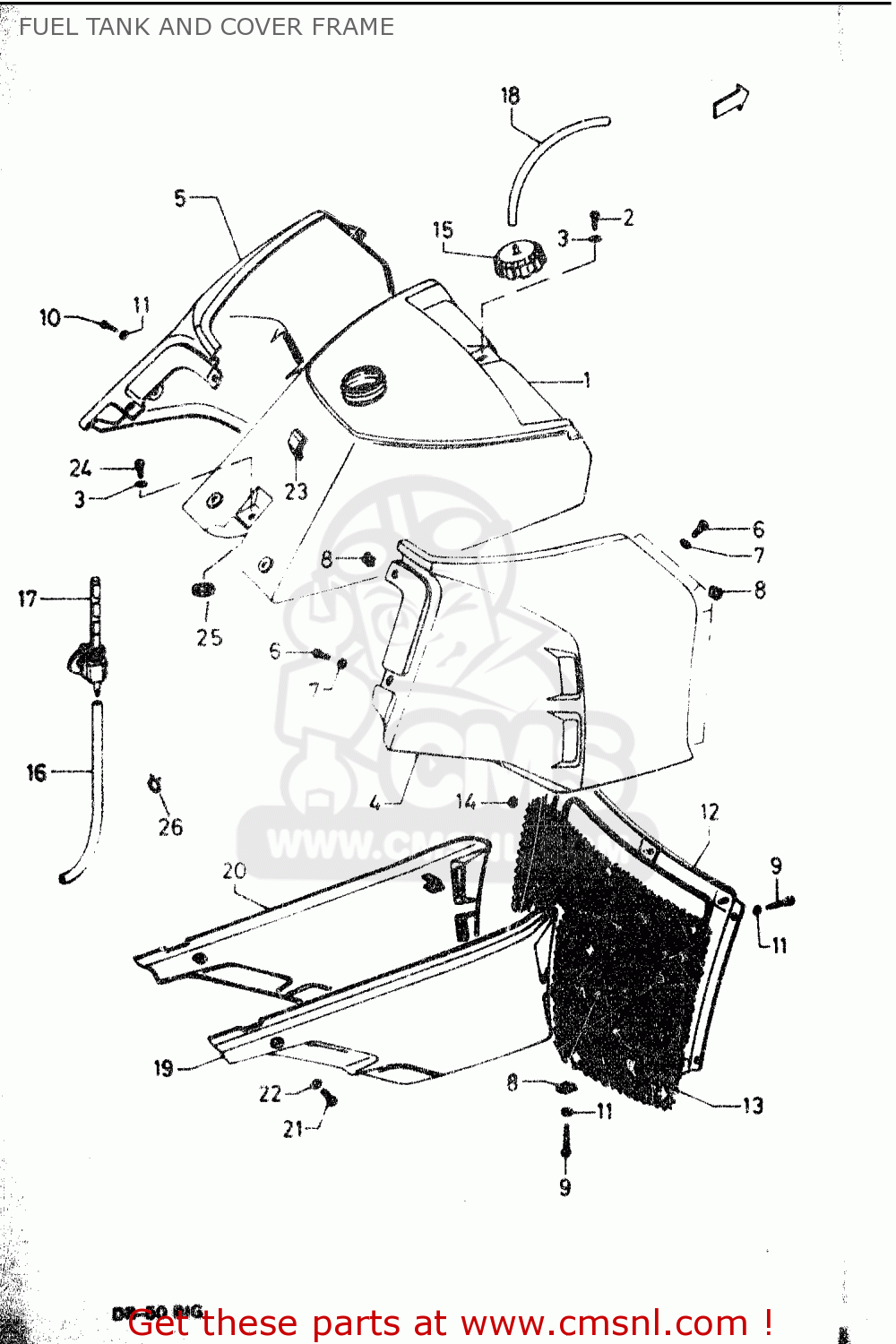

FUEL TANK AND COVER FRAME

ref

part #

description

quantity

1

4410000E00
ref: 1

TANK ASSY, FUEL

€ 0.00

2

0912506E05
ref: 2

SCREW M6X16 DIN 7985/N

€ 0.00

3

0916006E04
ref: 3

WASHER B6 DIN 9021/N

€ 0.00

4-1

4751100E0034S
ref: 4-1

COVER, FUEL TANK RH (BLUE)

€ 52.00

4-2

4751100E0025Y
ref: 4-2

COVER, FUEL TANK RH (YELLOW)

€ 0.00

4-3

4751100E00BE1
ref: 4-3

COVER, FUEL TANK RH (WHITE)

€ 0.00

5-1

4752100E0034S
ref: 5-1

COVER, FUEL TANK RL (BLUE)

€ 52.00

5-2

4752100E0025Y
ref: 5-2

COVER, FUEL TANK RL (YELLOW)

€ 0.00

5-3

4752100E00BE1
ref: 5-3

COVER, FUEL TANK RL (WHITE)

€ 0.00

6

0912505E05
ref: 6

SCREW M5X10 DIN 7985/N

€ 3.00

7

0916005E03
ref: 7

WASHER 5 DIN 9021

€ 0.00

8

1374500E00
ref: 8

NUT (NUL 522-4A)

€ 3.00

9

0913203E05
ref: 9

SCREW 3.9X13 DIN 7981

€ 0.00

10

0354104106
ref: 10

TAPPING SCREW 4X10/A

€ 1.50

11

0916004E01
ref: 11

WASHER B4 DIN 125

€ 1.00

12

5314100E00
ref: 12

BUMPER, COOLER

€ 94.00

13

5314200E00
ref: 13

WIRE MESH

€ 24.00

14

0914804E00
ref: 14

NUT 4X15 ST

€ 0.00

15

4420000E00
ref: 15

CAP, FUELTANK

€ 11.50

16

4421200E00
ref: 16

HOSE 4.5X75X125

€ 0.00

17

4430000E00
ref: 17

COCK ASSY, FUEL

€ 15.00

18

4422200E01
ref: 18

HOSE, (L:260)

€ 2.50

19-1

4712100E0034S
ref: 19-1

COVER, FRAME RH (BLUE)

€ 52.00

19-2

4712100E0025Y
ref: 19-2

COVER, FRAME RH (YELLOW)

€ 41.50

19-3

4712100E00BE1
ref: 19-3

COVER, FRAME RH (WHITE)

€ 0.00

20-1

4722100E0034S
ref: 20-1

COVER, FRAME LH (BLUE)

€ 52.00

20-2

4722100E0025Y
ref: 20-2

COVER, FRAME LH (YELLOW)

€ 0.00

20-3

4722100E00BE1
ref: 20-3

COVER, FRAME LH (WHITE)

€ 0.00

21

0912506E01
ref: 21

SCREW M6X10 DIN 7985/N

€ 1.00

22

0916006E03
ref: 22

WASHER B6 DIN 125

€ 2.50

23

4753100E00
ref: 23

GASKET

€ 3.00

24

0211215255
ref: 24

SCREW M5X25 DIN 7985/N

€ 1.50

25

4421300E00
ref: 25

CUSHION

€ 0.00

26

0940100E00
ref: 26

CLIP

€ 1.50
