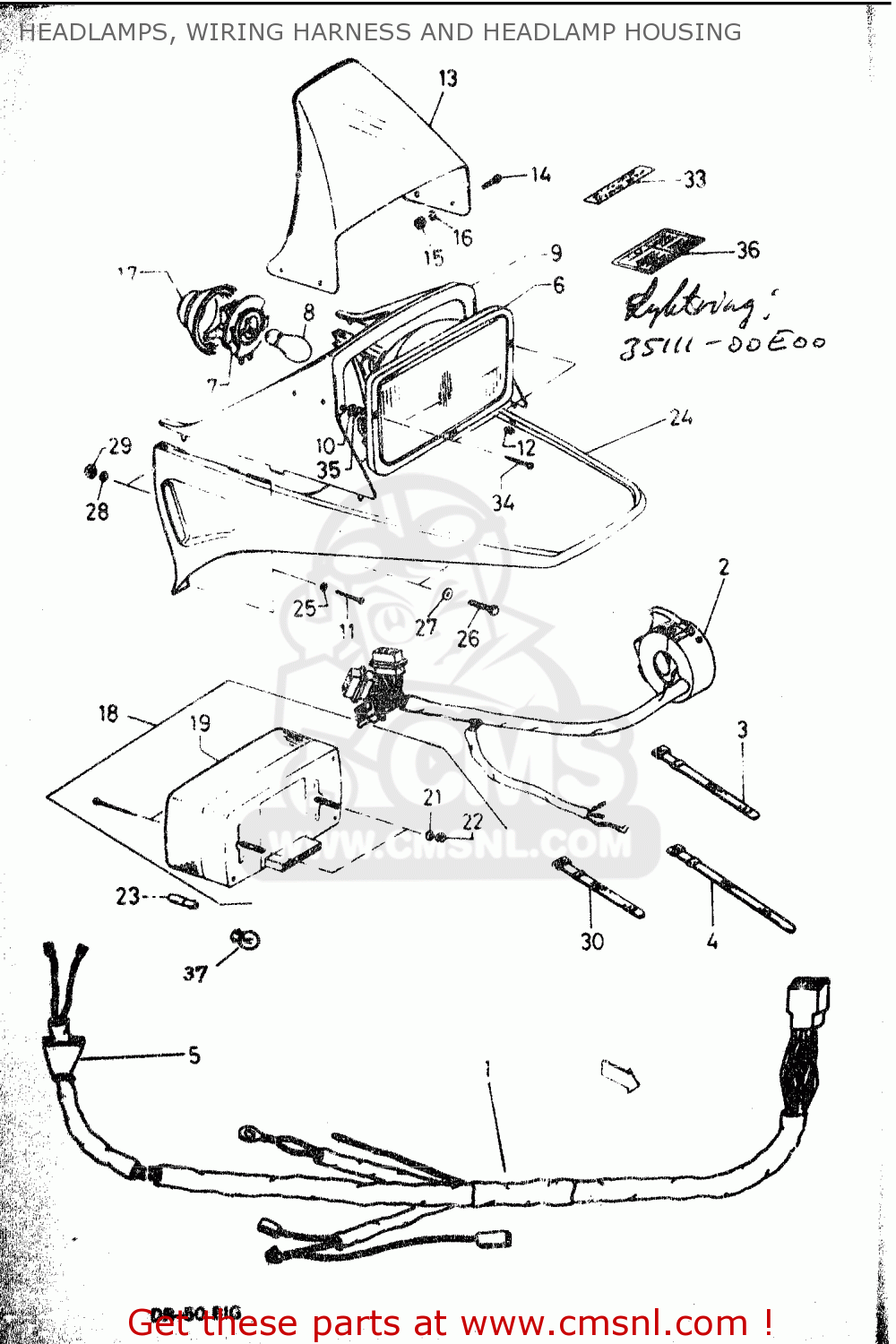

HEADLAMPS, WIRING HARNESS AND HEADLAMP HOUSING

ref

part #

description

quantity

1

3610000E20
ref: 1

HARNESS, WIRING

€ 0.00

2

3620000E10
ref: 2

WIRING SWITCH

€ 62.50

3

3569703A50
ref: 3

CLAMP L=138

€ 1.00

4

5611300E00
ref: 4

CLAMP L=170

€ 0.00

5

3612200E00
ref: 5

CAP

€ 0.00

6

3511000E00
ref: 6

UNIT, HEADLAMP ONHE WITHOUT BULB

€ 69.50

7

3517100E00
ref: 7

SOCKET

€ 16.00

8

0947112E01
ref: 8

BULB (12V-25/25W)

€ 24.00

9

5181100E00EE3
ref: 9

WINDOW UNIT LAMP

€ 0.00

10

0914803E00
ref: 10

NUT (NUL 522 4C)

€ 1.00

11

0913203E02
ref: 11

SCREW 3.5X13 DIN 7981

€ 2.50

12

0914804010
ref: 12

NUT

€ 2.00

13

9461100E00
ref: 13

VISOR, METER

€ 28.50

14

0912505E05
ref: 14

SCREW M5X10 DIN 7985/N

€ 3.00

15

0914005301
ref: 15

NUT M5 DIN 934/N

€ 0.00

16

0916405E02
ref: 16

WASHER A5 DIN 137/N

€ 0.00

17

3517200E00
ref: 17

COVER SOCKET

€ 7.50

18

3571100E00
ref: 18

LAMP ASSY, REAR COMBINATION WITHOUT BULB

€ 40.00

19

3571200E00
ref: 19

LENS

€ 0.00

21

0832121068
ref: 21

LOCK WASHER

€ 2.50

22

0831011068
ref: 22

NUT

€ 2.50

23

0947112E02
ref: 23

BULB (12V-4W)

€ 0.00

24-1

5311100E0034S
ref: 24-1

COWLING, FRONT (BLUE)

€ 25.50

24-2

5311100E0025Y
ref: 24-2

COWLING, FRONT (YELLOW)

€ 0.00

24-3

5311100E00BE1
ref: 24-3

COWLING, FRONT (WHITE)

€ 29.00

25

0916004E01
ref: 25

WASHER B4 DIN 125

€ 1.00

26

0910005E02
ref: 26

SCREW M5X15 DIN 933

€ 0.00

27

0916005E03
ref: 27

WASHER 5 DIN 9021

€ 0.00

28

0916005E02
ref: 28

WASHER B135 DIN 125

€ 0.00

29

0831011056
ref: 29

NUT

€ 2.50

30

09407904E1
ref: 30

CLAMP

€ 3.00

33

6823100E00
ref: 33

EMBLEM HELMET

€ 0.00

34

0913203E03
ref: 34

SCREW 3.5X19 DIN 7981

€ 0.00

35

0930603E01
ref: 35

BUSH

€ 1.50

36

6833200E00
ref: 36

LABEL, TIRE AIR PRESSURE

€ 0.00

37

0947112E03
ref: 37

BULB (12V-10W)

€ 0.00

HEADLAMPS, WIRING HARNESS AND HEADLAMP HOUSING

all assemblies
