MAGNETO (MOTOPLAT)

DR50 BIG 1986 (G)

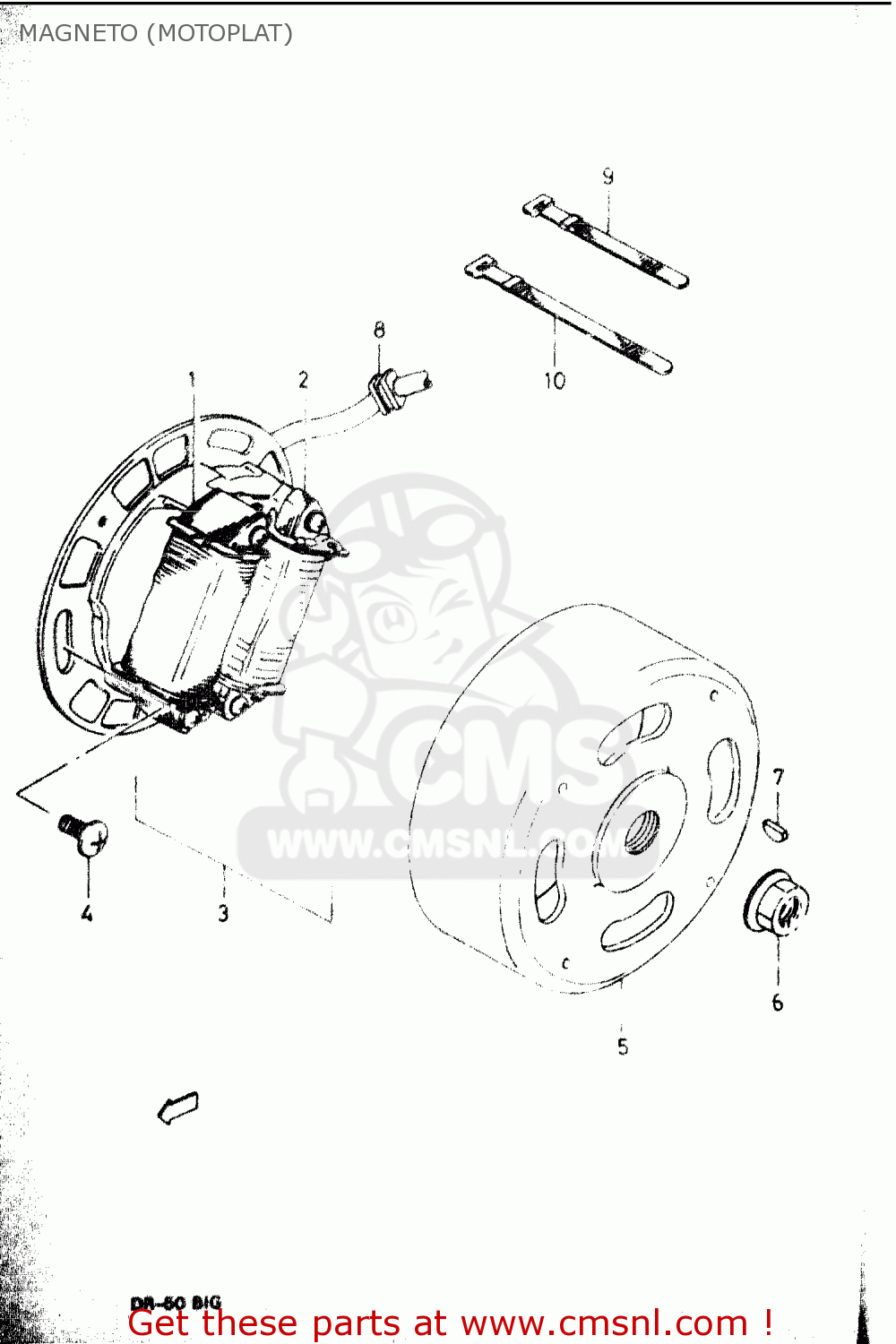

Magneto (motoplat) diagram DR50 BIG 1986 (G)

MAGNETO (MOTOPLAT) DR50 BIG 1986 (G)

MAGNETO (MOTOPLAT) DR50 BIG 1986 (G)

prices are in EUR

ref

part #

description

quantity

0

3210000E20
ref: 0

MAGNETO ASSY

€ 0.00

1

3212000E20
ref: 1

COIL, LIGHTING

€ 0.00

2

3214000E00
ref: 2

COIL, PRIMARY

€ 0.00

3

3215000E00
ref: 3

STATOR ASSY

€ 0.00

4

3231100E00
ref: 4

SCREW

€ 0.00

5

3212100E00
ref: 5

ROTOR

€ 0.00

6

3231200E00
ref: 6

NUT

€ 0.00

7

127005
ref: 7

KEY

€ 2.50

8

3233100E00
ref: 8

CUSHION

€ 0.00

9

3569703A50
ref: 9

CLAMP L=138

€ 1.00

10

5611300E00
ref: 10

CLAMP L=170

€ 0.00
