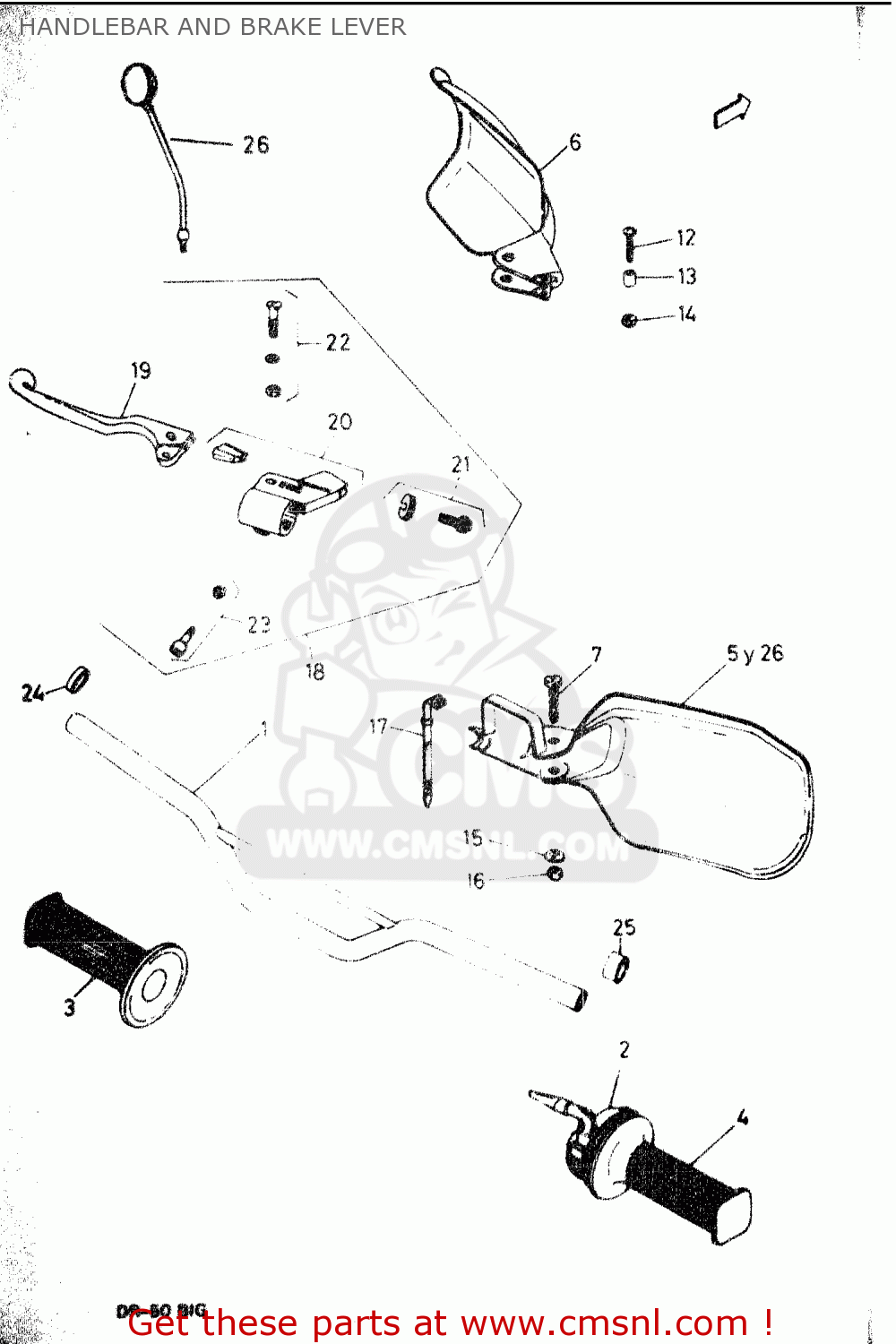

HANDLEBAR AND BRAKE LEVER

ref

part #

description

quantity

1

5611000E00EE3
ref: 1

HANDLEBAR (BLACK)

€ 0.00

2

5710000E00
ref: 2

CASE ASSY, THROTTLE

€ 0.00

3

5721100E00
ref: 3

GRIP, LH

€ 3.50

4

5711200E00
ref: 4

GRIP, RH

€ 0.00

5-1

5734100E0034S
ref: 5-1

GUARD, KNUCKLE RH (BLUE)

€ 21.00

5-2

5734100E0025Y
ref: 5-2

GUARD, KNUCKLE RH (YELLOW)

€ 21.00

5-3

5734100E00BE1
ref: 5-3

GUARD, KNUCKLE RH (WHITE)

€ 21.00

6-1

5754100E0034S
ref: 6-1

GUARD, KNUCKLE RL (BLUE)

€ 0.00

6-2

5754100E0025Y
ref: 6-2

GUARD, KNUCKLE RL (YELLOW)

€ 21.00

6-3

5754100E00BE1
ref: 6-3

GUARD, KNUCKLE RL (WHITE)

€ 21.00

7

0912306E02
ref: 7

SCREW M6X45 DIN 84

€ 0.00

12

5781400E00
ref: 12

SCREW AM 5X20 DIN 7985

€ 0.00

13

5781500E00
ref: 13

SPACER

€ 0.00

14

0914005E01
ref: 14

NUT M5 DIN 934

€ 0.00

15

0916006E01
ref: 15

WASHER B6 DIN 125

€ 0.00

16

0914006E02
ref: 16

NUT M6 DIN 985

€ 0.00

17

5611300E00
ref: 17

CLAMP L=170

€ 0.00

18

5761004E00
ref: 18

LEVER ASSY RL

€ 20.00

19

5761104E00
ref: 19

LEVER RL

€ 24.00

20

5761204E00
ref: 20

GRIP SUPPORT RL

€ 0.00

21

5762000E00
ref: 21

SLEEVE NUT

€ 0.00

22

5764004E00
ref: 22

SCREW JET

€ 14.00

23

5766004E00
ref: 23

SCREW JET

€ 0.00

24

0918023E01E0N
ref: 24

SPACER

€ 0.00

25

0918023E03E0N
ref: 25

SPACER

€ 0.00

26

5650000E00
ref: 26

MIRROR ASSY

€ 18.00
