STAND AND PEDAL BRAKE

DR50 BIG 1986 (G)

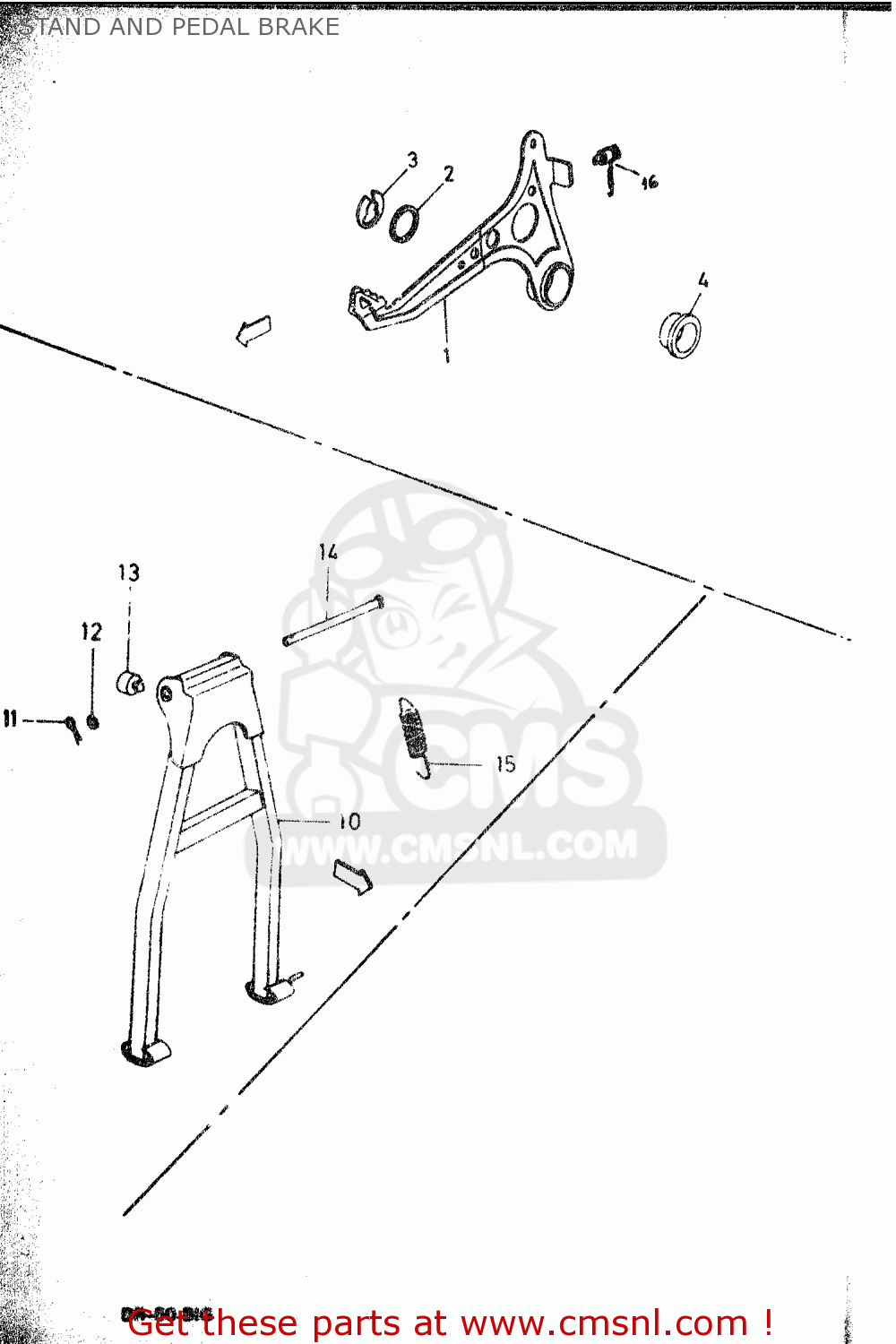

Stand and pedal brake diagram DR50 BIG 1986 (G)

STAND AND PEDAL BRAKE DR50 BIG 1986 (G)

STAND AND PEDAL BRAKE DR50 BIG 1986 (G)

prices are in EUR

ref

part #

description

quantity

1

4310900E02E91
ref: 1

PEDAL, BRAKE

€ 19.00

2

0916016E01
ref: 2

WASHER (16.1X25.6X2)

€ 0.00

3

0833131168
ref: 3

E RING (E 16 DIN 471)

€ 2.00

4

9113200E00
ref: 4

BUSH PLASTIC

€ 10.00

10

4210000E01E91
ref: 10

CENTER STAND

€ 82.00

11

0920403E01
ref: 11

SPRING PIN (3X20 DIN 94)

€ 0.00

12

0916010E02
ref: 12

PLAIN WASHER B10 DIN 433

€ 0.00

13

4228105E01
ref: 13

CUSHION

€ 3.50

14

4221105E00E0Z
ref: 14

BOLT

€ 14.00

15

4212100E10E0Z
ref: 15

SPRING

€ 0.00

16

3774000E00
ref: 16

SWITCH, REAR BRAKE

€ 0.00
