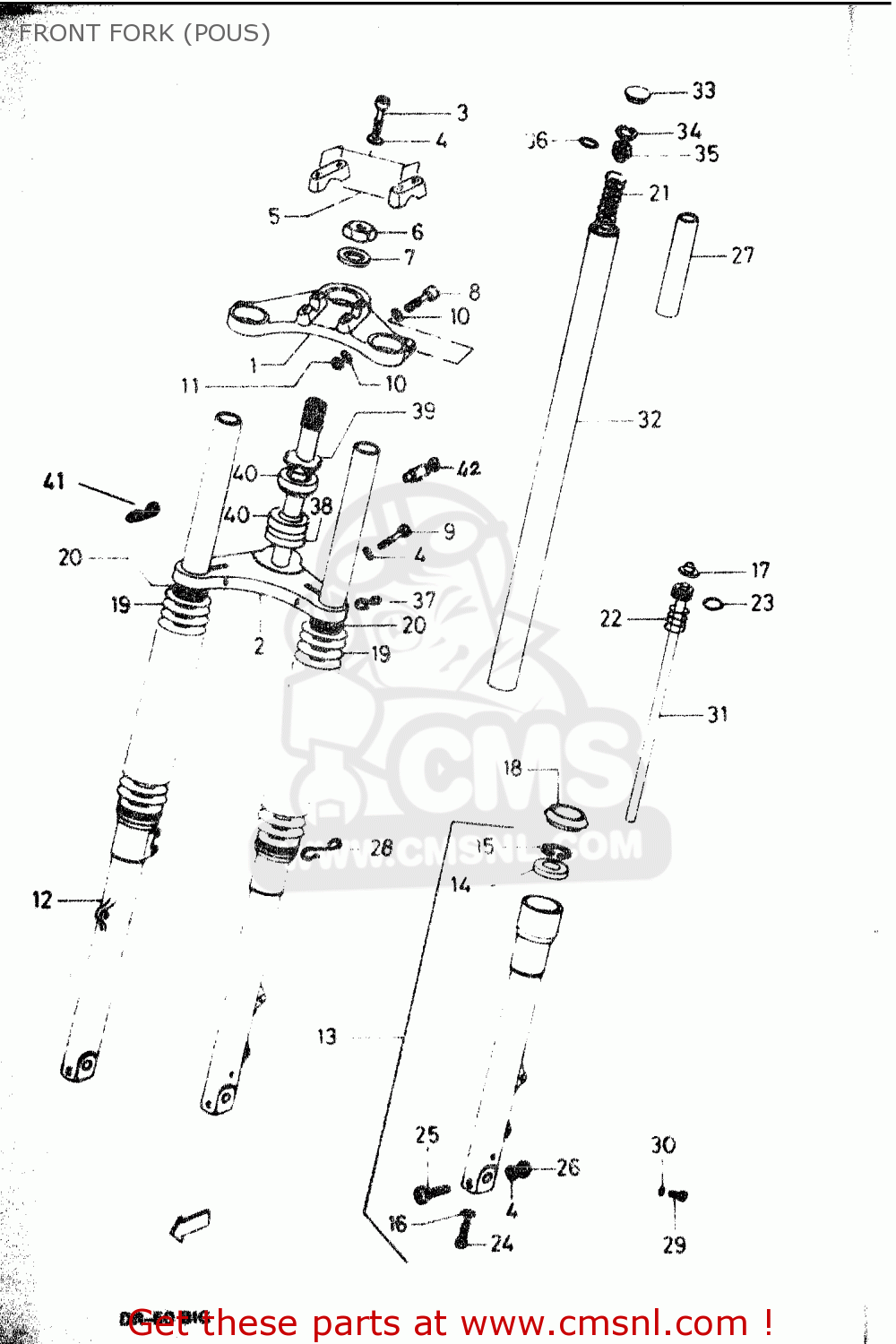

FRONT FORK (POUS)

ref

part #

description

quantity

0

5100000E1034S
ref: 0

FRONT FORK ASSY (BOOT, BLUE)

€ 0.00

0

5100000E1025Y
ref: 0

FRONT FORK ASSY (BOOT, YELLOW)

€ 0.00

1

5131100E00
ref: 1

BRACKET, UPPER

€ 0.00

2

5141000E10
ref: 2

STEM, STEERING

€ 173.50

3

0910608E08
ref: 3

SCREW M8X40 DIN 912 8.8

€ 0.00

4

0916008E01
ref: 4

WASHER B8 DIN 125

€ 0.00

5

5144200E00
ref: 5

HOLDER, HANDLE UPPER

€ 10.50

6

5163400E00
ref: 6

NUT

€ 0.00

7

5163200E00
ref: 7

WASHER

€ 0.00

8

0910608E01
ref: 8

SCREW M8X50 DIN 912

€ 4.00

9

0910608E04
ref: 9

BOLT

€ 1.50

10

5163300E00
ref: 10

WASHER

€ 0.00

11

0914008E01
ref: 11

NUT M8 DIN 934

€ 0.00

12

5110300E00EE3
ref: 12

DAMPER ASSY, RH

€ 87.50

13

5110400E00EE3
ref: 13

DAMPER ASSY, LH

€ 116.50

14

5115300E00
ref: 14

OIL SEAL

€ 0.00

15

5115600E00
ref: 15

SNAP RING SB 40

€ 0.00

16

5114800E00
ref: 16

WASHER

€ 0.00

17

5115200E00
ref: 17

BUSH

€ 10.50

18

5117300E00
ref: 18

CAP

€ 2.50

19-1

5157100E0034S
ref: 19-1

BOOT (BLUE)

€ 9.50

19-2

5157100E0025Y
ref: 19-2

BOOT (YELLOW)

€ 0.00

20

5157200E00
ref: 20

BAND, BOOT UPPER

€ 0.00

21

5117100E00
ref: 21

SPRING

€ 0.00

22

5117700E00
ref: 22

SPRING

€ 0.00

23

5112100E00
ref: 23

O RING

€ 0.00

24

0910608E02
ref: 24

SCREW M8X20 DIN 912

€ 0.00

25

0910608E01
ref: 25

SCREW M8X50 DIN 912

€ 4.00

26

0831921088
ref: 26

NUT

€ 1.50

27

5144100E00
ref: 27

SPACER

€ 10.50

28

5312200E11E0Z
ref: 28

GUIDE, LOWER

€ 0.00

29

0912304E01
ref: 29

SCREW M4X6 DIN 84

€ 0.00

30

5111100E00
ref: 30

O RING

€ 0.00

31

5111000E00
ref: 31

CYLINDER ASSY

€ 0.00

32

5121000E00
ref: 32

TUBE, INNER

€ 92.00

33

5118900E00
ref: 33

CAP

€ 3.00

34

5116900E00
ref: 34

SNAP RING JV 26

€ 2.00

35

5117900E00
ref: 35

GUIDE SPRING

€ 2.50

36

5118100E00
ref: 36

O RING

€ 1.50

37

5163100E01E0Z
ref: 37

GUIDE, UPPER

€ 0.00

38

5162200E00E0Z
ref: 38

RACE, STEERING OUTER LOWER

€ 11.50

39

5162100E01E0Z
ref: 39

RACE, STEERING OUTER UPPER

€ 0.00

40

5161100E00E0Z
ref: 40

RACE, STEERING INNER

€ 0.00

41

5163200E00E0Z
ref: 41

GUIDE, SPEEDOMETER CABLE

€ 0.00

42

9570900E00
ref: 42

LOCK SET, STEERING

€ 0.00

42

6800000E0034S
ref: 42

LABEL ASSY DR-50 (BLUE)

€ 0.00

42

6800000E0025Y
ref: 42

LABEL ASSY DR-50 (YELLOW)

€ 0.00

42

6800000E00BE1
ref: 42

LABEL ASSY DR-50 (WHITE)

€ 38.50

1-1

6150000E0134S
ref: 1-1

EMBLEM SUZUKI

€ 0.00

1-2

6150000E01BE1
ref: 1-2

EMBLEM SUZUKI

€ 0.00

2

6881200E00BE1
ref: 2

EMBLEM DR

€ 5.00

3

6881300E00BE1
ref: 3

EMBLEM BIG 50

€ 0.00

4-1

6882000E0034S
ref: 4-1

EMBLEM COVER FUEL TANK UPPER RH

€ 0.00

4-2

6882000E00BE1
ref: 4-2

EMBLEM COVER FUEL TANK UPPER RH

€ 0.00

5-1

6881400E0034S
ref: 5-1

EMBLEM COVER FUEL TANK UPPER RL

€ 0.00

5-2

6881400E00BE1
ref: 5-2

EMBLEM COVER FUEL TANK UPPER RL

€ 0.00

6-1

6882200E0034S
ref: 6-1

EMBLEM COVER FUEL TANK LOWER RH

€ 0.00

6-2

6882200E0025Y
ref: 6-2

EMBLEM COVER FUEL TANK LOWER RH

€ 0.00

7-1

6881600E0034S
ref: 7-1

EMBLEM COVER FUEL TANK LOWER RL

€ 0.00

7-2

6881600E0025Y
ref: 7-2

EMBLEM, COVER FUEL TANK LOWER RL

€ 0.00

8

6881800E00BE1
ref: 8

EMBLEM DUAL SPORT

€ 3.00

9-1

6882400E0034S
ref: 9-1

EMBLEM, COVER FRAME RH

€ 0.00

9-2

6882400E00BE1
ref: 9-2

EMBLEM, COVER FRAME RH

€ 0.00

9-3

6882400E0025Y
ref: 9-3

EMBLEM, COVER FRAME RH

€ 0.00

10-1

6881900E0034S
ref: 10-1

EMBLEM, COVER FRAME RL

€ 0.00

10-2

6881900E00BE1
ref: 10-2

EMBLEM, COVER FRAME RL

€ 0.00

10-3

6881900E0025Y
ref: 10-3

EMBLEM, COVER FRAME RL

€ 0.00

11-1

6881700E0034S
ref: 11-1

EMBLEM, COVER FUEL TANK LOWER REAR, RL

€ 0.00

11-2

6881700E0025Y
ref: 11-2

EMBLEM, COVER FUEL TANK LOWER REAR, RL

€ 0.00

12-1

6882300E0034S
ref: 12-1

EMBLEM, COVER FUEL TANK LOWER REAR, RH

€ 0.00

12-2

6882300E0025Y
ref: 12-2

EMBLEM, COVER FUEL TANK LOWER REAR RH

€ 0.00

13-1

6881500E0034S
ref: 13-1

EMBLEM, COVER FUEL TANK UPPER REAR, RL

€ 0.00

13-2

6881500E00BE1
ref: 13-2

EMBLEM, COVER FUEL TANK UPPER REAR, RL

€ 0.00

14-1

6882100E0034S
ref: 14-1

EMBLEM, COVER FUEL TANK UPPER REAR, RH

€ 0.00

14-2

6882100E00BE1
ref: 14-2

EMBLEM, COVER FUEL TANK UPPER REAR, RH

€ 0.00
