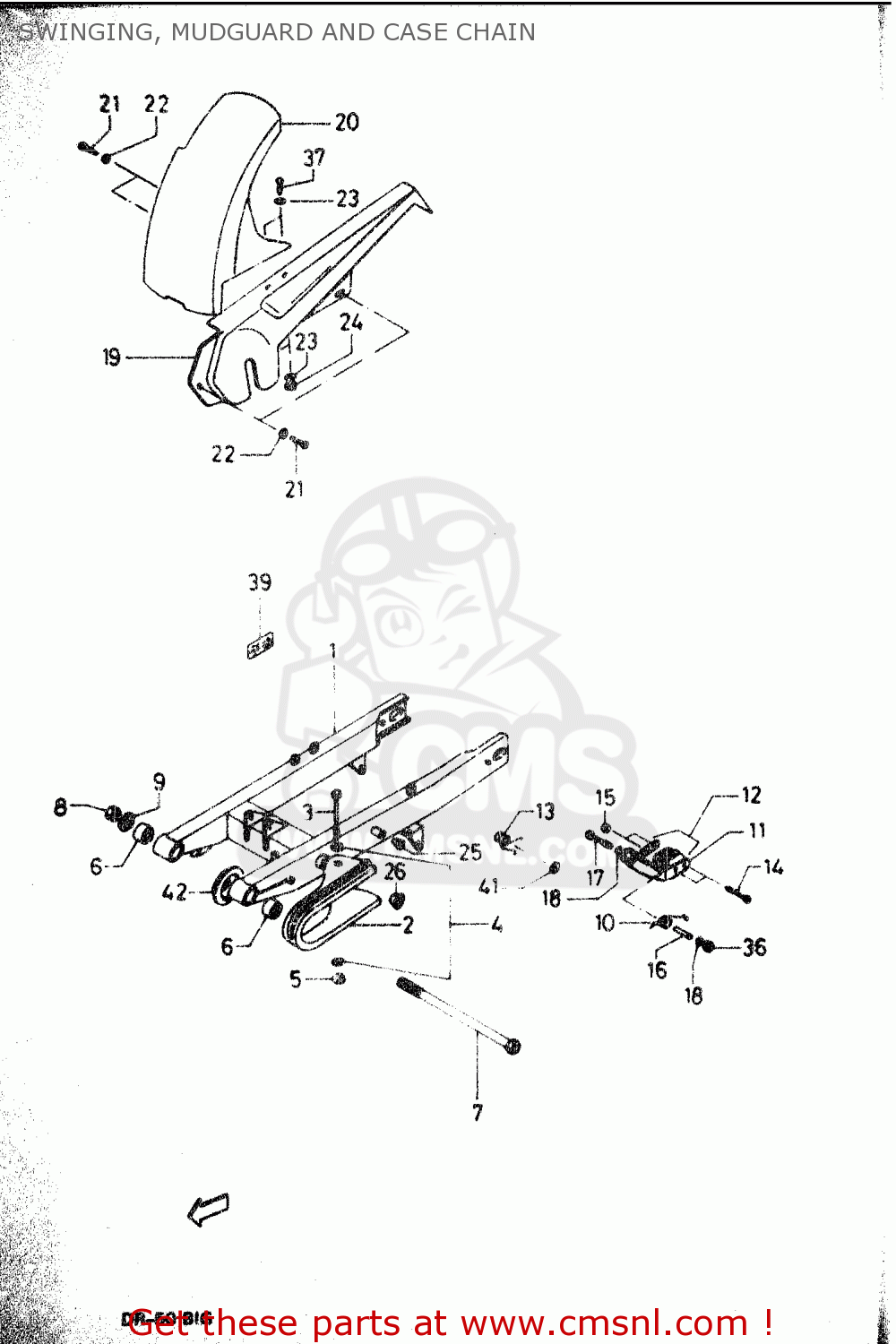

SWINGING, MUDGUARD AND CASE CHAIN

ref

part #

description

quantity

1

6100000E1091
ref: 1

SWINGING ARM ASSY, REAR (SILVER)

€ 0.00

2

6113200E00
ref: 2

BUFFER, CHAIN TOUCH DEFENSE

€ 7.00

3

0910006E05
ref: 3

SCREW M6X60 DIN 931

€ 0.00

4

0916006E02
ref: 4

WASHER 6 DIN 9021

€ 0.00

5

0914006E02
ref: 5

NUT M6 DIN 985

€ 0.00

6

6113300E00
ref: 6

FLEXIBLOC

€ 9.00

7

6121034BA0E0N
ref: 7

SHAFT

€ 0.00

8

0914012E03
ref: 8

NUT

€ 2.00

9

0916012E01
ref: 9

WASHER B12 DIN 125

€ 0.50

10

6134100E00
ref: 10

GUIDE,CHAIN

€ 8.50

11

6134200E00E0Z
ref: 11

GUIDE,CHAIN

€ 16.00

12

6134500E00
ref: 12

ROLLER, CHAIN

€ 5.00

13

6134600E00
ref: 13

SPRING, CYCLE CHAIN TENSIONER

€ 3.00

14

0910004E02
ref: 14

SCREW M4X30 DIN 933

€ 0.00

15

0831011046
ref: 15

NUT M4 DIN 985

€ 2.00

16

0918006060E0Z
ref: 16

SPACER

€ 2.00

17

0910006E06
ref: 17

SCREW M6X30 DIN 931

€ 0.00

18

0916006E01
ref: 18

WASHER B6 DIN 125

€ 0.00

19

6131100E00EE3
ref: 19

CASE, CHAIN

€ 58.00

20

6211100E00EE3
ref: 20

MUDGUARD, REAR

€ 0.00

21

0214205125
ref: 21

SCREW M5X12 DIN 7985/N

€ 1.50

22

0916005E03
ref: 22

WASHER 5 DIN 9021

€ 0.00

23

0916005E04
ref: 23

WASHER B5 DIN 125

€ 0.00

24

0831011056
ref: 24

NUT

€ 2.50

36

0914006E02
ref: 36

NUT M6 DIN 985

€ 0.00

37

0912505E06
ref: 37

SCREW M5X15 DIN 7985

€ 0.00

39

6821100E01
ref: 39

ADHESIVE, CHAIN

€ 0.00

40

0833131168
ref: 40

E RING (E 16 DIN 471)

€ 2.00

41

0916016E01
ref: 41

WASHER (16.1X25.6X2)

€ 0.00

42

4136600E00E0N
ref: 42

FINISHING WASHER

€ 0.00

SWINGING, MUDGUARD AND CASE CHAIN

all assemblies
