BATTERY

DR650R 1993 (P) (E04 E17 E18 E21 E22 E24 E34 E53)

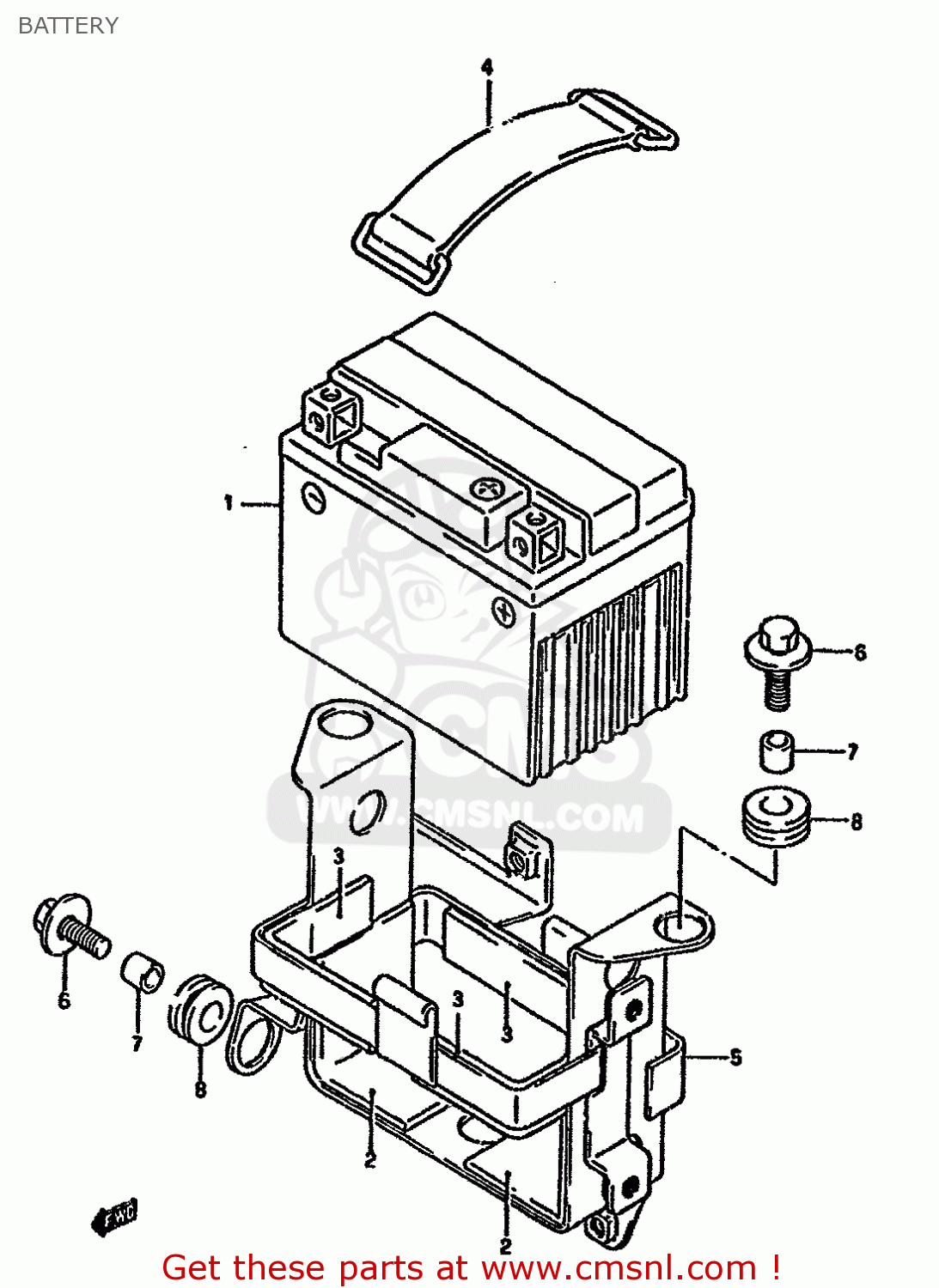

Battery diagram DR650R 1993 (P) (E04 E17 E18 E21 E22 E24 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

3361014D20
ref: 1-1

BATTERY ASSY (12V) YT4L-BS

€ 40.00

1-2

3361003D00
ref: 1-2
E24

BATTERY,YT4L-B

€ 40.00

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

0946200008
ref: 4

BAND

€ 4.50

4154012E00
ref: 5

HOLDER COMP,BATTERY

€ 59.00

0911606056
ref: 6

BOLT

€ 2.00

0918006038
ref: 7

SPACER(6.1X9X7.5)

€ 2.00

0932008021
ref: 8

CUSHION

€ 4.00
