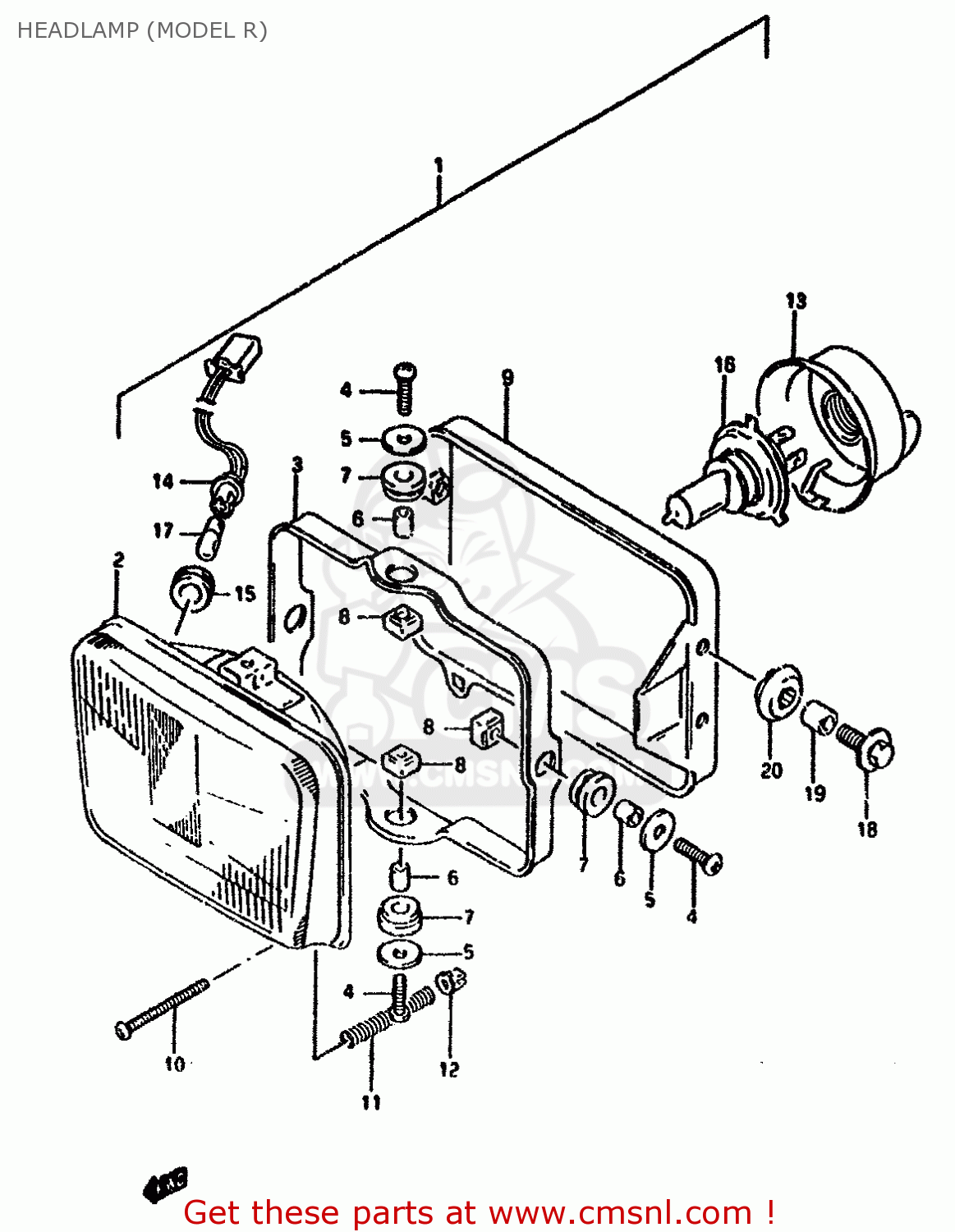

HEADLAMP (MODEL R)

ref

part #

description

quantity

1

3510012E40999
ref: 1

HEADLAMP ASSY

€ 323.50

2

3512112E40
ref: 2

UNIT ASSY

€ 232.00

3

3513012E20
ref: 3

RING,MOUNTING

€ 37.50

4

3515131D00
ref: 4

SCREW,HEADLAMP ADJUST

€ 2.00

5

3513845230
ref: 5

WASHER

€ 2.00

6

3513345230
ref: 6

SPACER

€ 2.00

7

3513945230
ref: 7

CUSHION

€ 1.50

8

3513545900
ref: 8

NUT

€ 2.50

9

3514112E20
ref: 9

HOUSING

€ 71.00

10

3515112E20
ref: 10

SCREW,HEADLAMP ADJUST

€ 3.00

11

3515412E20
ref: 11

SPRING,ADJUSTING

€ 2.00

12

3513512E20
ref: 12

NUT,ADJUSTING

€ 2.50

13

3517301440
ref: 13

COVER,SOCKET

€ 10.00

14

3611812E20
ref: 14

CORD,POSITION

€ 23.50

15

3611622630
ref: 15

JOINT,RUBBER

€ 5.00

16

0947112063
ref: 16

BULB(12V4W)

€ 6.00

17

0947112060
ref: 17

BULB(12V60/55W,H4)

€ 8.00

18

0911606011
ref: 18

BOLT 6X20

€ 2.00

19

0918006030
ref: 19

SPACER (6.8X10X10)

€ 2.00

20

0932009018
ref: 20

CUSHION

€ 2.00

16

0947112063
ref: 16

BULB(12V4W)

€ 6.00

17-1

0947112060
ref: 17-1

BULB(12V60/55W,H4)

€ 8.00

17-2

0947112061
ref: 17-2
E4

BULB (12V, 60/55W, H4)

€ 0.00

18

0911606011
ref: 18

BOLT 6X20

€ 2.00

19

0918006030
ref: 19

SPACER (6.8X10X10)

€ 2.00

20

0932009018
ref: 20

CUSHION

€ 2.00

all assemblies
