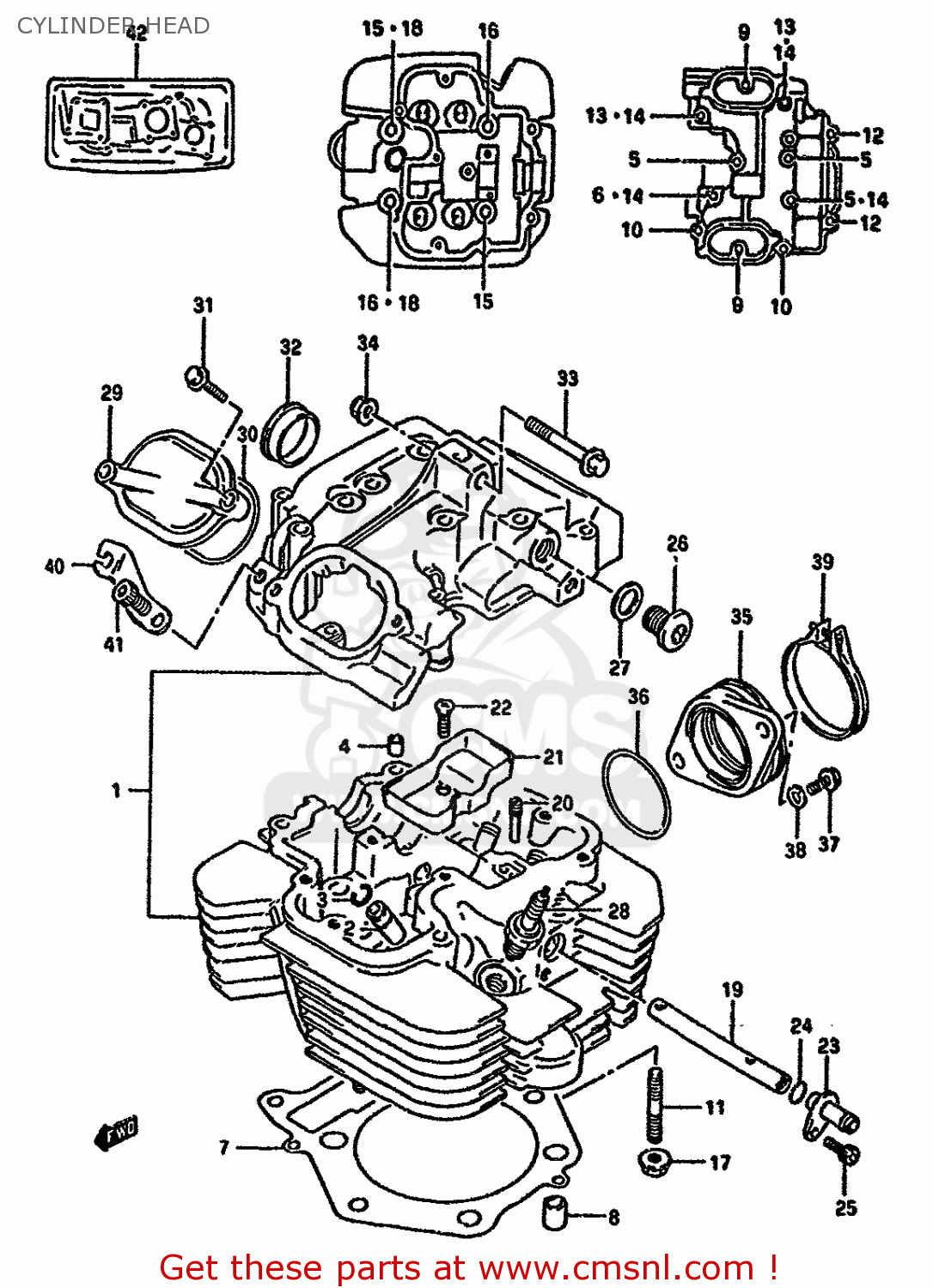

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110012D60
ref: 1-1

HEAD ASSEMBLY,CYLINDER

€ 1,267.00

1-2

1110012D70
ref: 1-2
E18

HEAD ASSY,CYLINDER

€ 789.50

2

1111537470
ref: 2

GUIDE,VALVE

€ 20.00

3

0938110003
ref: 3

RING,SNAP

€ 2.50

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

0151706608
ref: 5

BOLT (6X60)

€ 2.50

6

0910306151
ref: 6

BOLT 6X55

€ 7.00

7

1114112D00
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 44.50

8

0920613001
ref: 8

PIN

€ 2.50

9-1

0151706257
ref: 9-1
MODEL N/P

BOLT 6X25

€ 2.50

9-2

0155006253
ref: 9-2
MODEL R

BOLT

€ 2.50

10-1

0151706408
ref: 10-1
MODEL N/P

BOLT

€ 2.50

10-2

0155006403
ref: 10-2
MODEL R

BOLT

€ 2.00

11

0910808161
ref: 11

STUD

€ 3.50

12

0910306150
ref: 12

BOLT

€ 4.50

13

0151706608
ref: 13

BOLT (6X60)

€ 2.50

14

0916806028
ref: 14

GASKET (NAS)

€ 2.00

15

0910310179
ref: 15

BOLT(10X190)

€ 12.50

16

0910310181
ref: 16

BOLT(10X215)

€ 17.50

17-1

0831616088
ref: 17-1
MODEL N/P

NUT

€ 2.50

17-2

0831610083
ref: 17-2
MODEL R

NUT

€ 3.00

18

0916810017
ref: 18

GASKET(10.5X22X2) (NAS)

€ 3.50

19

1113112D00
ref: 19

PIPE,CYLINDER HEAD OIL

€ 12.00

20

0913406012
ref: 20

SCREW (L:19.5)

€ 3.00

21

1113512D00
ref: 21

PLATE,CYLINDER HEAD CHAMBER

€ 3.50

22

0211206103
ref: 22

SCREW

€ 1.50

23

1119012D01
ref: 23

UNION,CYLINDER HEAD OIL

€ 16.50

24

1114306B00
ref: 24

O RING,HEAD GASKET

€ 8.00

25-1

0711006165
ref: 25-1
MODEL N/P

BOLT

€ 3.00

25-2

0713006167
ref: 25-2
MODEL R

BOLT

€ 3.00

26

0924814010
ref: 26

PLUG

€ 5.00

27

0916814002
ref: 27

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

28-1

0948200330
ref: 28-1

PLUG,SPARK(DPR9EA-9)

€ 4.00

28-2

0948200331111
ref: 28-2

SPARK PLUG X27EPR-U9

€ 4.00

28-3

0948200328
ref: 28-3
E34

SPARK PLUG DP9EA-9

€ 4.00

28-4

0948200329111
ref: 28-4
E34

SPARK PLUG X27EP-U9

€ 4.00

29

1117512D10
ref: 29

CAP,INSPECTION

€ 16.00

30

0928060004
ref: 30

O RING(D:2.4,ID:23)

€ 4.50

31-1

0151706207
ref: 31-1
MODEL N/P

BOLT 6X20

€ 2.50

31-2

0155006203
ref: 31-2
MODEL R

BOLT

€ 2.50

32

0924130004
ref: 32

PLUG(OD:30)

€ 6.50

33

0910308290
ref: 33

BOLT 8X53

€ 3.50

34

0831931085
ref: 34

NUT

€ 2.50

35

1311012D00
ref: 35

PIPE,INTAKE

€ 32.50

36

0928046002
ref: 36

O RING(D:2.4,ID:45.7)

€ 9.50

37-1

0712006205
ref: 37-1
MODEL N/P

PLUG ,6X20

€ 3.50

37-2

0712006203
ref: 37-2
MODEL R

BOLT

€ 3.50

38-1

0832131064
ref: 38-1
MODEL N/P

WASHER

€ 2.00

38-2

0832101063
ref: 38-2
MODEL R

LOCK WASHER

€ 2.00

39

0940258207
ref: 39

CLAMP

€ 5.50

40

1294414A00
ref: 40

LEVER,DECOMP SHAFT RH

€ 6.50

41-1

0711008165
ref: 41-1
MODEL N/P

BOLT

€ 3.00

41-2

0713008167
ref: 41-2
MODEL R

BOLT

€ 3.00

42

1140012895
ref: 42

GASKET SET (NAS)

€ 146.50

all assemblies
