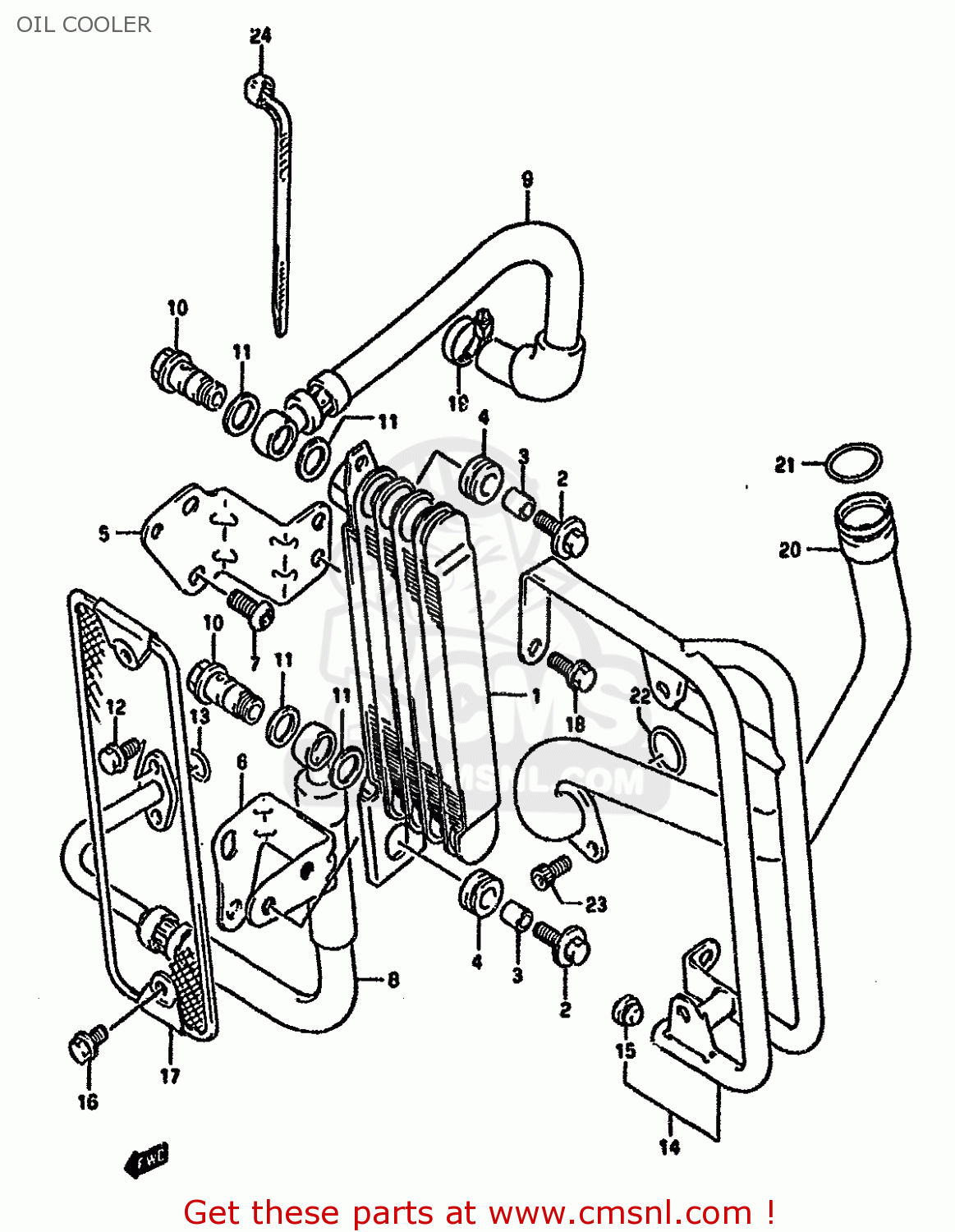

OIL COOLER

ref

part #

description

quantity

1

1660014A10
ref: 1

COOLER ASSEMBLY,OIL

€ 526.50

2

0911606143
ref: 2

BOLT 6X20

€ 2.00

3

0918006030
ref: 3

SPACER (6.8X10X10)

€ 2.00

4

0932010015
ref: 4

CUSHION

€ 2.50

5

1662014A10
ref: 5

BRACKET,OIL COOLER UPR

€ 10.00

6

1663014A10
ref: 6

BRACKET,OIL COOLER,LOWER

€ 10.50

7

0910608116
ref: 7

BOLT(8X12)

€ 2.50

8

1646014A10
ref: 8

HOSE,OIL COOLER NO.1

€ 114.50

9

1647014A10
ref: 9

HOSE,OIL COOLER NO.2

€ 92.00

10

0936012004
ref: 10

BOLT UNION

€ 13.50

11

0916814011
ref: 11

GASKET(14X20X1.5) (NAS)

€ 2.00

12-1

0154706165
ref: 12-1
MODEL N/P

BOLT

€ 2.50

12-2

0154706163
ref: 12-2
MODEL R

BOLT

€ 2.50

13

0928012008
ref: 13

O RING(D:2.4,ID:12.3)

€ 3.00

14

1664014A11
ref: 14

GUARD,OIL COOLER

€ 69.50

15

0925009005
ref: 15

PLUG(OD:13)

€ 0.00

16-1

0151706125
ref: 16-1
MODEL N/P

BOLT 6X12

€ 2.50

16-2

0155006123
ref: 16-2
MODEL R

BOLT

€ 2.50

17

1665014A10
ref: 17

BUMPER,OIL COOLER

€ 26.50

18

0154706127
ref: 18

BOLT

€ 2.00

19

0940215502
ref: 19

CLAMP

€ 8.00

20

1116012D01
ref: 20

PIPE COMP,OIL RETURN

€ 44.50

21

0928022016
ref: 21

O RING(D:3.7,ID:21.7)

€ 5.50

22

0928022010
ref: 22

O RING(D:2.4,ID:23.7)

€ 5.50

23

0711006167
ref: 23

BOLT

€ 3.00

24

0940714403
ref: 24

CLAMP(L:125)

€ 2.50
