STAND-REAR BRAKE

DR650R 1993 (P) (E04 E17 E18 E21 E22 E24 E34 E53)

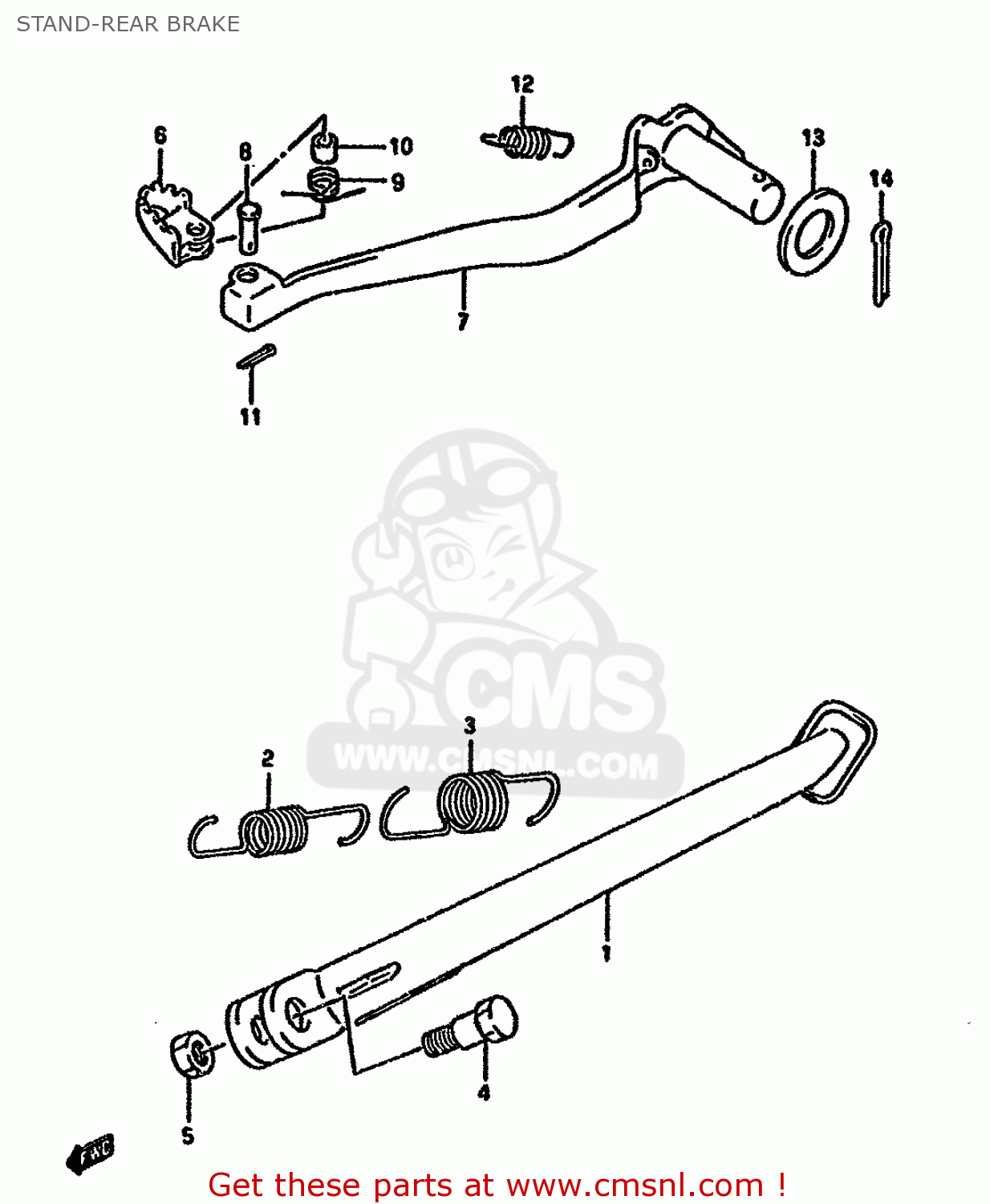

Stand-rear brake diagram DR650R 1993 (P) (E04 E17 E18 E21 E22 E24 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

4231012E000NF
ref: 1-1
MODEL N

STAND,SIDE

€ 85.00

1-2

4231012E000NH
ref: 1-2
MODEL N

STAND,PROP (RED)

€ 85.00

1-3

4231012E00019
ref: 1-3
MODEL P/R

STAND,PROP(BLACK)

€ 85.00

0944314030
ref: 2

SPRING

€ 6.00

0944322003
ref: 3

SPRING

€ 7.00

0911110047
ref: 4

BOLT(10X30)

€ 4.50

5-1

0831022105
ref: 5-1
MODEL N/P

NUT

€ 2.00

5-2

0915910097
ref: 5-2
MODEL R

NUT

€ 5.00

4311014130
ref: 6

PEDAL,BRAKE

€ 6.00

4312012D00
ref: 7

ARM,BRAKE PEDAL

€ 51.50

0920006038
ref: 8

PIN

€ 2.00

0944411004
ref: 9

SPRING

€ 3.00

0918006137
ref: 10

SPACER(9.2X9X6.5)

€ 2.50

0411120158
ref: 11

PIN

€ 1.50

0944310033
ref: 12

SPRING

€ 3.50

0916017021
ref: 13

WASHER (17.6X34X2)

€ 2.00

0411130308
ref: 14

COTTER PIN

€ 1.50

STAND-REAR BRAKE

all assemblies
