FRONT FENDER

DR650R 1993 (P) (E04 E17 E18 E21 E22 E24 E34 E53)

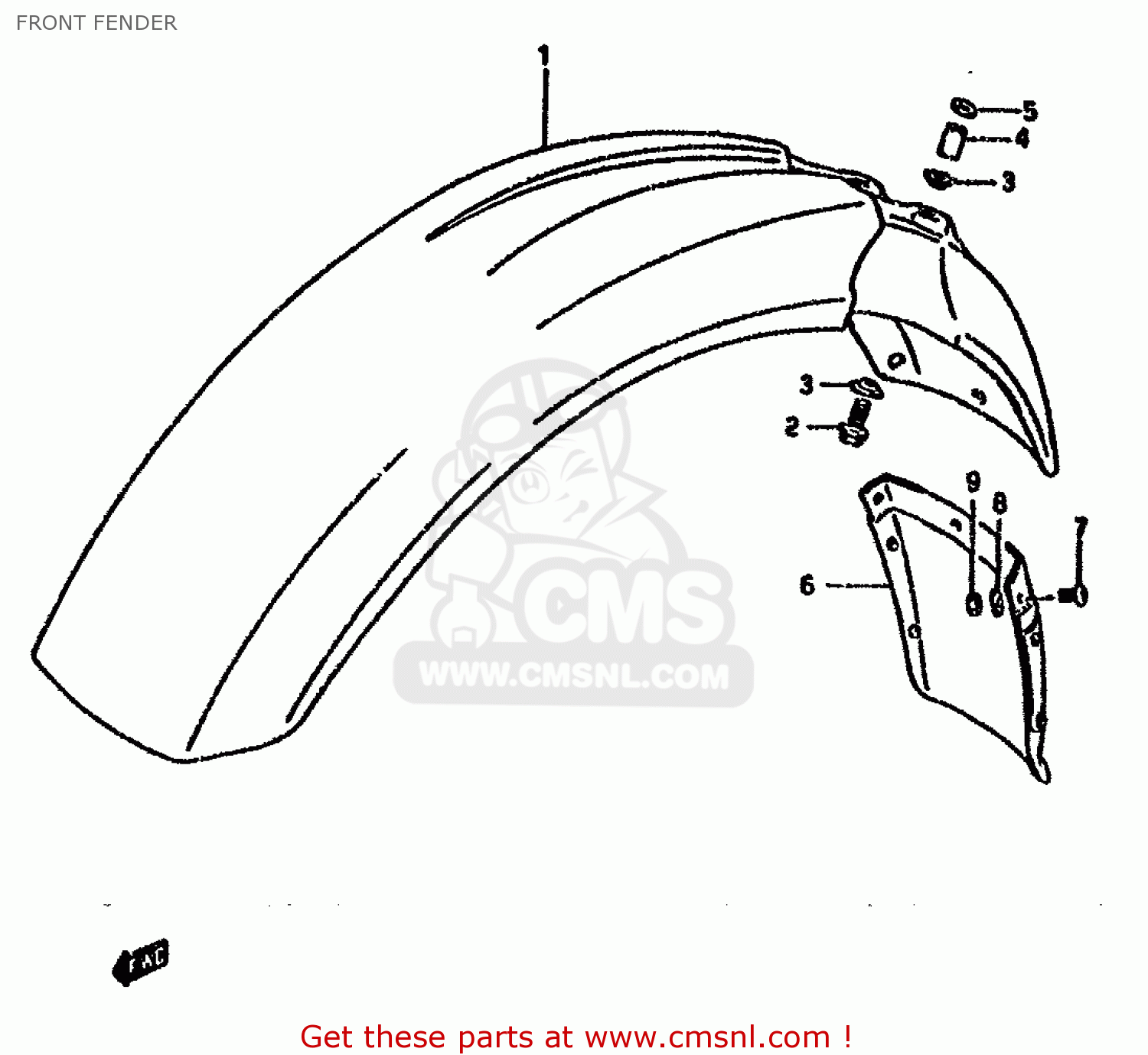

Front fender diagram DR650R 1993 (P) (E04 E17 E18 E21 E22 E24 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

5311114D1130H
ref: 1-1
E2,E4,E21,E25,E34,E5

FENDER,FR

€ 81.50

1-2

5311114D2130H
ref: 1-2
E17,E18,E24

FENDER, FRONT (WHITE)

€ 77.00

1-3

5311114D3130H
ref: 1-3
E22

FENDER,FR

€ 77.00

1-4

5311114D11019
ref: 1-4
MODEL R FOR 019 E4,E

FENDER,FR

€ 55.00

1-5

5311114D31019
ref: 1-5
MODEL R FOR 019 E22

FENDER,FR

€ 77.00

2-1

0151706307
ref: 2-1
MODEL N/P

BOLT

€ 2.00

2-2

0155006303
ref: 2-2
MODEL R

BOLT

€ 2.50

0916906053
ref: 3

WASHER

€ 2.00

0918006110
ref: 4

SPACER (6.8X10X16)

€ 3.00

0916006006
ref: 5

WASHER

€ 2.00

5331014D00
ref: 6
E17,E18,E22,E24

MUD GUARD,FRONT FENDER

€ 38.50

0912505042
ref: 7
E17,E18,E22,E24

SCREW(5X10)

€ 2.50

0916005016
ref: 8
E17,E18,E22,E24

WASHER

€ 1.50

0914005006
ref: 9
E17,E18,E22,E24

NUT

€ 2.00

FRONT FENDER

all assemblies
