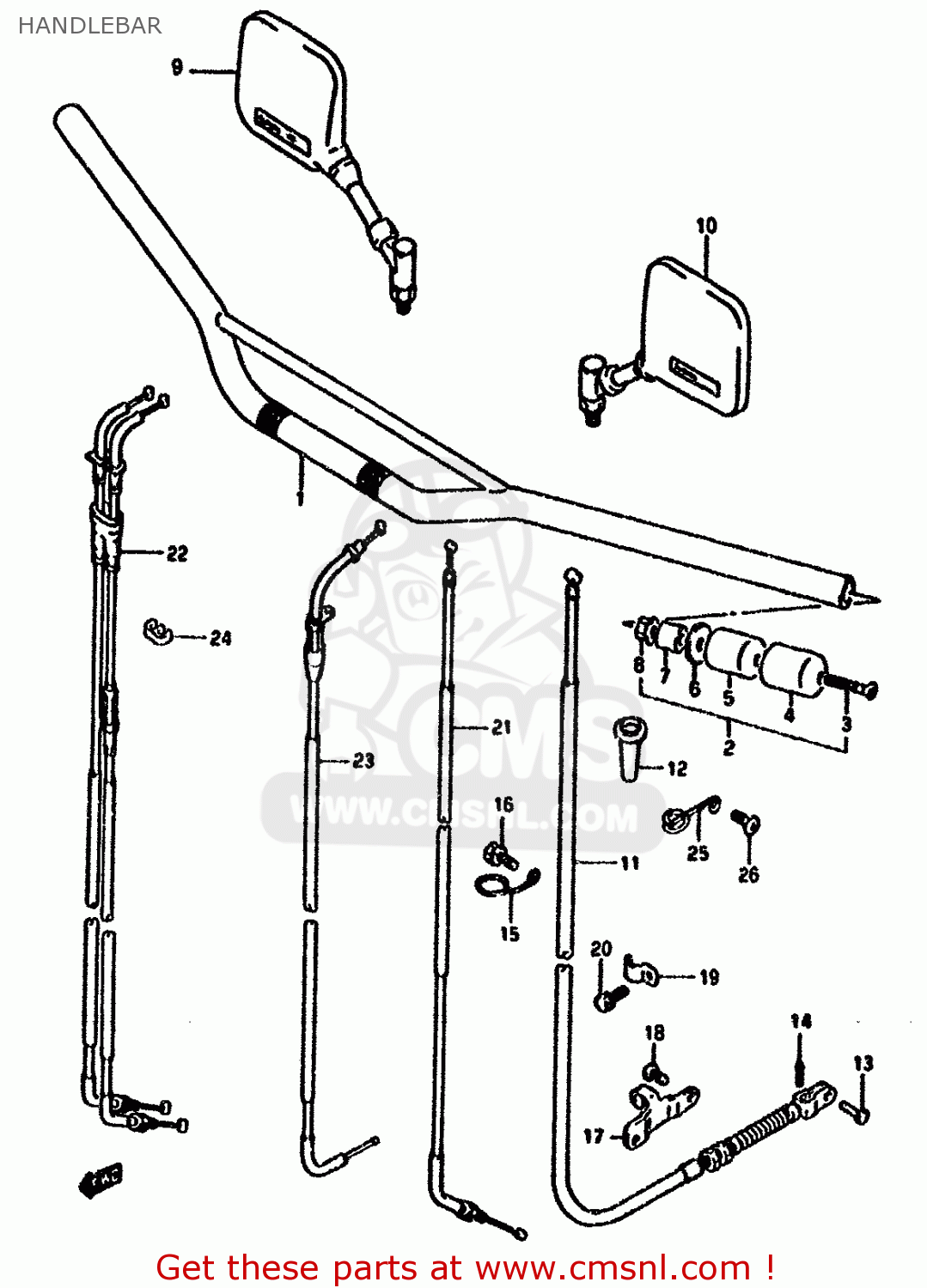

HANDLEBAR

ref

part #

description

quantity

1-1

5611012E00291
ref: 1-1
-56110-12E01-291

HANDLEBAR

€ 116.50

1-2

5611012E01291
ref: 1-2

HANDLEBAR

€ 116.50

2-1

5620036810
ref: 2-1
MODEL N/P

BALANCER SET,HANDLEBAR

€ 88.00

2-2

5620012810
ref: 2-2
MODEL R

BALANCER SET,HANDLEBAR

€ 88.00

3-1

0213206655
ref: 3-1
MODEL N/P

SCREW 6X65

€ 2.50

3-2

0212206653
ref: 3-2
MODEL R

SCREW

€ 2.50

4

5627405350
ref: 4

CAP,BALANCER

€ 223.50

5

5627149420
ref: 5

BALANCER,HANDLE

€ 19.50

6

5627534400
ref: 6

SPACER,BALANCER

€ 2.50

7

5627244500
ref: 7

EXPANDER,HANDLE BALANCER

€ 3.00

8

0915906024
ref: 8

NUT

€ 2.00

9-1

5650012D02
ref: 9-1

MIRROR ASSEMBLY,REAR VIEW

€ 101.50

9-2

5650012D12
ref: 9-2
E24

MIRROR ASSY,RR VIEW,R

€ 101.50

10-1

5660012D02
ref: 10-1

MIRROR ASSEMBLY,REAR VIEW

€ 102.50

10-2

5660012D12
ref: 10-2
E24

MIRROR ASSY,RE

€ 58.00

11

5820012E00
ref: 11

CABLE ASSY,CLUTCH

€ 39.00

12

5827331000
ref: 12

BOOT,CLUTCH CABLE

€ 2.50

13

0920006004
ref: 13

PIN(L:13)

€ 1.50

14

0411120158
ref: 14

PIN

€ 1.50

15

5862117200
ref: 15

GUIDE

€ 5.50

16-1

0113706165
ref: 16-1
MODEL N/P

BOLT

€ 2.50

16-2

0157006163
ref: 16-2
MODEL R

BOLT

€ 2.50

17

5863437410
ref: 17

STOPPER,CLUTCH CABLE

€ 4.50

18-1

0211206125
ref: 18-1
MODEL N/P

SCREW

€ 1.50

18-2

0211206123
ref: 18-2
MODEL R

SCREW

€ 1.50

19

0940309306
ref: 19

CLAMP

€ 2.00

20-1

0151706125
ref: 20-1
MODEL N/P

BOLT 6X12

€ 2.50

20-2

0155006123
ref: 20-2
MODEL R

BOLT

€ 2.50

21

5890012E00
ref: 21

CABLE ASSY,DECOMP

€ 33.50

22

5830012E01
ref: 22

CABLE ASSY,THROTTLE

€ 97.50

23

5841012E00
ref: 23

CABLE,STARTER

€ 39.00

24

0940800066
ref: 24

CLIP

€ 1.50

25

5829427C00
ref: 25

GUIDE,CLUTCH CABLE

€ 8.00

26-1

0215206125
ref: 26-1
MODEL N

SCREW

€ 1.50

26-2

0215206127
ref: 26-2
MODEL P

SCREW

€ 2.00

26-3

0211216123
ref: 26-3
MODEL R

SCREW

€ 2.00
