MAGNETO

DR650R 1993 (P) (E04 E17 E18 E21 E22 E24 E34 E53)

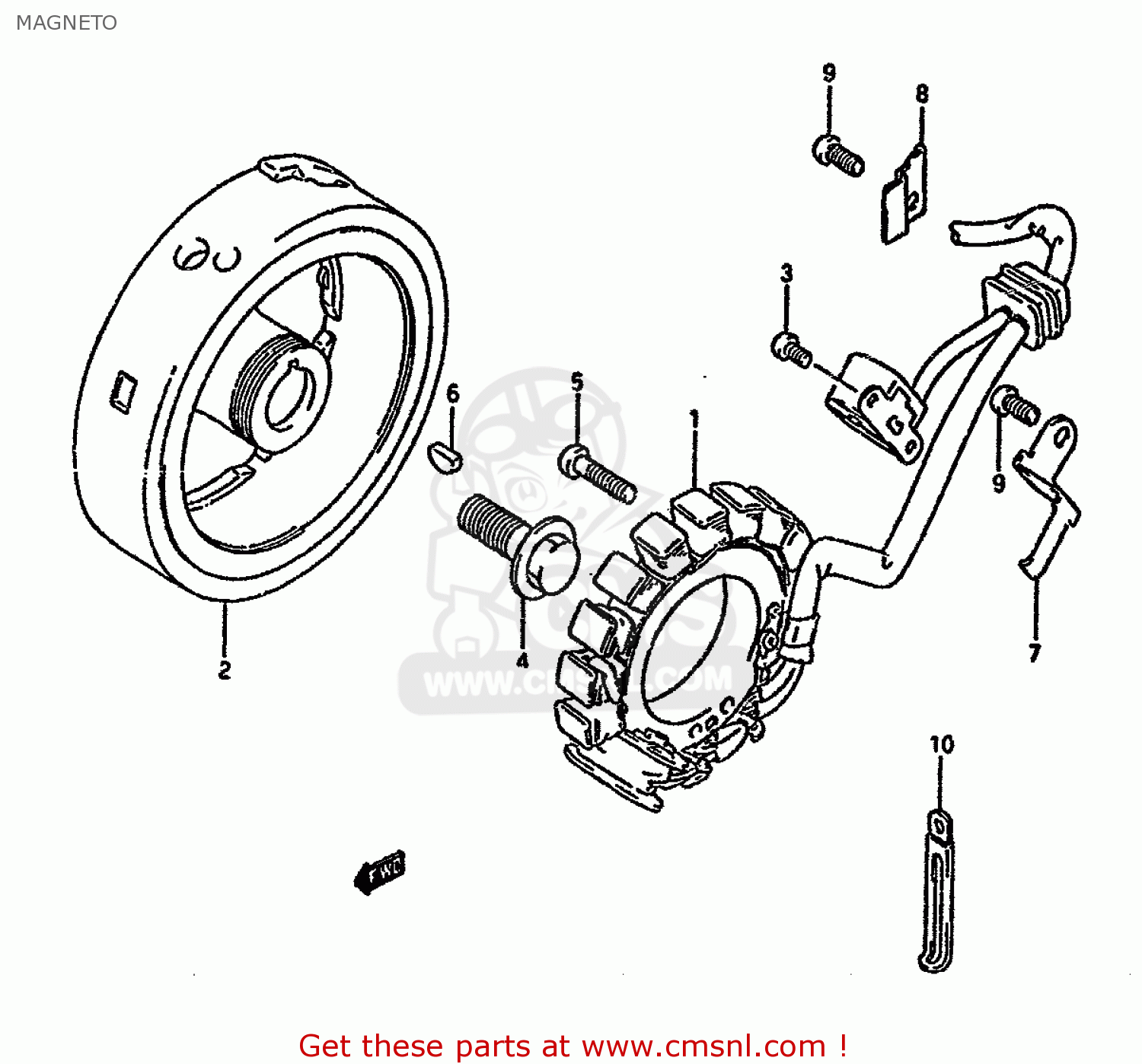

Magneto diagram DR650R 1993 (P) (E04 E17 E18 E21 E22 E24 E34 E53)

MAGNETO DR650R 1993 (P) (E04 E17 E18 E21 E22 E24 E34 E53)

MAGNETO DR650R 1993 (P) (E04 E17 E18 E21 E22 E24 E34 E53)

prices are in EUR

ref

part #

description

quantity

1

3210112D00
ref: 1

STARTER ASSY

€ 799.50

2

3210212D00
ref: 2

ROTOR

€ 449.00

3

0211205128
ref: 3

SCREW

€ 2.50

4

0910314001
ref: 4

BOLT(14X43)

€ 7.00

5

0211206257
ref: 5

SCREW

€ 2.00

6

0834131049
ref: 6

KEY 4MM

€ 3.50

7

3237114A00
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.50

8

3237112D10
ref: 8

CLAMP,MAGNETO LEAD WIRE

€ 2.50

9

0211206108
ref: 9

SCREW

€ 1.50

10

0940406402
ref: 10

CLAMP

€ 2.50
