ELECTRICAL

DR650R 1993 (P) (E04 E17 E18 E21 E22 E24 E34 E53)

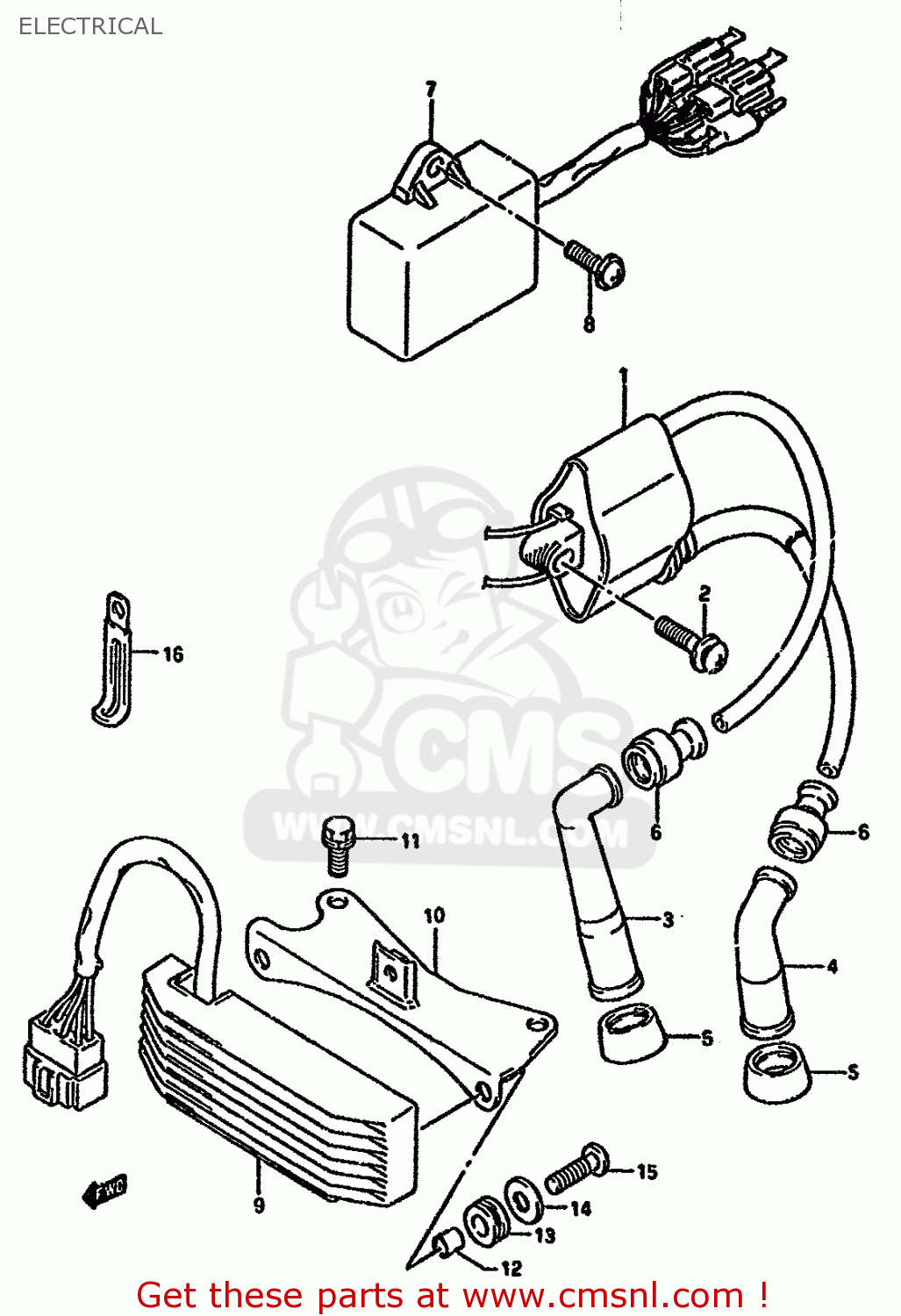

Electrical diagram DR650R 1993 (P) (E04 E17 E18 E21 E22 E24 E34 E53)

prices are in EUR

ref

part #

description

quantity

3341012D00
ref: 1

COIL ASSY,IGNITION

€ 161.50

0211216256
ref: 2

SCREW

€ 1.50

3351045010
ref: 3

CAP ASSY,SPARK PLUG

€ 23.00

3351043010
ref: 4

CAP,SPARK PLUG

€ 11.50

3354124510
ref: 5

SEAL,SPARK PLUG CAP

€ 7.00

3354238B00
ref: 6

SEAL,HIGH TENSION CORD

€ 4.50

3290012D00
ref: 7

CDI UNIT

€ 352.50

0215206168
ref: 8

SCREW

€ 2.00

3280012E00
ref: 9

RECTIFIER ASSEMBLY

€ 368.00

3283012E00
ref: 10

BRACKET,RECTIFIER

€ 21.00

11-1

0151706125
ref: 11-1
MODEL N/P

BOLT 6X12

€ 2.50

11-2

0155006123
ref: 11-2
MODEL R

BOLT

€ 2.50

0918006044
ref: 12

SPACER (6.1X8X9.5)

€ 2.50

0932008048
ref: 13

CUSHION

€ 3.00

0916006039
ref: 14

WASHER (6.5X18X1.6)

€ 2.00

0214206205
ref: 15

SCREW, CENTER

€ 2.00

0940406402
ref: 16

CLAMP

€ 2.50
