FOOTREST

DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

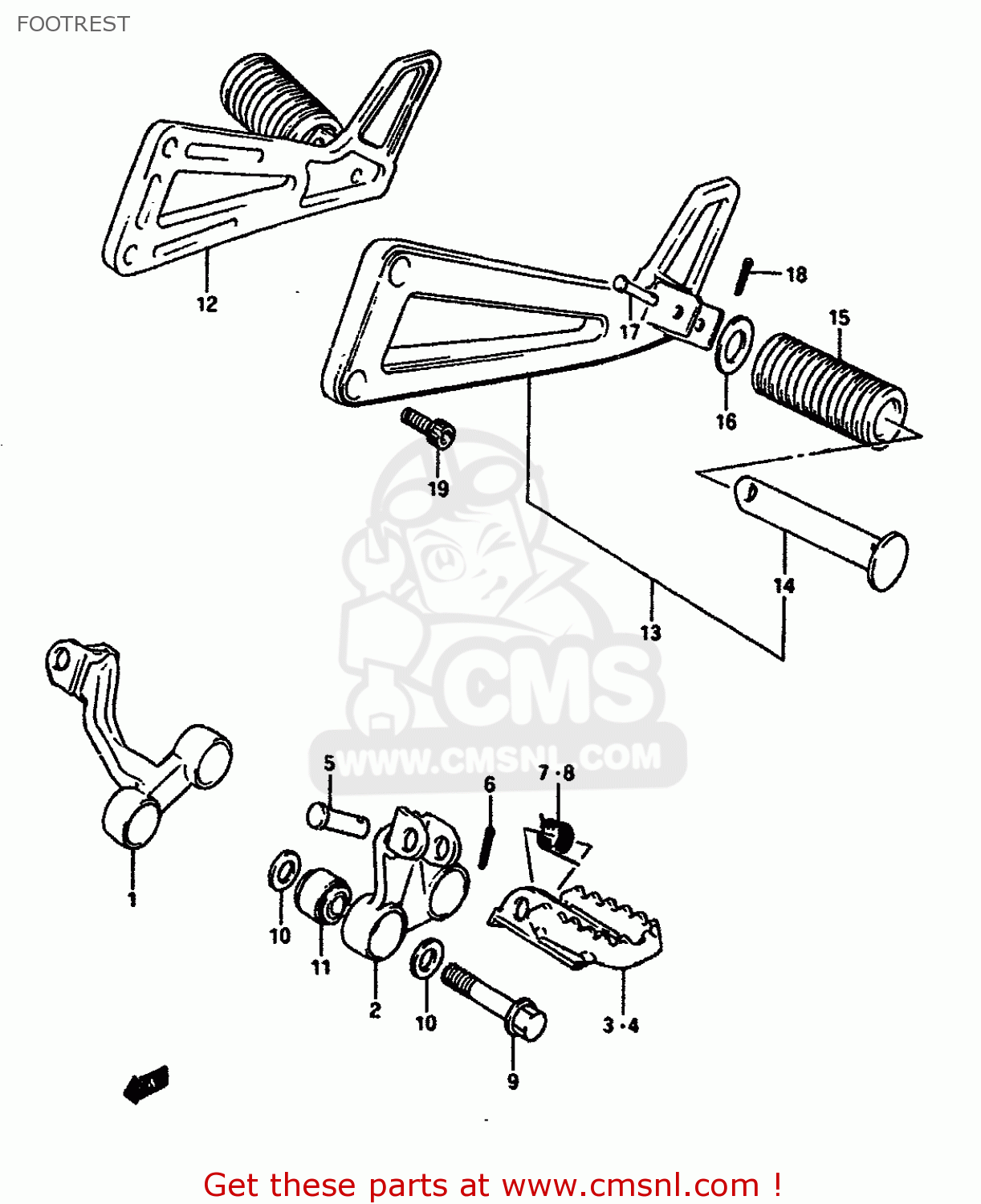

Footrest diagram DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

4351014A00019
ref: 1

BAR,FR FOOTREST,R

€ 20.00

4352014A00019
ref: 2

BAR,FRONT FOOTREST,LEFT

€ 32.50

4355044B10019
ref: 3

FOOTREST,FR,R

€ 52.50

4356044B10019
ref: 4

FOOTREST,FR,L

€ 27.00

0920010008
ref: 5

PIN

€ 3.00

0411120208
ref: 6

PIN 20X20

€ 1.50

0944815008
ref: 7

SPRING

€ 2.50

0944815004
ref: 8

SPRING

€ 2.50

0910310232
ref: 9

BOLT(10X50)

€ 4.50

0916010059
ref: 10

WASHER

€ 2.50

0931910033
ref: 11

BUSH(10.2X25X19)

€ 6.50

12-1

4360012D00
ref: 12-1
MODEL L

FOOTREST,PILLION RH

€ 79.50

12-2

4360012D10
ref: 12-2
MODEL M

FOOTREST,PILLION RH

€ 101.00

13-1

4370012D00
ref: 13-1
MODEL L

FOOTREST,PILLION LH

€ 68.00

13-2

4370012D10
ref: 13-2
MODEL M

FOOTREST,PILLION

€ 68.00

4361003001
ref: 14

BAR,FOOTREST RUBBER

€ 5.50

4361244B00
ref: 15

RUBBER,PILLION FOOTREST

€ 14.00

0916019006
ref: 16

WASHER (19.5X32X2)

€ 2.00

0920006041
ref: 17

PIN

€ 3.00

0411120158
ref: 18

PIN

€ 1.50

0711008207
ref: 19

BOLT

€ 3.00
