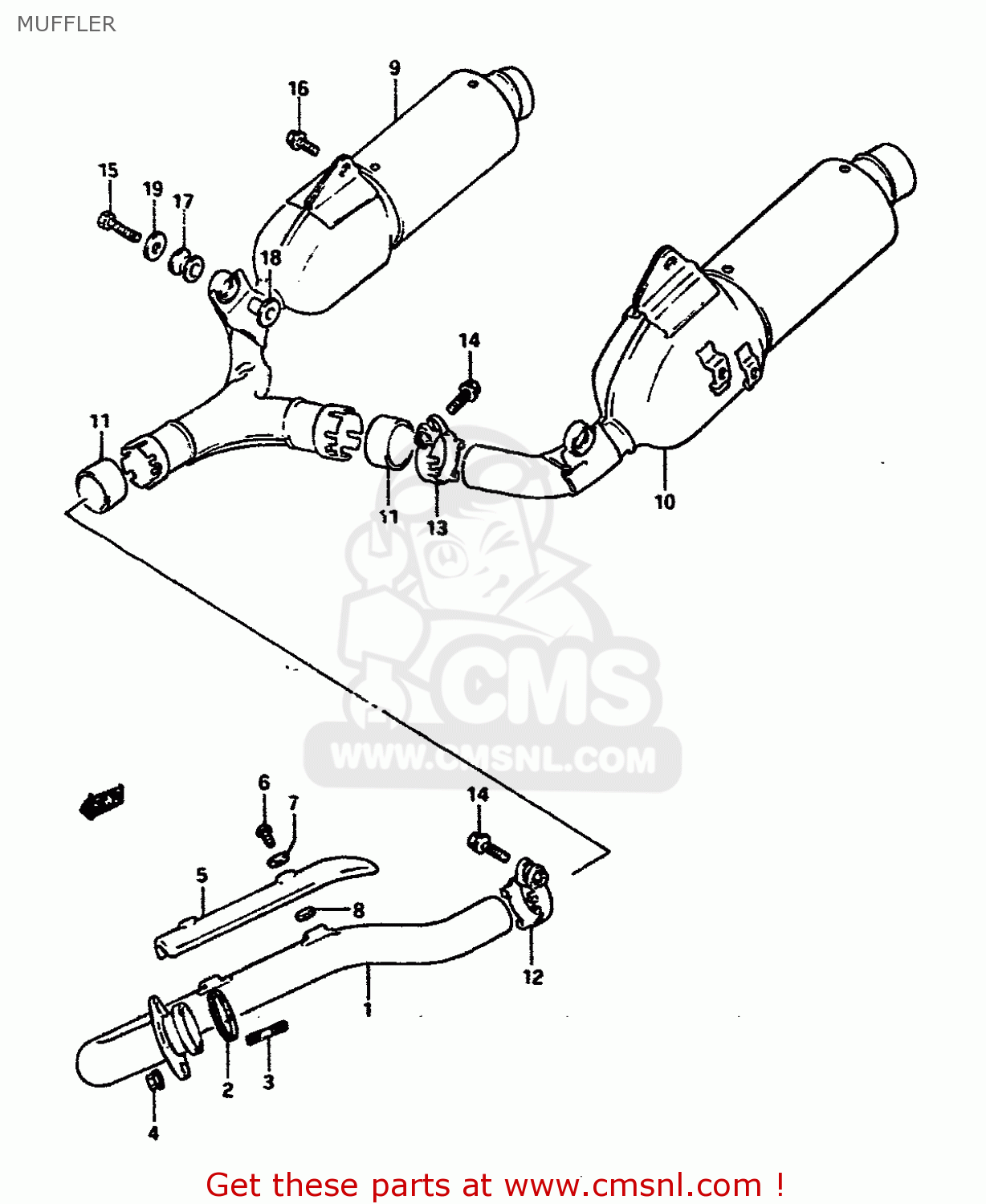

MUFFLER

ref

part #

description

quantity

1-1

1415012D00
ref: 1-1
MODEL L

PIPE,EXHAUST

€ 198.50

1-2

1415012D01
ref: 1-2
MODEL M

PIPE,EXHAUST

€ 198.50

2

1418101D00
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 8.00

3-1

0142108205
ref: 3-1
MODEL L

STUD BOLT

€ 2.00

3-2

0910808106
ref: 3-2
MODEL M

BOLT,STUD(8X20)

€ 3.00

4

0831931085
ref: 4

NUT

€ 2.50

5

1418012D00
ref: 5

COVER,EXHAUST PIPE

€ 38.00

6

0913906076
ref: 6

SCREW(6X10)

€ 2.50

7

0916006056
ref: 7

WASHER(6.5X18X1)

€ 2.00

8-1

0916806120
ref: 8-1
MODEL L

GASKET(5.8X13X1.4) (NAS)

€ 2.00

8-2

0916806122
ref: 8-2
MODEL M

GASKET(6X16X1.4) (NAS)

€ 2.50

9-1

1430512D00
ref: 9-1
MODEL L

MUFFLER ASSY,RH

€ 550.50

9-2

1430512D40
ref: 9-2
MODEL M

MUFFLER ASSY,RH

€ 550.50

10-1

1430612D00
ref: 10-1
MODEL L

MUFFLER ASSY,LH

€ 502.50

10-2

1430612D40
ref: 10-2
MODEL M

MUFFLER,L

€ 502.50

11-1

1477148B01
ref: 11-1
MODEL L

CONNECTOR,MUFFLER

€ 25.00

11-2

1477112D00
ref: 11-2
MODEL M

CONNECTOR,MUFF

€ 25.00

12

1445932C00
ref: 12

CLAMP,MUFFLER CONNECTOR

€ 13.00

13

1446932C00
ref: 13

CLAMP,MUFFLER CONNECTOR

€ 14.00

14

0151708355
ref: 14

BOLT

€ 3.50

15-1

0911808127
ref: 15-1
MODEL L

BOLT(8X40)

€ 3.50

15-2

0911808144
ref: 15-2
MODEL M

BOLT 8X40

€ 7.50

16-1

0910308266
ref: 16-1
MODEL L

BOLT(8X20)

€ 2.50

16-2

0910308286
ref: 16-2
MODEL M

BOLT(8X20)

€ 3.50

17

0932012043
ref: 17

CUSHION

€ 8.00

18

0918008151
ref: 18

SPACER(8.6X12X17.5)

€ 6.00

19

0916008053
ref: 19

WASHER (8.5X19X2.3)

€ 2.00

all assemblies
