HEADLAMP

DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

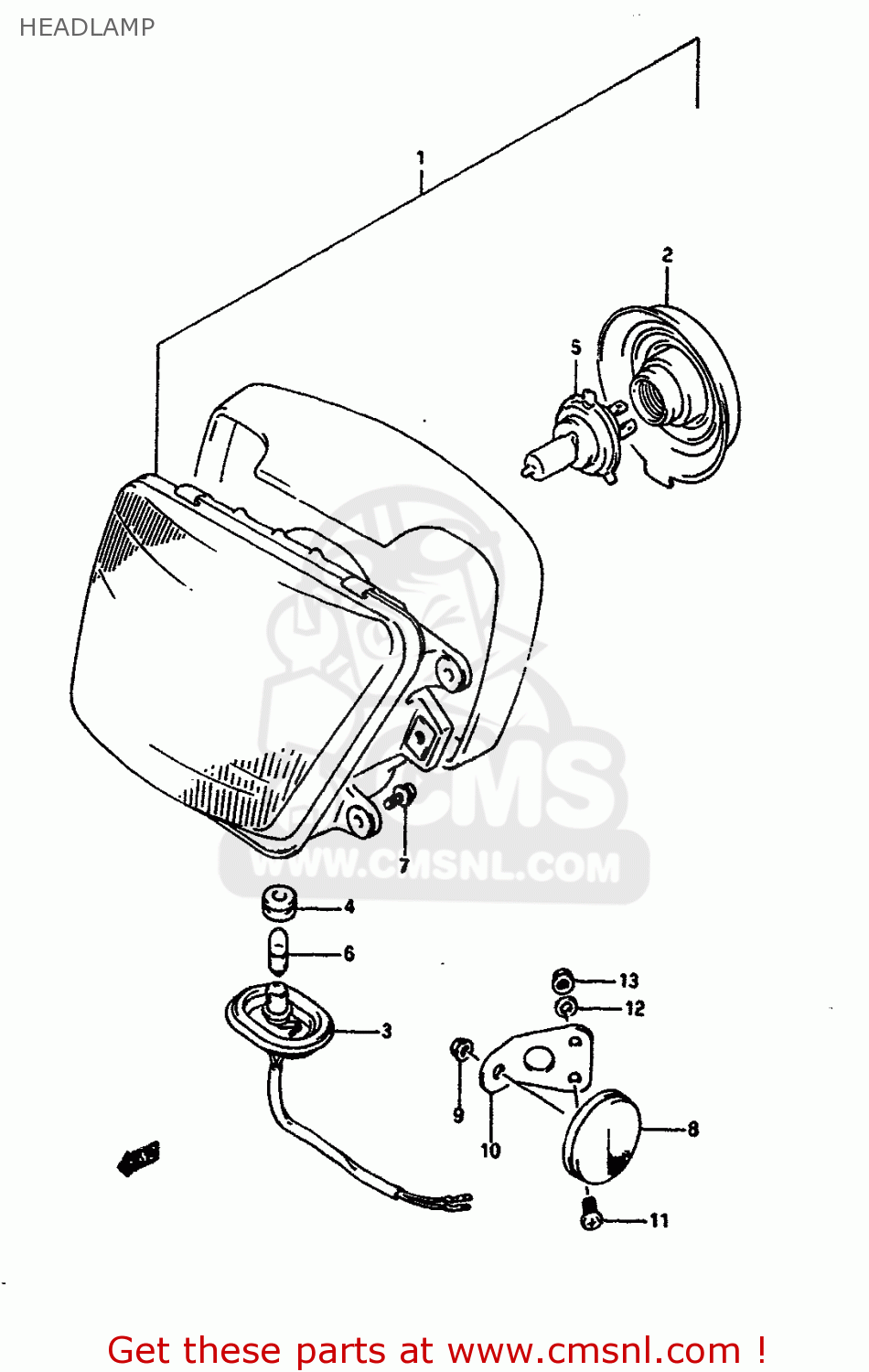

Headlamp diagram DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1-1

3510012D00
ref: 1-1

HEADLAMP ASSY

€ 318.00

1-2

3510012D40
ref: 1-2
E4

HEADLAMP ASSY

€ 312.50

1-3

3510012D50
ref: 1-3
E15,E16,E17,E18,E21,

HEADLAMP ASSY

€ 312.50

3517326B20
ref: 2

COVER,SOCKET

€ 14.50

3611812C00
ref: 3

SOCKET

€ 17.50

3611622630
ref: 4

JOINT,RUBBER

€ 5.00

5-1

0947112060
ref: 5-1

BULB(12V60/55W,H4)

€ 8.00

5-2

0947112061
ref: 5-2
E4,EXECUTED LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

0947112063
ref: 6

BULB(12V4W)

€ 6.00

0211275165
ref: 7

SCREW

€ 2.50

3595014A00
ref: 8
E39

REFLECTOR,REFLEX FR

€ 15.00

0831616055
ref: 9
E39

NUT ,5MM

€ 2.00

3595612D00
ref: 10
E39

BRACKET,FRONT SIDE RH

€ 0.00

0214204125
ref: 11
E39

SCREW

€ 1.50

0916004008
ref: 12
E39

WASHER (4X14X1.2)

€ 1.50

0831616045
ref: 13
E39

NUT

€ 2.50
