TURNSIGNAL LAMP

DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

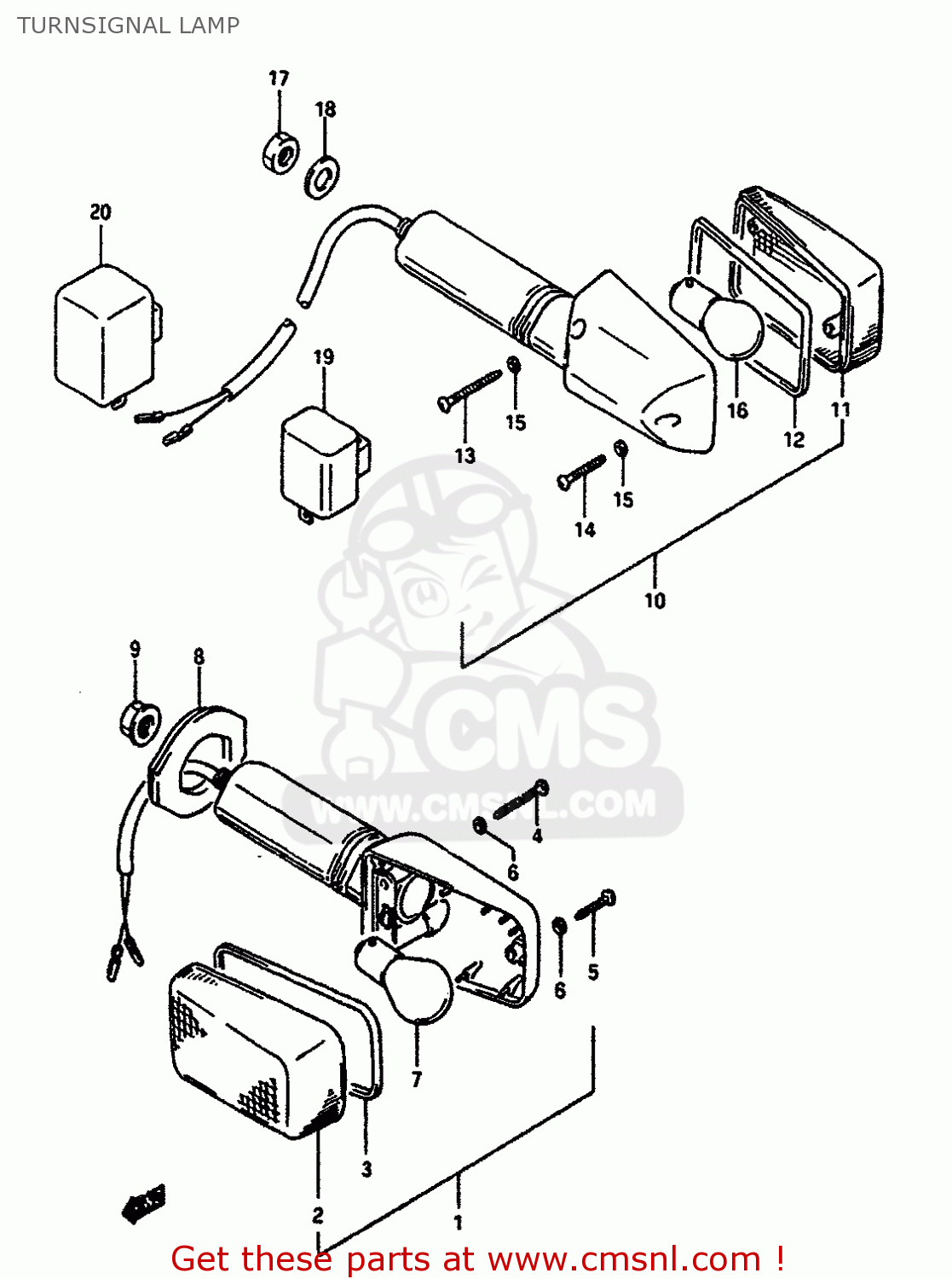

Turnsignal lamp diagram DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

3560117C21
ref: 1

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 70.50

3561217C20
ref: 2

LENS

€ 6.50

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

3572540511
ref: 5

SCREW

€ 1.50

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

0947112045
ref: 7

BULB(12V21W)

€ 5.00

3567427A01
ref: 8

GROMMET

€ 13.50

0831626105
ref: 9

NUT

€ 3.50

10-1

3560317C21
ref: 10-1

LAMP ASSEMBLY,REAR TURN SIGNAL

€ 88.00

10-2

3560317C31
ref: 10-2
E15,E16

LAMP ASSEMBLY,REAR TURN SIGNAL

€ 74.00

3565217C20
ref: 11

LENS

€ 6.50

3561327A00
ref: 12

GASKET (NAS)

€ 3.00

3562327A00
ref: 13

SCREW(3X30)

€ 1.50

3572540511
ref: 14

SCREW

€ 1.50

3562727A02
ref: 15

GASKET (NAS)

€ 1.50

0947112045
ref: 16

BULB(12V21W)

€ 5.00

0914010036
ref: 17

NUT

€ 3.50

0832211104
ref: 18

WASHER 10MM

€ 2.50

3861031310
ref: 19

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

3861045091
ref: 20
E22

RELAY ASSY,TUR

€ 67.50
