WIRING HARNESS

DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

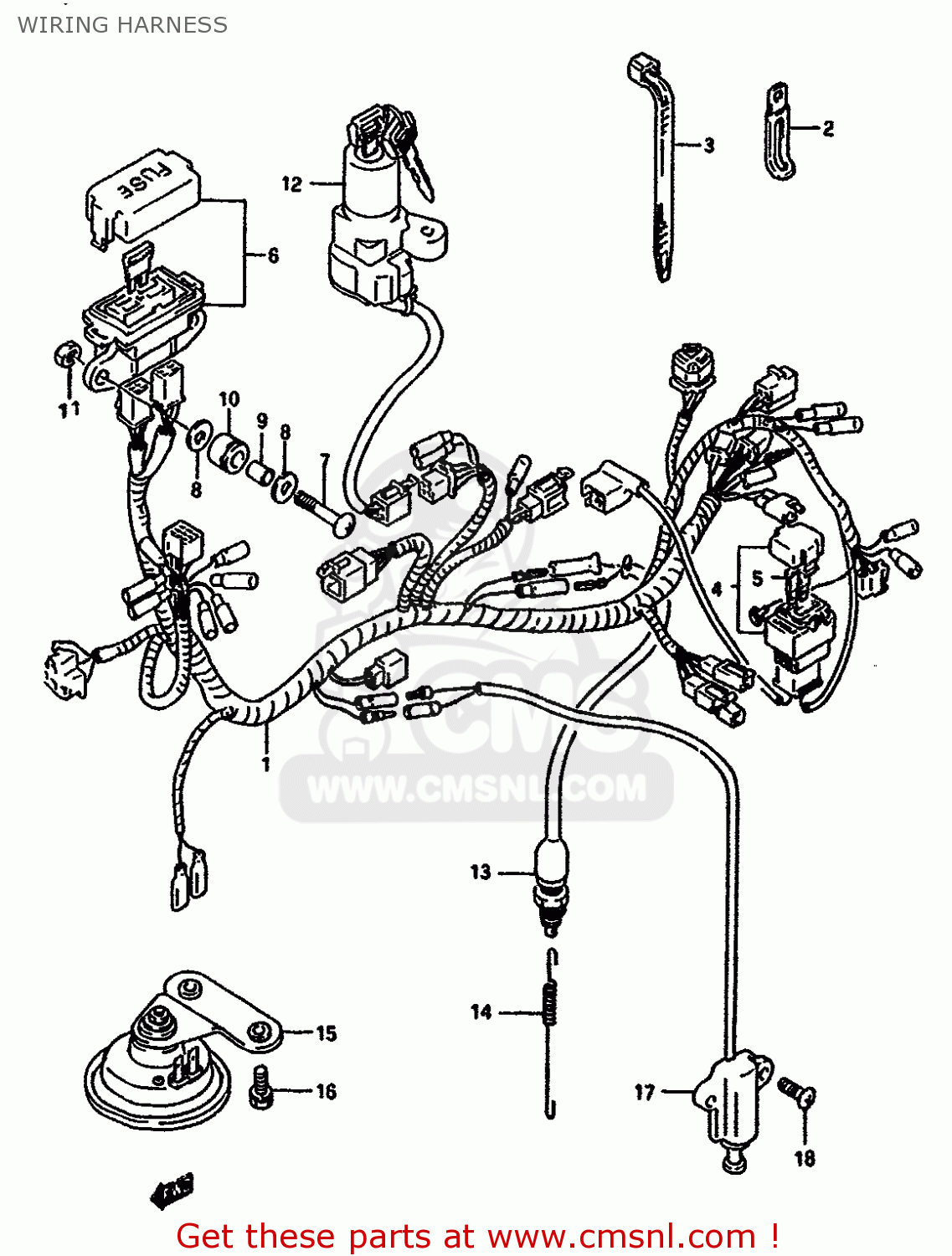

Wiring harness diagram DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

3661012D00
ref: 1

HARNESS,WIRING

€ 226.50

0940406405
ref: 2

CLAMP

€ 3.00

3-1

0940714403
ref: 3-1

CLAMP(L:125)

€ 2.50

3-2

0940718402
ref: 3-2

CLAMP(L:165)

€ 2.50

3-3

0940725401
ref: 3-3

CLAMP(L:235)

€ 4.00

3674004701
ref: 4

BOX ASSY,FUSE

€ 16.00

0948115101
ref: 5

FUSE(15A)

€ 1.50

3674012D00
ref: 6

FUSE ASSY

€ 48.00

0214206355
ref: 7

SCREW

€ 2.00

0916006056
ref: 8

WASHER(6.5X18X1)

€ 2.00

0918006158
ref: 9

SPACER

€ 4.50

0932008050
ref: 10

CUSHION 8X18X17.5

€ 0.00

0831011065
ref: 11

NUT

€ 2.00

12-1

3710012D00
ref: 12-1
MODEL L

LOCK ASSY,STEERING

€ 128.00

12-2

3710012D02
ref: 12-2
MODEL M

LOCK ASSEMBLY,STEERING

€ 128.00

3774014A00
ref: 13

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

0944306079
ref: 14

SPRING

€ 4.00

3850012D00
ref: 15

HORN ASSY

€ 48.00

0113706165
ref: 16

BOLT

€ 2.50

3784014A21
ref: 17

SWITCH ASSY,SIDE STAND WARNING

€ 80.00

0211206205
ref: 18

SCREW

€ 2.00

WIRING HARNESS

all assemblies
