HANDLEBAR (MODEL M)

DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

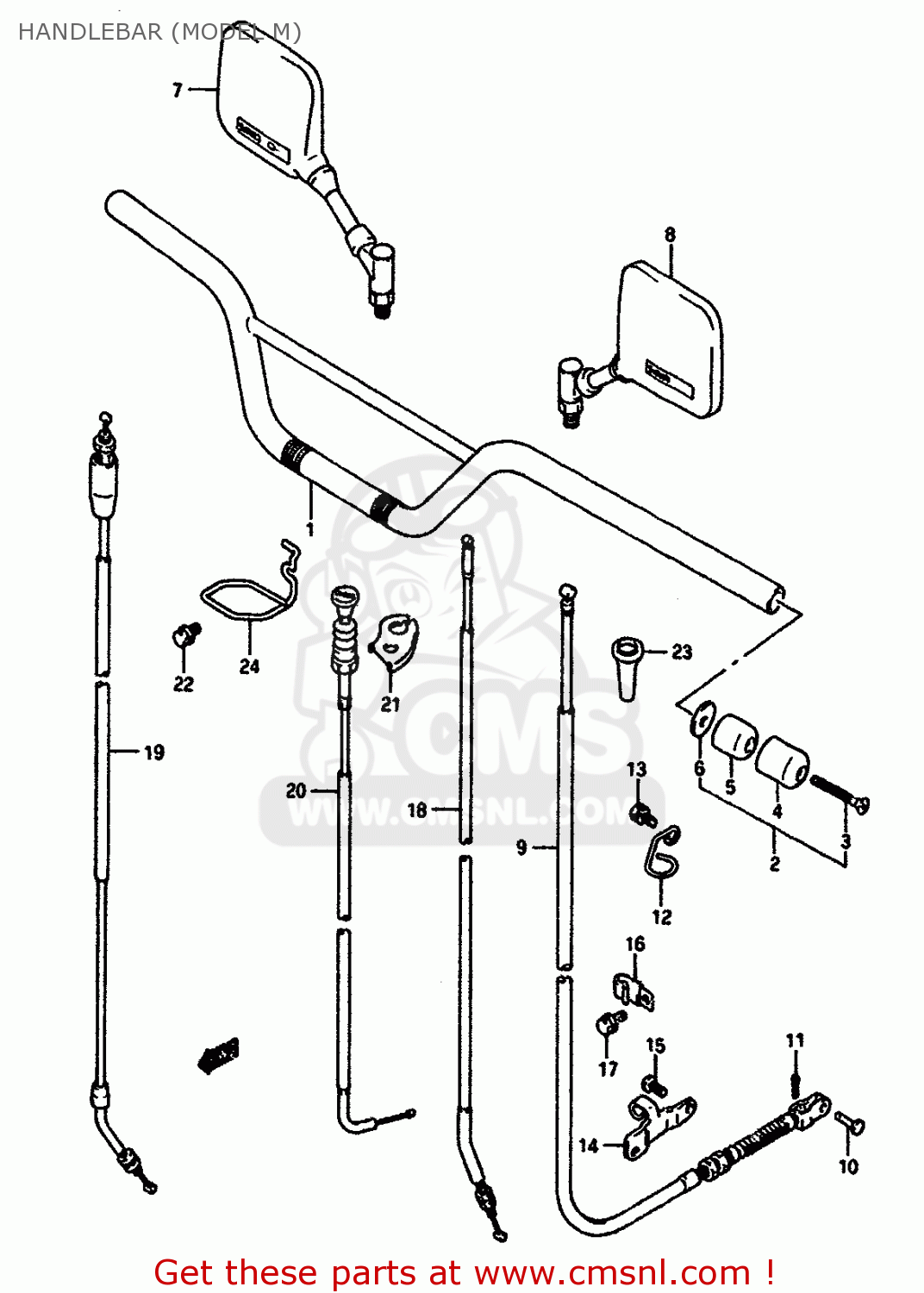

Handlebar (model m) diagram DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

HANDLEBAR (MODEL M) DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
HANDLEBAR (MODEL M) DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
HANDLEBAR (MODEL M) DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
5611012D00291
ref: 1
HANDLEBAR(BLACK)
5611012D00291
€ 96.00
2
5620025810
ref: 2
BALANCER SET,HANDLEBAR
5620025810
€ 87.00
3
0213206455
ref: 3
SCREW
0213206455
€ 2.00
4
5627404700
ref: 4
CAP,BALANCER
5627404700
€ 96.00
5
5627149410
ref: 5
BALANCER,HANDLEBAR
5627149410
€ 14.50
6
5627534400
ref: 6
SPACER,BALANCER
5627534400
€ 2.50
7-1
5650012D00
ref: 7-1
MIRROR ASSEMBLY,REAR VIEW
5650012D00
€ 101.50
7-2
5650012D10
ref: 7-2
E16,E24
MIRROR ASSY, REAR VIEW RH
€ 101.50
8-1
5660012D00
ref: 8-1
MIRROR ASSEMBLY,REAR VIEW
5660012D00
€ 102.50
8-2
5660012D10
ref: 8-2
E16,E24
MIRROR ASSY, REAR VIEW LH
€ 58.00
9
5820012D10
ref: 9
CABLE ASSY,CLUTCH
5820012D10
€ 43.50
10
0920006004
ref: 10
PIN(L:13)
0920006004
€ 1.50
11
0411120158
ref: 11
PIN
0411120158
€ 1.50
12
5862117200
ref: 12
GUIDE
5862117200
€ 5.50
13
0113406125
ref: 13
BOLT ,6X12
€ 1.50
14
5863437410
ref: 14
STOPPER,CLUTCH CABLE
€ 4.50
15
0211206125
ref: 15
SCREW
0211206125
€ 1.50
16
0940309301
ref: 16
CLAMP
€ 8.50
17
0111406125
ref: 17
BOLT
0111406125
€ 2.50
18
5890012D20
ref: 18
CABLE ASSY,DECOMP
5890012D20
€ 30.00
19
5830012D00
ref: 19
CABLE ASSY,THROTTLE
5830012D00
€ 35.00
20
5840031D00
ref: 20
CABLE ASSY,STARTER
€ 37.50
21
5849131D00
ref: 21
BRACKET,STARTER CABLE
€ 15.50
22
0151706105
ref: 22
BOLT
€ 2.50
23
5827331000
ref: 23
BOOT,CLUTCH CABLE
5827331000
€ 2.50
24
5863431D00
ref: 24
GUIDE,CABLE
€ 10.50
