KICK STARTER

DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

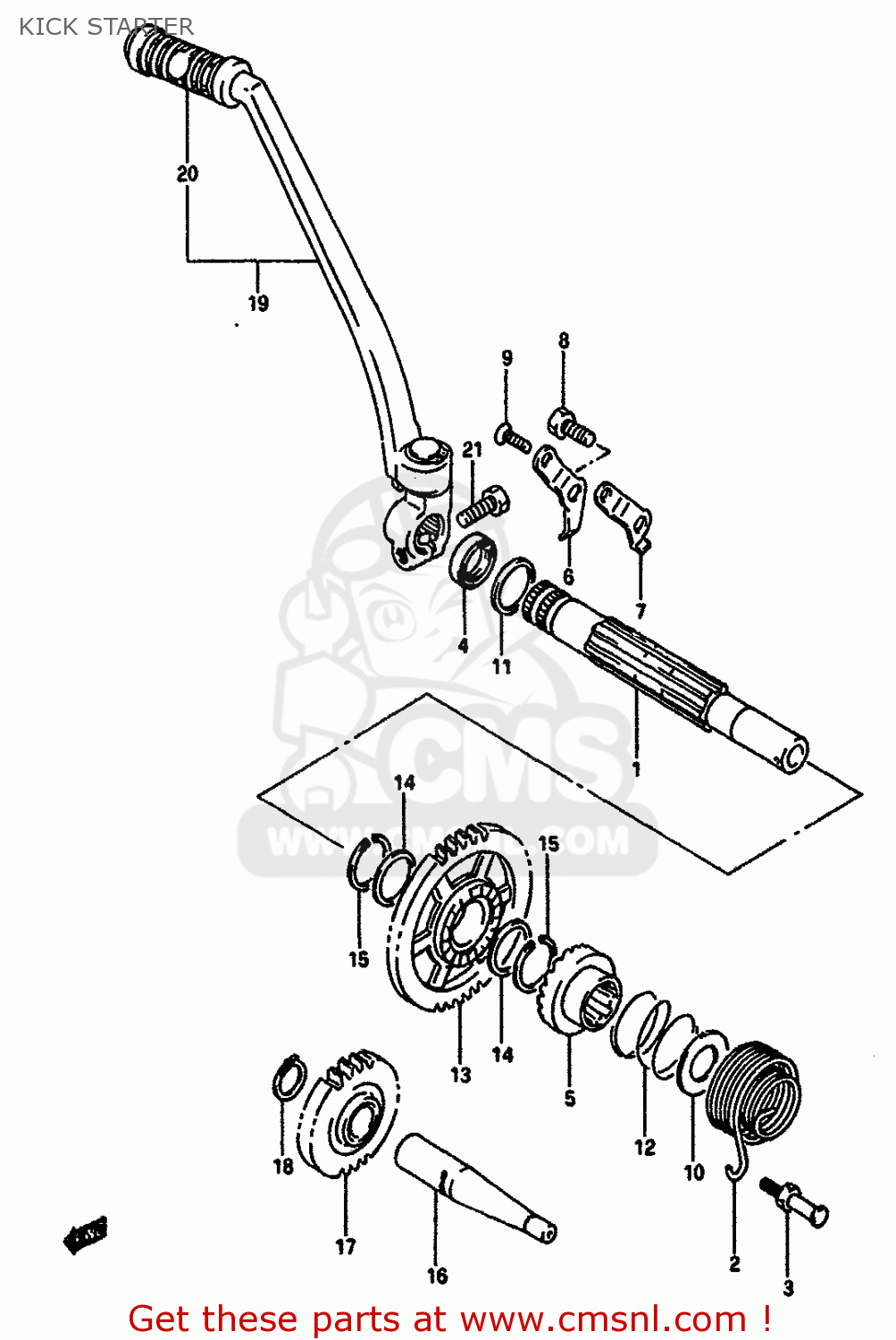

Kick starter diagram DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

KICK STARTER DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
KICK STARTER DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
KICK STARTER DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
2621114A02
ref: 1
SHAFT,KICK STARTER
2621114A02
€ 63.00
2
0944841003
ref: 2
SPRING
0944841003
€ 17.00
3
2623714500
ref: 3
BOLT,KICK SHAFT SPRING
€ 3.50
4
0928320044
ref: 4
SEAL,OIL(20X27X6)
0928320044
€ 8.00
5
2623138201
ref: 5
STARTER,KICK
€ 25.50
6
2623214A00
ref: 6
GUIDE,KICK STARTER
2623214A00
€ 8.00
7
2623314A01
ref: 7
STOPPER,KICK STARTER
2623314A01
€ 6.00
8
0110708206
ref: 8
BOLT,8X1.25X2
€ 2.00
9
0212206167
ref: 9
SCREW
0212206167
€ 2.00
10
0821117341
ref: 10
WASHER
0821117341
€ 2.00
11
0821120281
ref: 11
WASHER,THRUST
0821120281
€ 2.50
12
0944032006
ref: 12
SPRING
0944032006
€ 1.50
13
2624014A00
ref: 13
GEAR,KICK STARTER DRIVE
2624014A00
€ 52.50
14
0821122281
ref: 14
SHIM
0821122281
€ 4.00
15
0938022006
ref: 15
CIRCLIP
0938022006
€ 3.00
16-1
2622314A00
ref: 16-1
MODEL L
SHAFT,KICK STARTER IDLE
2622314A00
€ 16.50
16-2
2622314A01
ref: 16-2
MODEL M
SHAFT,KICK STARTER IDLE
2622314A01
€ 16.50
17
2626037400
ref: 17
GEAR,KICK STARTER IDLE
2626037400
€ 36.00
18
0938017001
ref: 18
CIRCLIP
0938017001
€ 2.00
19-1
2630014A00
ref: 19-1
MODEL L
LEVER ASSEMBLY,KICK STARTER
€ 282.00
19-2
2630014A02
ref: 19-2
MODEL M
LEVER ASSEMBLY,KICK STARTER
€ 282.00
20
2635216401
ref: 20
RUBBER,KICK STARTER PEDAL
2635216401
€ 4.00
21
0910008194
ref: 21
BOLT 8X25
0910008194
€ 2.00
