FRONT FENDER

DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

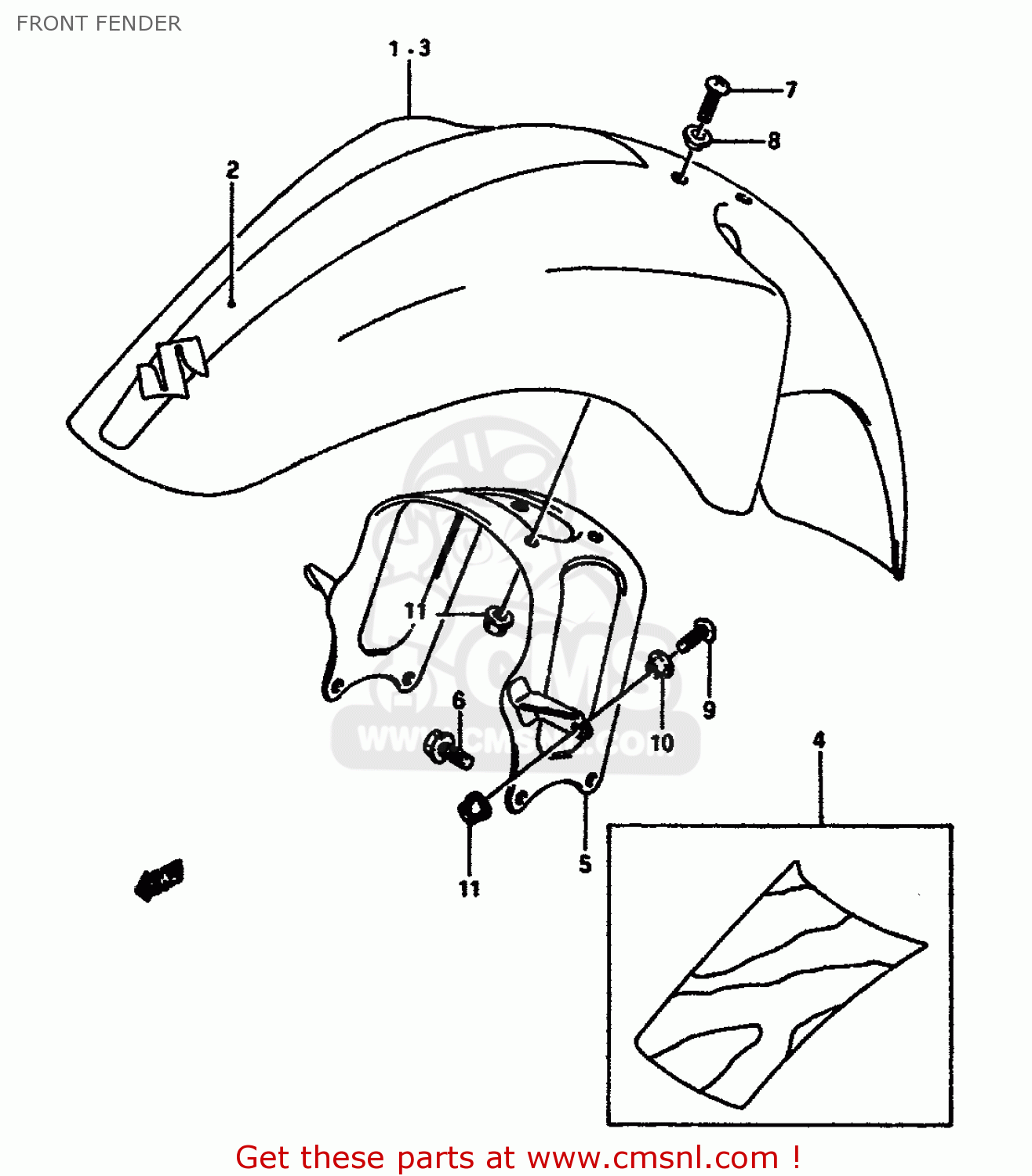

Front fender diagram DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1-1

5311012D100JW
ref: 1-1
MODEL L

FENDER,FRONT

€ 166.50

1-2

5311012D1028V
ref: 1-2
MODEL L

FENDER,FRONT (RED)

€ 118.50

1-3

5311012D100NF
ref: 1-3
MODEL L

FENDER,FRONT (BLUE)

€ 118.50

2-1

6815512D00B21
ref: 2-1
FOR 0JW

TAPE

€ 14.50

2-2

6815512D003US
ref: 2-2
FOR 28V

TAPE

€ 14.00

2-3

6815512D00B19
ref: 2-3
FOR 0NF

TAPE

€ 8.00

3-1

5311012D300JW
ref: 3-1
MODEL M

FENDER,FRONT

€ 166.50

3-2

5311012D3012F
ref: 3-2
MODEL M

FENDER,FRONT (BLUE)

€ 156.50

3-3

5311012D3022P
ref: 3-3
MODEL M

FENDER,FRONT

€ 198.50

4-1

6815512D101BM
ref: 4-1
FOR 0JW

TAPE

€ 19.50

4-2

6815512D101BY
ref: 4-2
FOR 12F,22P

TAPE

€ 19.50

5321012D00
ref: 5

BRACE,FR FENDER

€ 33.00

0911706057
ref: 6

BOLT 6X16

€ 2.00

0214205164
ref: 7

SCREW

€ 2.50

0916905014
ref: 8

WASHER

€ 10.00

0214205164
ref: 9

SCREW

€ 2.50

0916905009
ref: 10

WASHER

€ 3.50

0831931055
ref: 11

NUT

€ 3.00

FRONT FENDER

all assemblies
