REAR CALIPER

DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

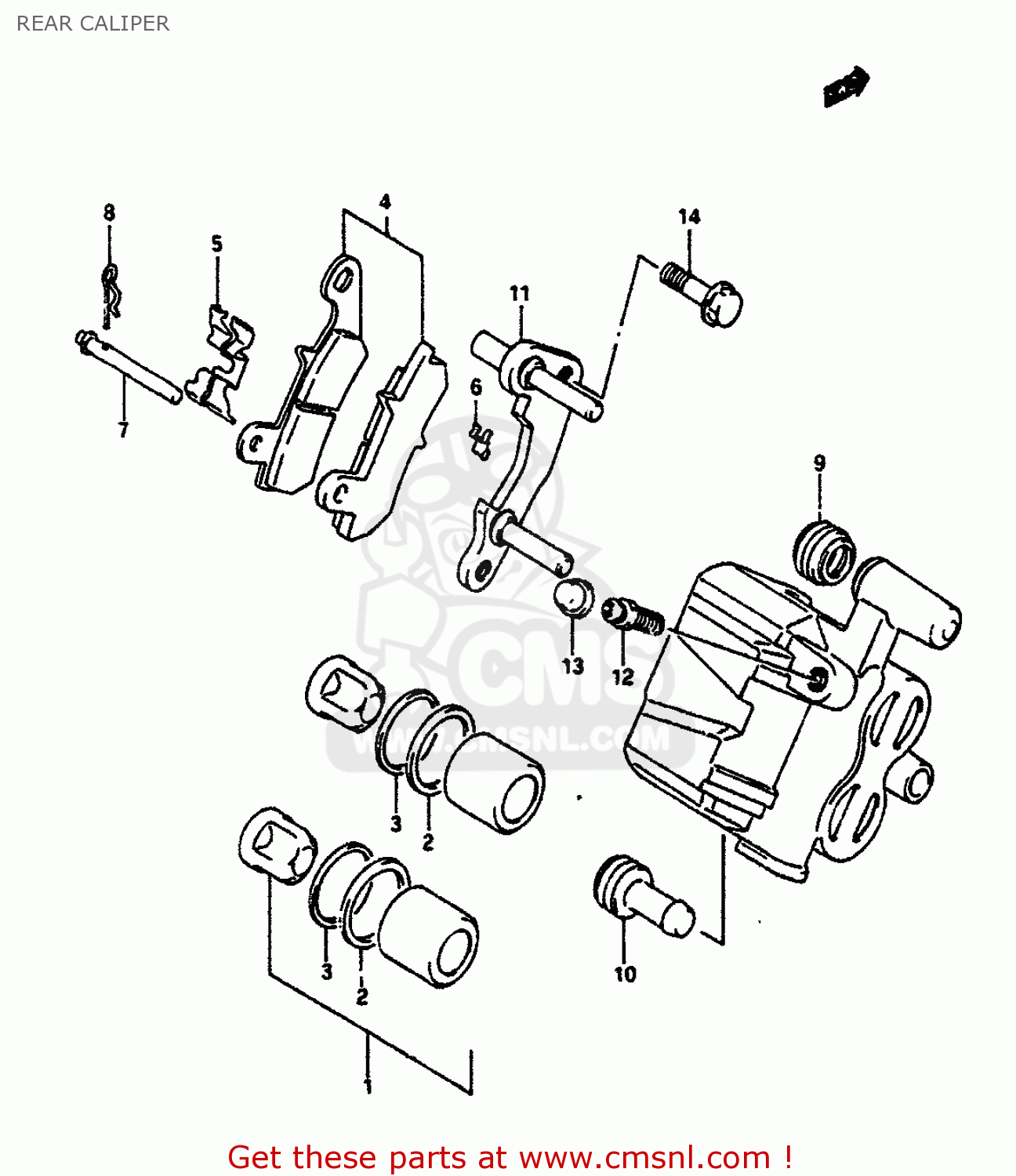

Rear caliper diagram DR650RS 1991 (M) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

6910044B00
ref: 0

CALIPER ASSEMBLY,REAR

€ 545.00

6910044850
ref: 1

BRAKE PISTON SET

€ 71.50

5910704A00
ref: 2

SEAL,PISTON

€ 12.00

5910804A00
ref: 3

SEAL,WIPER

€ 10.50

6910044860
ref: 4

PAD SET (NAS)

€ 49.00

6911544B00
ref: 5

SPRING,PAD

€ 6.50

6911644B00
ref: 6

GUIDE,PAD

€ 8.00

6914144B00
ref: 7

PIN,PAD

€ 8.00

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

5931236500
ref: 9

BOOT,AXLE

€ 4.00

5931336500
ref: 10

INSULATOR,AXLE

€ 5.50

6915044B00
ref: 11

CARRIER

€ 62.50

5912118410
ref: 12

BLEEDER

€ 8.00

5912218410
ref: 13

CAP,BREATHER

€ 6.00

0910308259
ref: 14

BOLT(8X22)

€ 4.50

REAR CALIPER

all assemblies
