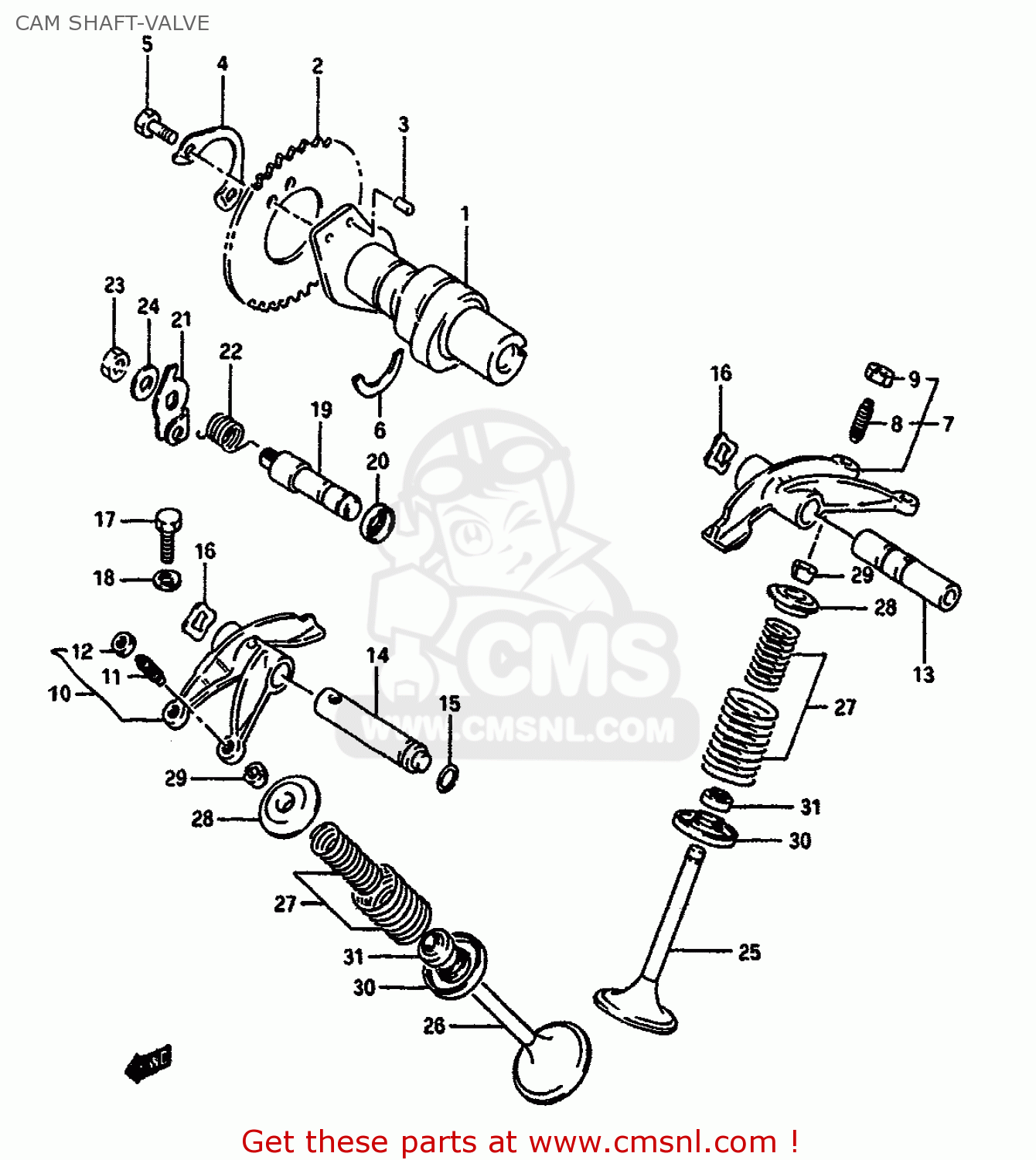

CAM SHAFT-VALVE

ref

part #

description

quantity

1

1271112D00
ref: 1

CAMSHAFT

€ 428.50

2

1274137400
ref: 2

SPROCKET,CAMSHAFT(NT:42)

€ 34.50

3

0422105109
ref: 3

PIN

€ 1.50

4

1274744000
ref: 4

WASHER,CAM CHAIN SPROCKET

€ 2.00

5

0911106027
ref: 5

BOLT(6X12.5)

€ 1.50

6

0939025003
ref: 6

C RING

€ 2.50

7

1284012D00
ref: 7

ARM,VALVE ROCKER INTAKE

€ 112.00

8

1284232411
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.00

9

1284332400
ref: 9

NUT,ADJUSTING SCREW

€ 2.50

10

1285037401
ref: 10

ARM,VALVE ROCKER EXHAUST

€ 123.00

11

1284232411
ref: 11

SCREW,TAPPET ADJUSTING

€ 5.00

12

1284332400
ref: 12

NUT,ADJUSTING SCREW

€ 2.50

13

1286112D00
ref: 13
L:73

SHAFT,VALVE ROCKER ARM INTAKE

€ 19.50

14

1287114A00
ref: 14
L:78.5

SHAFT,EXHAUST VALVE ROCKER ARM

€ 20.00

15

0928009005
ref: 15

O RING(D:1.9,ID:8.6)

€ 4.00

16

0916412018
ref: 16

WASHER

€ 1.50

17

0151706305
ref: 17

BOLT 6X30

€ 2.50

18

0916806023
ref: 18

GASKET(5.8X13X1.2) (NAS)

€ 2.00

19

1294112D00
ref: 19

SHAFT,DECOMPRESSION

€ 19.50

20

0928210014
ref: 20

SEAL,OIL(10X17X6)

€ 6.50

21-1

1294237101
ref: 21-1
MODEL L

LEVER,DECOMP SHAFT

€ 4.50

21-2

1294212D00
ref: 21-2
MODEL M

LEVER,DECOMP SHAFT

€ 7.00

22

0944817028
ref: 22

SPRING,DECOMPRESSION SHAFT LEVER

€ 5.50

23

0831022085
ref: 23

NUT 8MM

€ 2.00

24

0832211084
ref: 24

WASHER

€ 1.50

25

1291112D00
ref: 25

VALVE,INTAKE

€ 28.50

26

1291237400
ref: 26

VALVE,EXHAUST

€ 61.00

27

1292037402
ref: 27

SPRING SET,VALVE

€ 12.50

28

1293145000
ref: 28

RETAINER,VALVE SPRING

€ 6.00

29

1293245010
ref: 29

COTTER VALVE

€ 2.50

30

1293337400
ref: 30

SEAT,VALVE SPRING

€ 3.50

31

0928907002
ref: 31

SEAL,OIL(7X14.4X9)

€ 3.00
