LEFT HANDLE SWITCH
DR650RSU 1991 (M) GERMANY (E22)

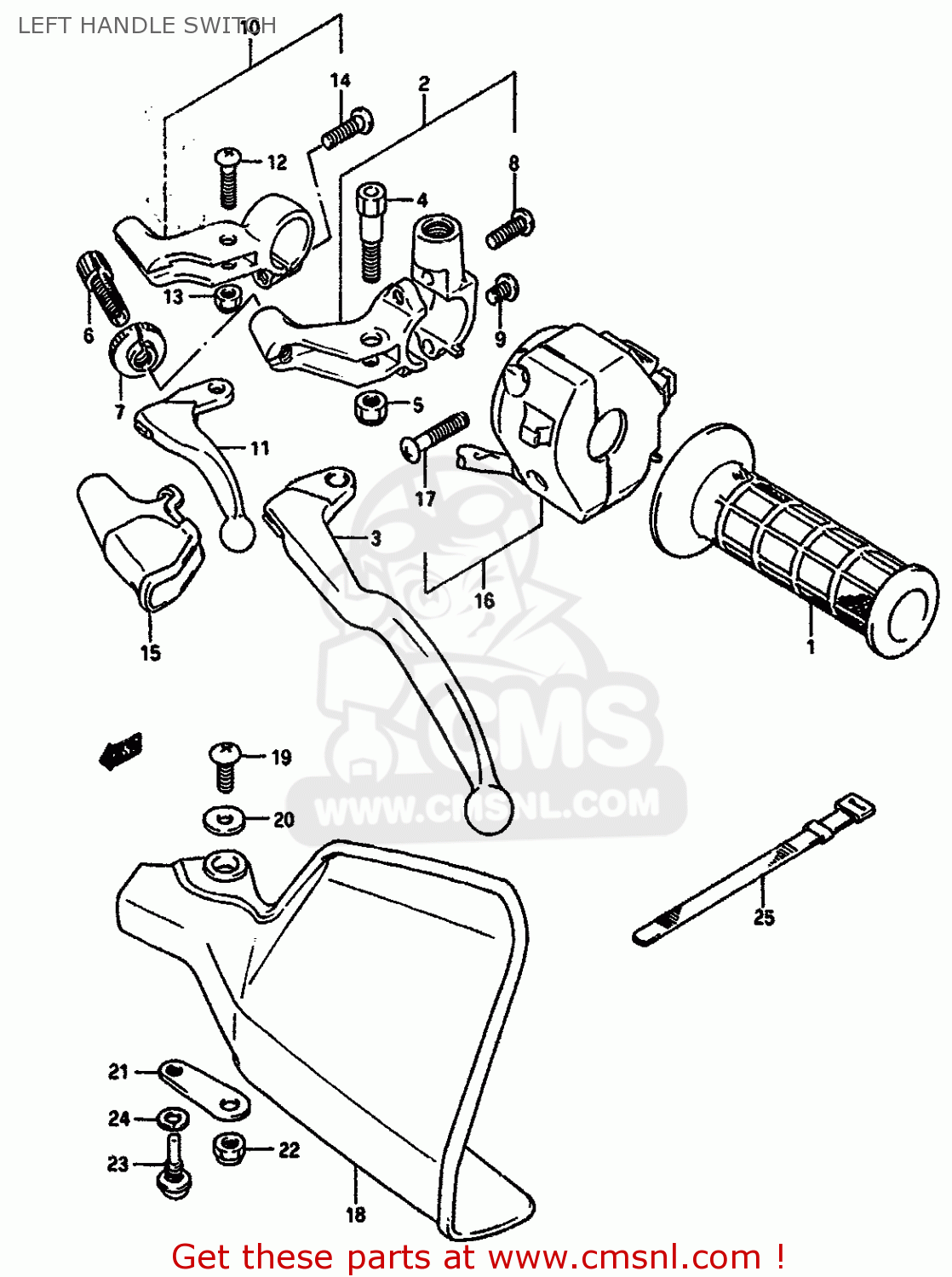

Left handle switch diagram DR650RSU 1991 (M) GERMANY (E22)
LEFT HANDLE SWITCH DR650RSU 1991 (M) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5721112D00
ref: 1
GRIP,L
€ 14.50
2
5750012D00
ref: 2
LEVER ASSEMBLY,CLUTCH
€ 65.00
3
5762014310
ref: 3
LEVER,CLUTCH
€ 28.00
4
5763105D00
ref: 4
BOLT,LEVER SET
€ 7.00
5
0831921068
ref: 5
NUT 6MM
€ 2.00
6
5744111010
ref: 6
ADJUSTER,CABLE
€ 8.00
7
5744205D00
ref: 7
NUT,LOCK
€ 7.50
8
0211205164
ref: 8
SCREW
€ 2.00
9
0912505066
ref: 9
SCREW(5X25)
€ 2.00
10
5870038200
ref: 10
LEVER ASSEMBLY,DECOMPRESSION
€ 169.50
11
5873138200
ref: 11
LEVER,DECOMP
€ 42.00
12
5743101012
ref: 12
BOLT,LEVER PIVOT
€ 5.00
13
5763338200
ref: 13
NUT
€ 2.00
14
0211206205
ref: 14
SCREW
€ 2.00
15
5734237101
ref: 15
COVER,DECOMP LEVER DUST
€ 9.50
16
3740012D01
ref: 16
SWITCH ASSY,HANDLE LH
€ 130.00
17
0211205305
ref: 17
SCREW
€ 1.50
18-1
5754105D0030H
ref: 18-1
MODEL L,FOR 0JW
COVER,KNUCKLE,LEFT
€ 31.00
18-2
5754105D0014C
ref: 18-2
MODEL L,FOR 28V
COVER,KNUCKLE
€ 33.00
18-3
5754105D000NF
ref: 18-3
MODEL L,FOR 0NF
COVER,KNUCKLE,LEFT
€ 31.00
18-4
5754105D000MA
ref: 18-4
MODEL M,FOR 0JW
COVER,KNUCKLE,LH (WHITE)
€ 31.00
18-5
5754105D001AY
ref: 18-5
MODEL M,FOR 12F
COVER,KNUCKLE,LH (BLUE)
€ 31.00
18-6
5754105D0028V
ref: 18-6
MODEL M,FOR 22P
COVER,KNUCKLE,LH (RED)
€ 33.00
19
0912505042
ref: 19
SCREW(5X10)
€ 2.50
20
0916005017
ref: 20
WASHER (5.5X16X1.2)
€ 2.50
21
5754205D00
ref: 21
PLATE,KNUCKLE COVER,L LWR
€ 3.50
22
0831921068
ref: 22
NUT 6MM
€ 2.00
23
0913906010
ref: 23
SCREW
€ 3.00
24
0832121067
ref: 24
WASHER,LOCK
€ 2.50
25
0940712402
ref: 25
CLAMP(L:120)
€ 3.00
