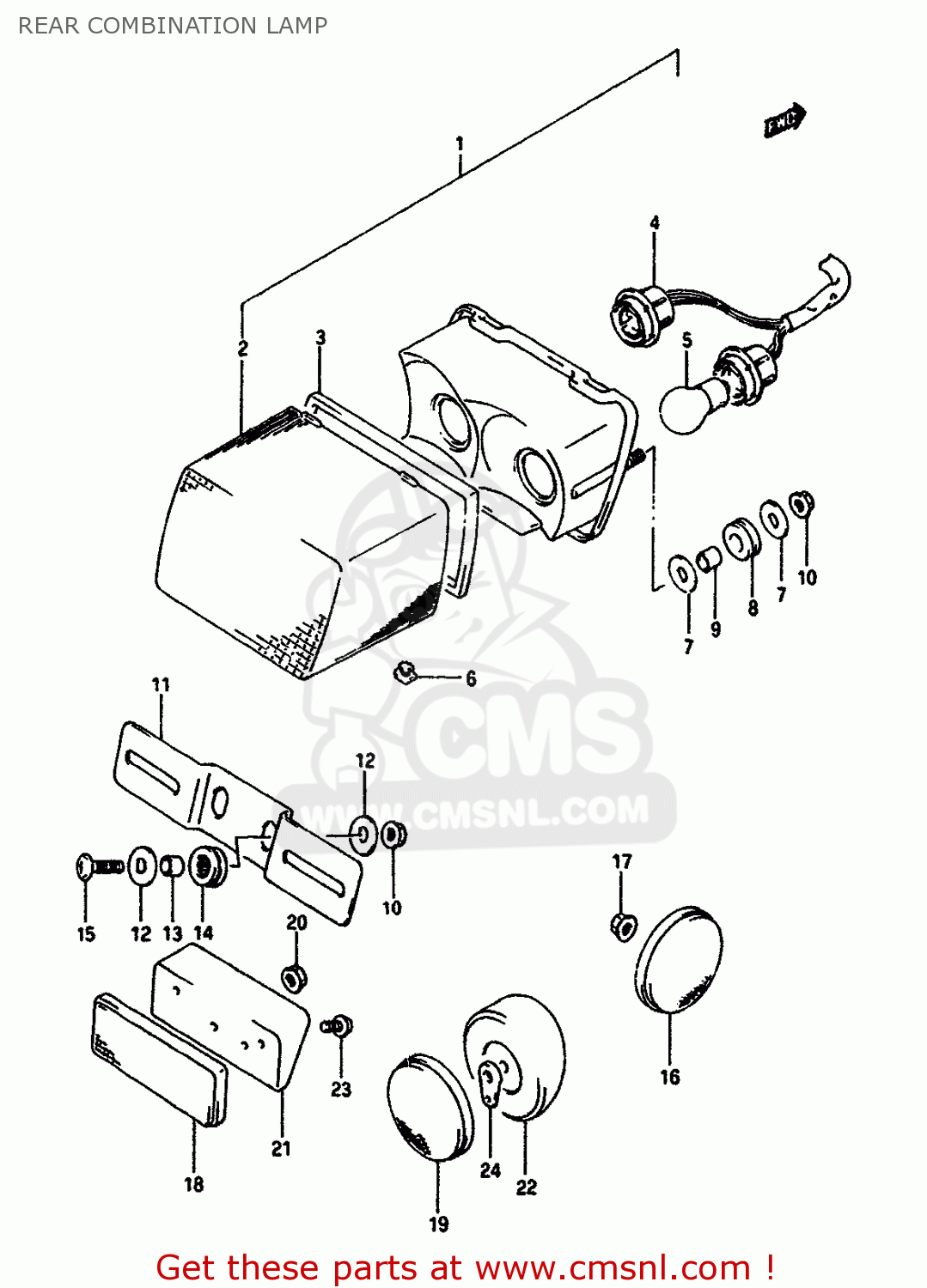

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571012D00
ref: 1

LAMP ASSY,RR COMBINATION

€ 134.50

2

3571201D00
ref: 2

LENS

€ 45.00

3

3571301D00
ref: 3

GASKET (NAS)

€ 7.00

4

3571801D00
ref: 4

SOCKET

€ 40.00

5

0947112083
ref: 5

BULB(12V21/5W)

€ 6.00

6

3576512D01
ref: 6

CUSHION

€ 1.50

7

0916006086
ref: 7

WASHER (6.5X20X1)

€ 2.00

8

0932009009
ref: 8

CUSHION

€ 5.00

9

0918006225
ref: 9

SPACER

€ 4.50

10

0831616066
ref: 10

NUT

€ 2.50

11

3592712D20
ref: 11

BRACKET,LICENSE PLATE

€ 12.50

12

0916006086
ref: 12

WASHER (6.5X20X1)

€ 2.00

13

0918006152
ref: 13

SPACER

€ 3.00

14

0932106030
ref: 14

CUSHION

€ 3.00

15

0912506055
ref: 15

SCREW(6X25)

€ 3.00

16

3595014A00
ref: 16
E39

REFLECTOR,REFLEX FR

€ 15.00

17

0831616055
ref: 17
E39

NUT ,5MM

€ 2.00

18

3597000A21
ref: 18

REFLECTOR ASSEMBLY,REAR

€ 22.00

19

3597012D00
ref: 19
E15,E16,E17,E18,E22,

REFLECTOR ASSY,RR

€ 13.00

20

0831626058
ref: 20

NUT 5MM

€ 2.00

21

3597712C00
ref: 21

SPACER,RR RR

€ 8.00

22

3597712D00
ref: 22
E15,E16,E17,E18,E22,

SPACER, REAR REFLECTOR

€ 13.00

23

0354104125
ref: 23

SCREW

€ 1.50

24

3599712D00
ref: 24
E15,E16,E17,E18,E22,

WASHER,RR REFLECTOR

€ 2.50
