FRONT MASTER CYLINDER

DR650RSU 1991 (M) GERMANY (E22)

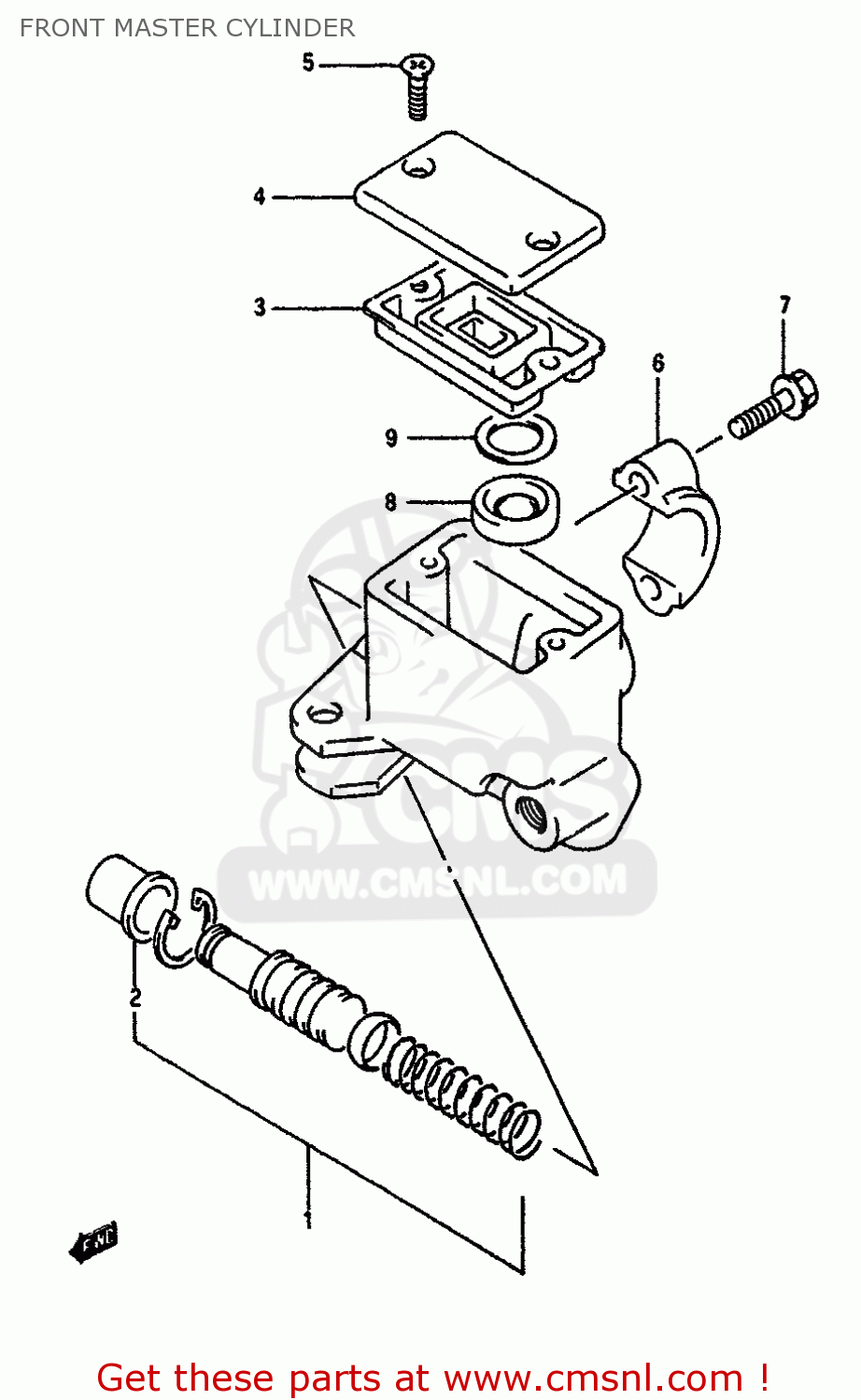

Front master cylinder diagram DR650RSU 1991 (M) GERMANY (E22)

FRONT MASTER CYLINDER DR650RSU 1991 (M) GERMANY (E22)

FRONT MASTER CYLINDER DR650RSU 1991 (M) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

0

5960012D00
ref: 0

CYLINDER ASSEMBLY,FRONT MASTER

€ 210.00

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5966744B00
ref: 3

DIAPHRAGM

€ 8.00

4

6966924A01
ref: 4

CAP

€ 12.00

5

6968949300
ref: 5

SCREW

€ 1.50

6

5967136500
ref: 6

HOLDER

€ 10.00

7

0111706255
ref: 7

BOLT

€ 2.50

8

5974815400
ref: 8

SEPERATOR

€ 7.50

9

5974915400
ref: 9

PLATE

€ 2.00
