CYLINDER
DR650RSU 1991 (M) GERMANY (E22)

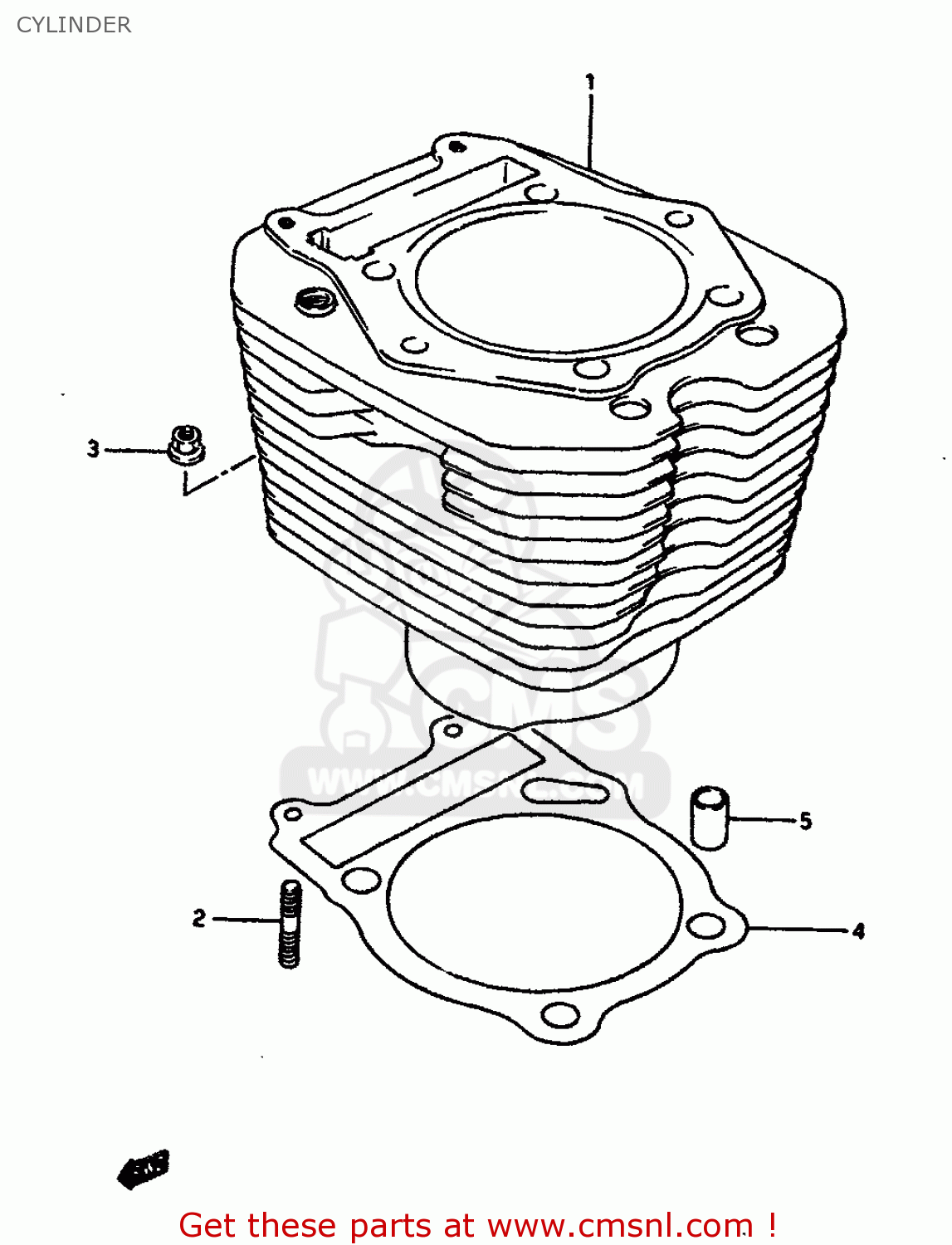

Cylinder diagram DR650RSU 1991 (M) GERMANY (E22)
CYLINDER DR650RSU 1991 (M) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121012D000E0
ref: 1-1
MODEL L
CYLINDER
€ 606.50
1-2
1121012D100E0
ref: 1-2
MODEL M
CYLINDER
€ 606.50
2
0142106205
ref: 2
STUD BOLT L:20
€ 2.50
3
0831616064
ref: 3
NUT 6MM
€ 2.50
4
1124114A02H17
ref: 4
GASKET,CYLINDER (NAS)
€ 27.00
5
0920613001
ref: 5
PIN
€ 2.50
