CRANKCASE
DR650RSU 1991 (M) GERMANY (E22)

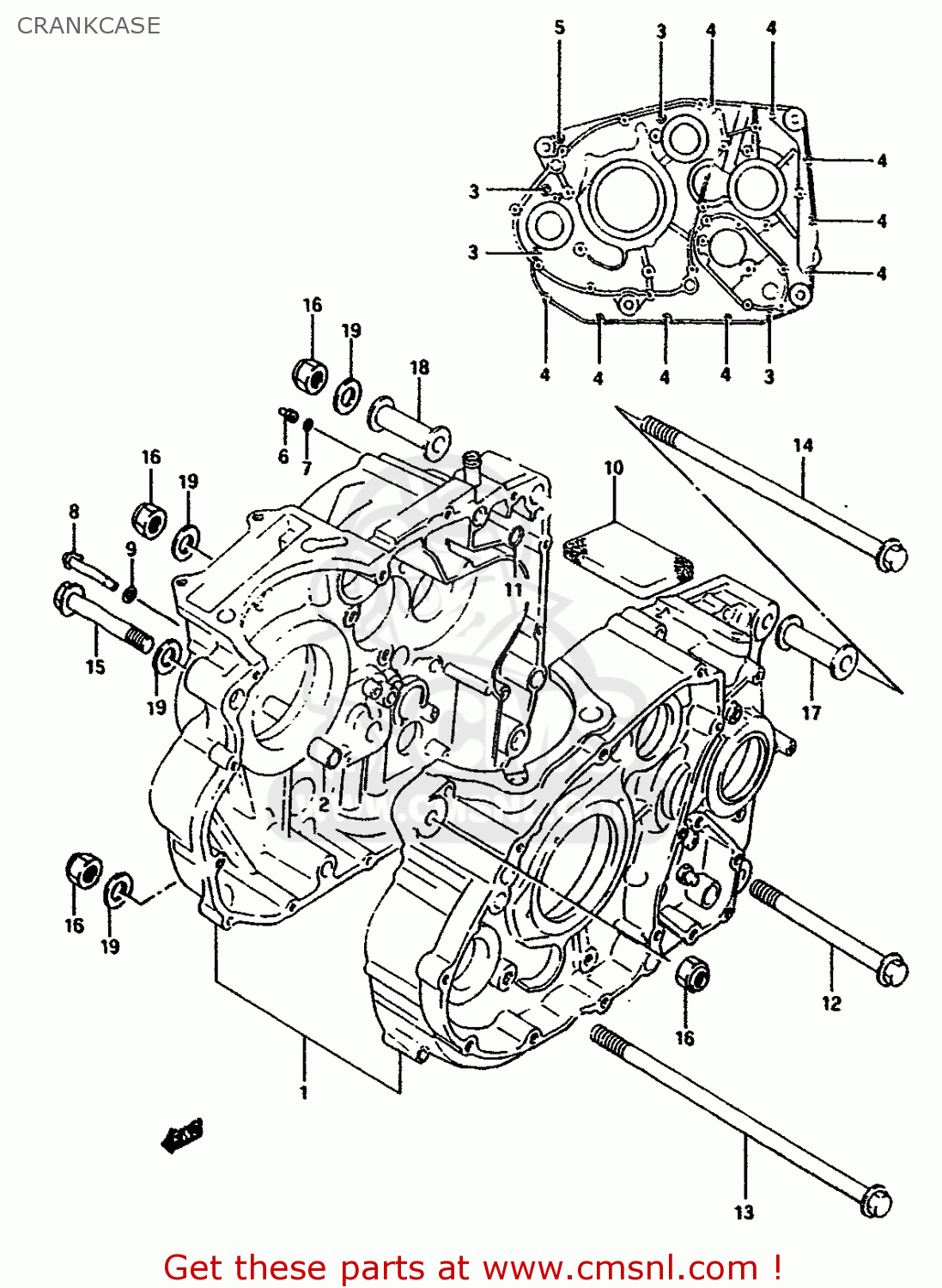

Crankcase diagram DR650RSU 1991 (M) GERMANY (E22)
CRANKCASE DR650RSU 1991 (M) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1130112820
ref: 1
CRANKCASE SET
€ 586.50
2
0920613001
ref: 2
PIN
€ 2.50
3
0154706605
ref: 3
BOLT (6X60)
€ 3.50
4
0154706404
ref: 4
BOLT 6X40
€ 3.00
5
0154706304
ref: 5
BOLT 6X30
€ 2.50
6
0949324012
ref: 6
JET(12)
€ 10.50
7
0928004004
ref: 7
O RING(D:1.2,ID:4)
€ 2.00
8
1139012D01
ref: 8
PIPE,PISTON COOLING
€ 20.00
9
0928008016
ref: 9
O-RING
€ 4.00
10
1132814A02
ref: 10
SEPARATOR,OIL BREATHER
€ 4.50
11
0928009004
ref: 11
O-RING
€ 4.00
12
0910310237
ref: 12
BOLT(10X130)
€ 5.50
13
0910310238
ref: 13
BOLT 10X230
€ 17.00
14
0910310239
ref: 14
BOLT(10X235)
€ 12.00
15
0910310240
ref: 15
BOLT(10X80)
€ 7.00
16
0915910044
ref: 16
NUT (10MM)
€ 4.00
17
1161014A00
ref: 17
SPACER,ENG MTG(L:55)
€ 9.00
18
1161045410
ref: 18
SPACER,ENGINE MOUNT(L:65)
€ 11.50
19
0832211104
ref: 19
WASHER 10MM
€ 2.50
