MAGNETO
DR650RSU 1991 (M) GERMANY (E22)

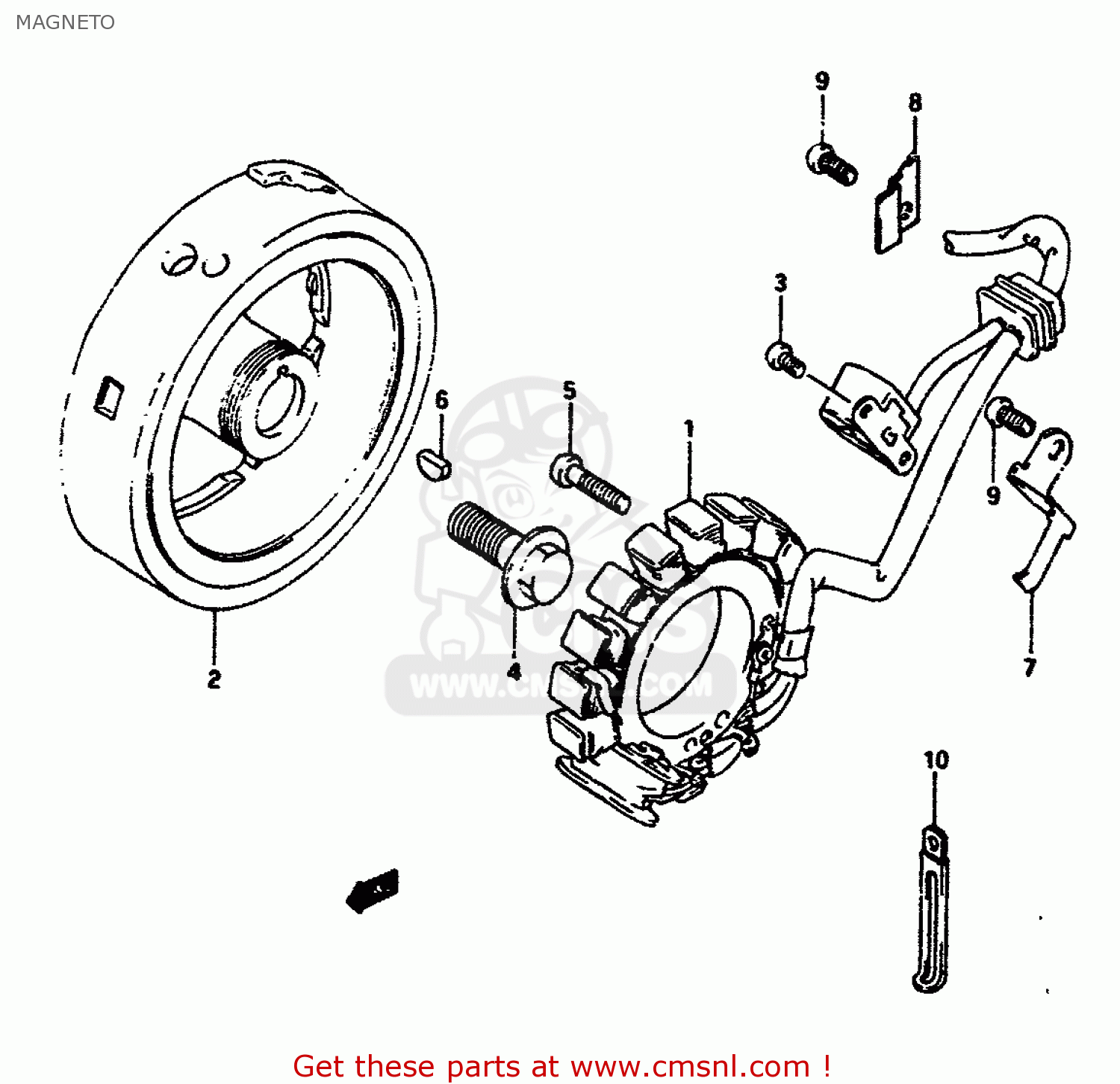

Magneto diagram DR650RSU 1991 (M) GERMANY (E22)
MAGNETO DR650RSU 1991 (M) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3210112D00
ref: 1
STARTER ASSY
€ 799.50
2
3210212D00
ref: 2
ROTOR
€ 449.00
3
0211205128
ref: 3
SCREW
€ 2.50
4
0910314001
ref: 4
BOLT(14X43)
€ 7.00
5
0211206258
ref: 5
SCREW
€ 2.00
6
0834131049
ref: 6
KEY 4MM
€ 3.50
7
3237114A00
ref: 7
CLAMP,MAGNETO LEAD WIRE
€ 3.50
8
3237112D10
ref: 8
CLAMP,MAGNETO LEAD WIRE
€ 2.50
9
0211206108
ref: 9
SCREW
€ 1.50
10
0940406402
ref: 10
CLAMP
€ 2.50
