FRONT BRAKE HOSE
DR650RSU 1991 (M) GERMANY (E22)

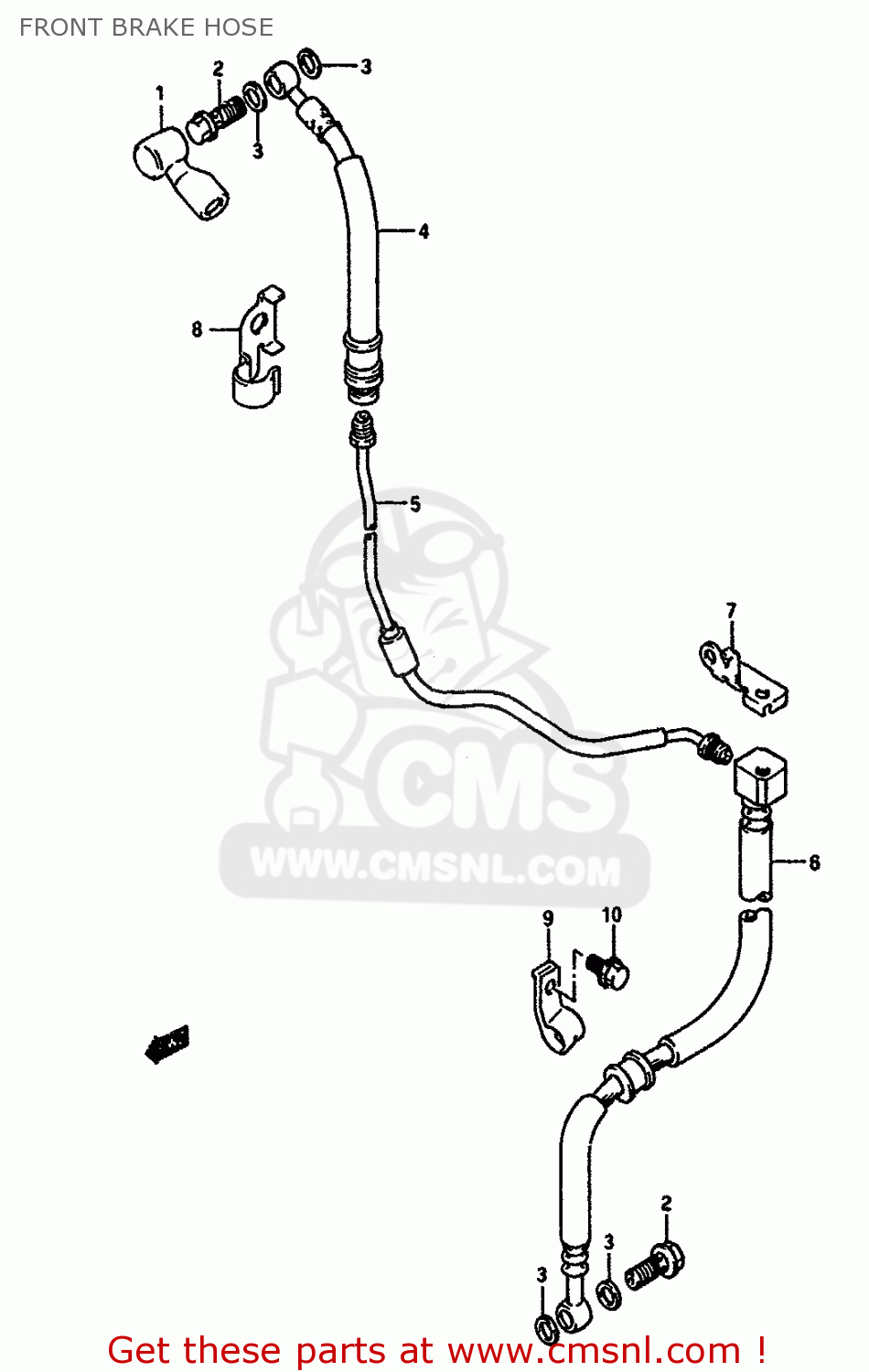

Front brake hose diagram DR650RSU 1991 (M) GERMANY (E22)
FRONT BRAKE HOSE DR650RSU 1991 (M) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5971104700
ref: 1
BOOT,MASTER CYLINDER
€ 14.50
2
0936010017
ref: 2
BOLT UNION
€ 6.50
3
0916110009
ref: 3
WASHER(10X15X1.5)
€ 2.00
4
5948012D00
ref: 4
HOSE,FR BRAKE NO.1
€ 46.00
5
5925012D00
ref: 5
PIPE,FRONT BRAKE
€ 12.50
6
5924012D00
ref: 6
HOSE COMP,FRONT BRAKE
€ 61.50
7
5924312D00
ref: 7
BRACKET,FRONT BRAKE HOSE
€ 6.50
8
5926612D01
ref: 8
CLAMP,FR BRAKE HOSE NO.1
€ 6.00
9
5926812D00
ref: 9
CLAMP,FR BRAKE HOSE NO.2
€ 7.00
10
0154706127
ref: 10
BOLT
€ 2.00
