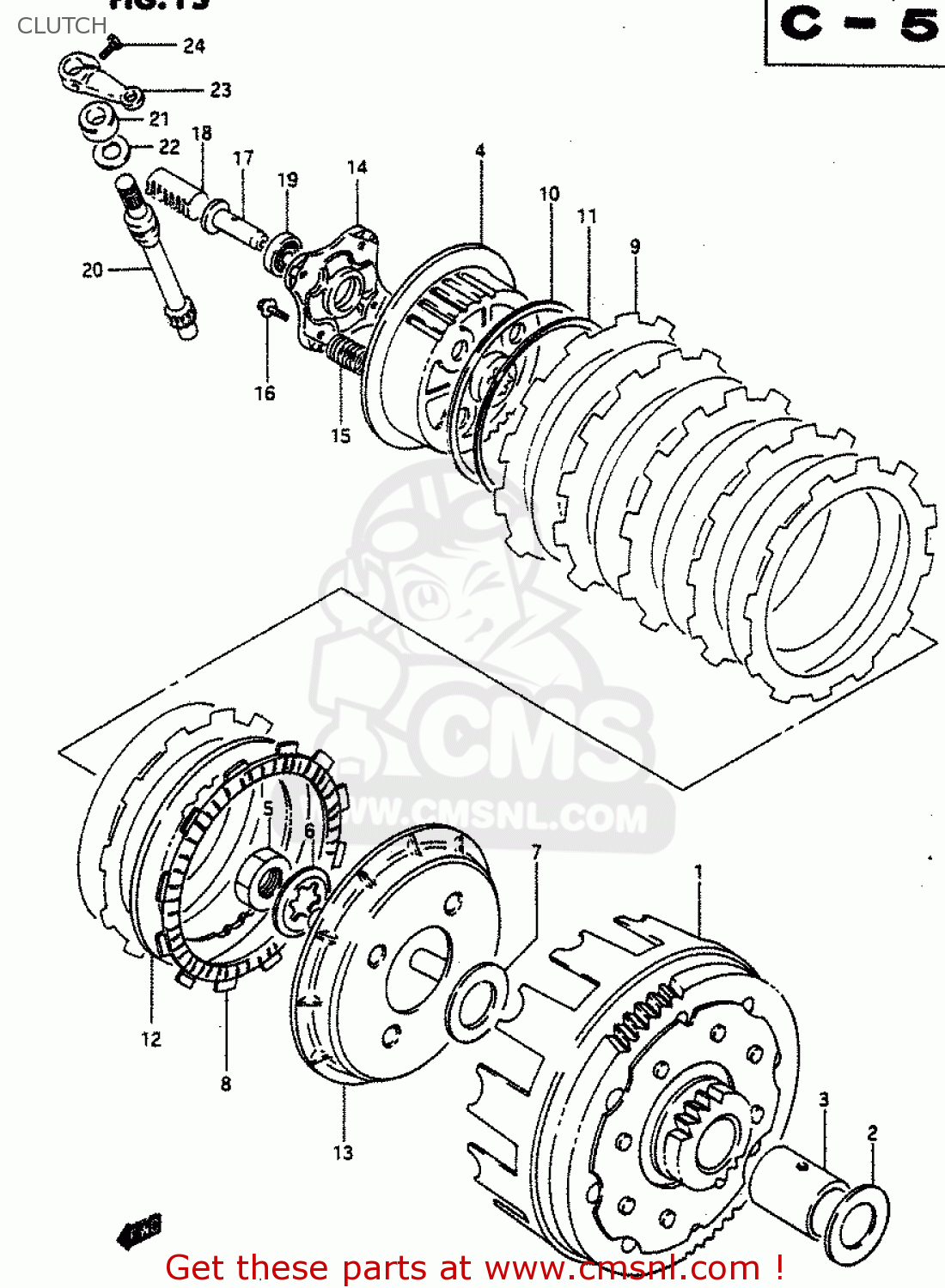

CLUTCH

ref

part #

description

quantity

1

2120012D00
ref: 1
NT:66/18

GEAR ASSEMBLY,PRIMARY DRIVE

€ 260.00

2

0821122383
ref: 2

WASHER

€ 3.00

3

0918022023
ref: 3

SPACER(22X28X32.5)

€ 15.50

4

2141012D00
ref: 4

HUB,CLUTCH SLEEVE

€ 93.50

5

0914022003
ref: 5

NUT

€ 10.00

6

0916722005
ref: 6

WASHER,LOCK

€ 2.50

7

0821122383
ref: 7

WASHER

€ 3.00

8

2144112D00
ref: 8

PLATE,CLUTCH DRIVE (NAS)

€ 16.50

9

2144212D00
ref: 9

PLATE,CLUTCH DRIVE NO (NAS)

€ 11.50

10

2147137400
ref: 10

SEAT,WAVE WASHER(T:1.4)

€ 8.00

11

0916400004
ref: 11

WASHER

€ 9.00

12

2145112D00
ref: 12

PLATE,CLUTCH DRIVEN (NAS)

€ 6.50

13

2146212D00
ref: 13

DISC,CLUTCH PRESSURE

€ 92.00

14

2146537400
ref: 14

PLATE,RELEASE

€ 11.50

15

0944020013
ref: 15

SPRING

€ 5.00

16

0151706207
ref: 16

BOLT 6X20

€ 2.50

17

2312114A00
ref: 17

PIECE,CLUTCH PUSH

€ 14.50

18

2316537400
ref: 18

RACK,CLUTCH RELEASE

€ 19.00

19

0811060010
ref: 19

BEARING

€ 15.00

20

2326116501
ref: 20

PINION,CLUTCH RELEASE

€ 40.50

21

0928512006
ref: 21

SEAL,OIL (12X22X9)

€ 7.00

22

0916014003
ref: 22

WASHER (14.2X22X1)

€ 1.00

23

2327145400
ref: 23

ARM,CLUTCH RELEASE

€ 31.50

24

0110706207
ref: 24

BOLT

€ 2.00

all assemblies
