FUEL COCK

DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

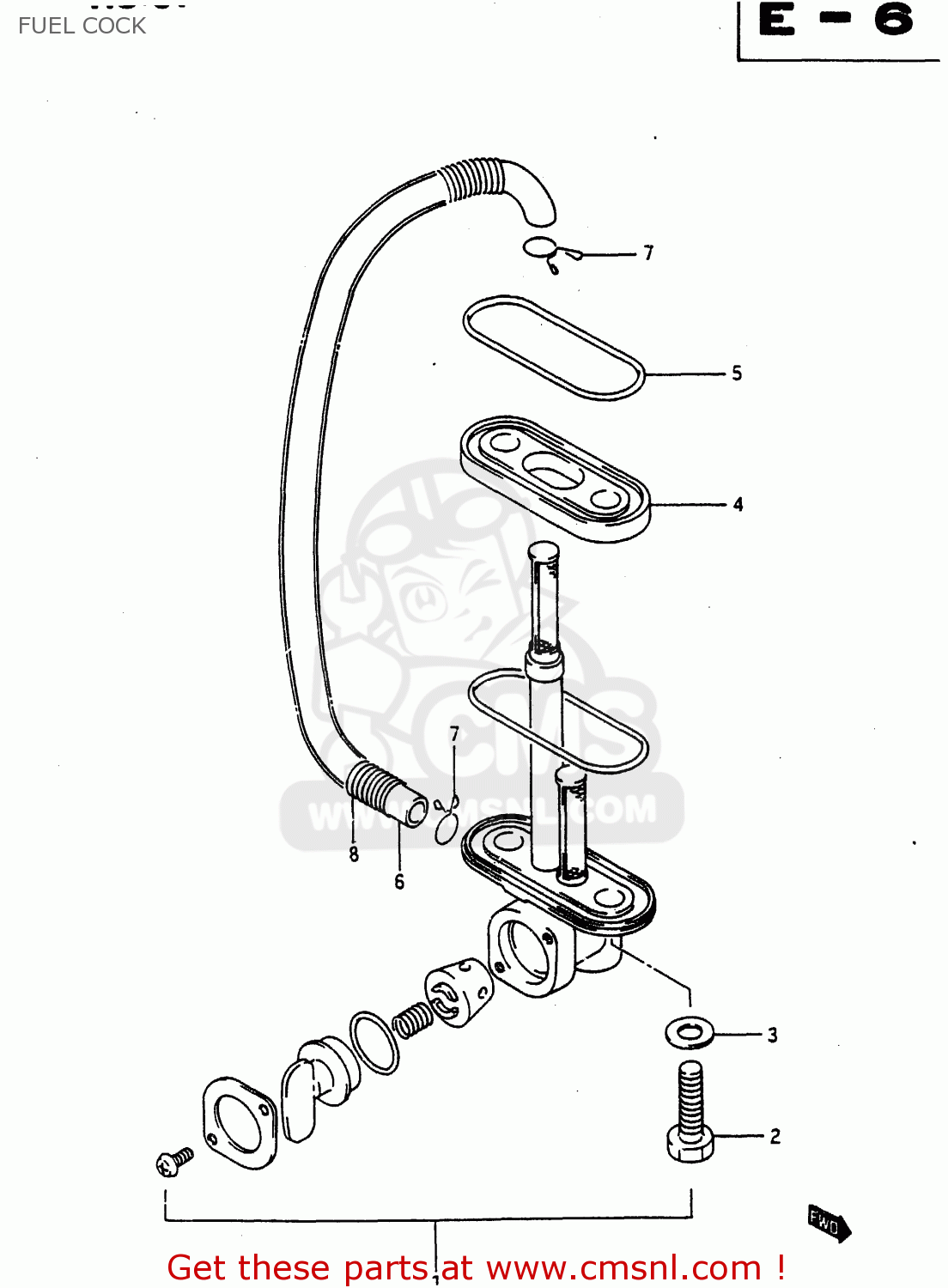

Fuel cock diagram DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

FUEL COCK DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

FUEL COCK DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

prices are in EUR

ref

part #

description

quantity

1

4430014A01
ref: 1

COCK ASSY,FUEL

€ 57.00

2

0912806006
ref: 2

BOLT(6X20)

€ 2.00

3

0916806026
ref: 3

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

4

4436514A00
ref: 4

SPACER,FUEL COCK

€ 12.00

5

4436614A00
ref: 5

GASKET,FUEL COCK (NAS)

€ 2.50

6

0935270103300
ref: 6

HOSE

€ 8.00

7

0940110402
ref: 7

CLIP

€ 7.00

8

0944013034
ref: 8

SPRING

€ 2.50
