STEERING STEM

DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

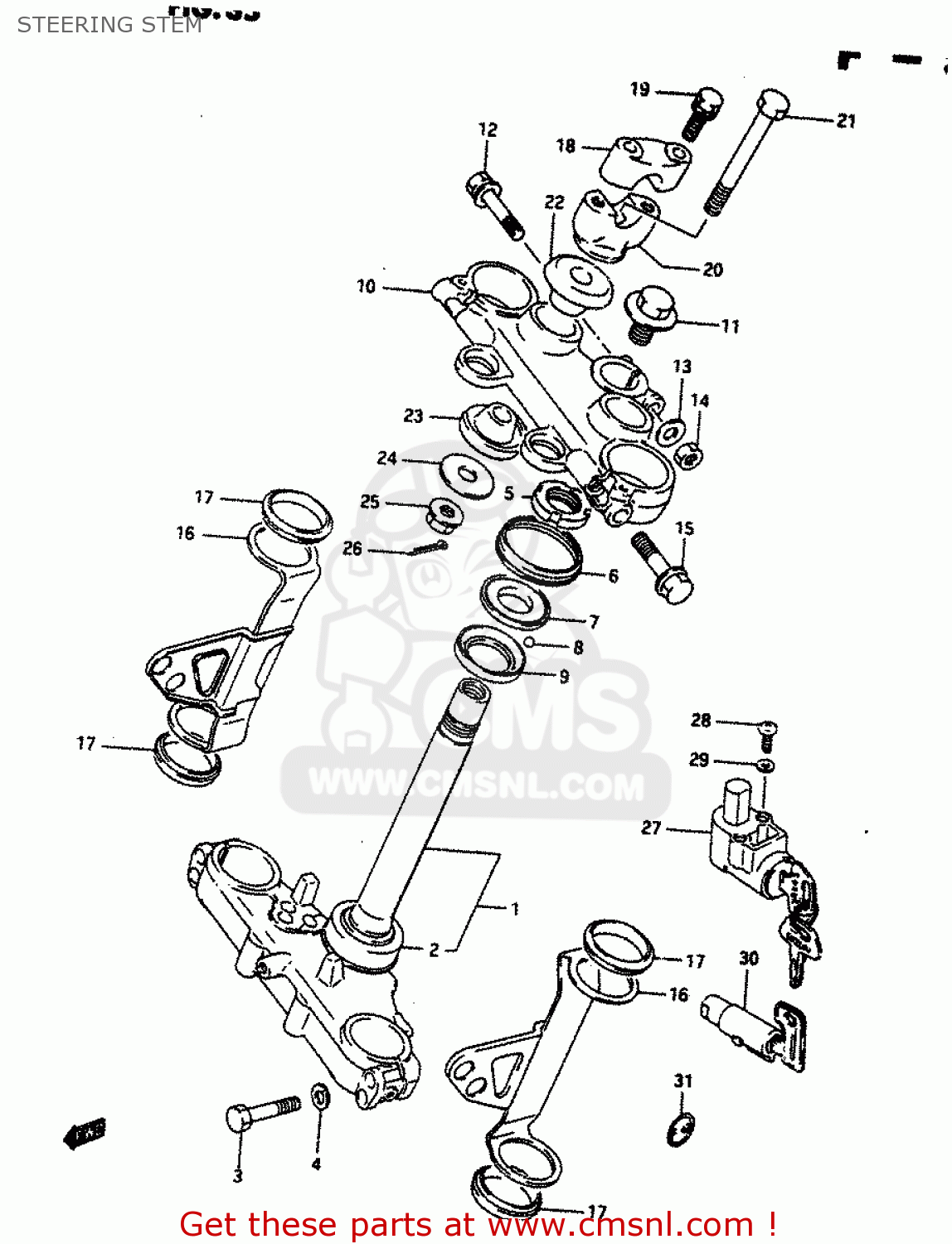

Steering stem diagram DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)

STEERING STEM DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)
STEERING STEM DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)
STEERING STEM DR650RU 1990 (L) WGERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
5141014A20
ref: 1
STEM,STEERING
€ 473.50
1
5141014A30
ref: 1
E15, E17, E22,
STEM,STEERING
5141014A30
€ 473.50
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3
0110708455
ref: 3
BOLT
€ 2.50
4
0832131084
ref: 4
LOCK WASHER
€ 2.50
5
5163140200
ref: 5
NUT,STEERING STEM
5163140200
€ 12.00
6
5164340200
ref: 6
SEAL,STEERING UPR DUST
5164340200
€ 7.50
7
5162140200
ref: 7
RACE,STEERING,OUTER,UPPER
5162140200
€ 17.00
8
0611108003
ref: 8
BALL
0611108003
€ 1.50
9
5161140201
ref: 9
RACE,STEERING INNER (SUJ)
5161140201
€ 8.50
10
5131114A20
ref: 10
HEAD,STEERING STEM
€ 215.50
11
5135314A00
ref: 11
BOLT,STEERING STEM
5135314A00
€ 9.50
12
0112708505
ref: 12
BOLT
€ 2.50
13
0832211084
ref: 13
WASHER
0832211084
€ 1.50
14
0831012085
ref: 14
NUT ,8MM
0831012085
€ 1.50
15
0151710455
ref: 15
BOLT
€ 3.00
16
5153014A20
ref: 16
COVER,FORK,RIGHT
€ 40.50
16
5154014A20
ref: 16
COVER,FORK,LEFT
€ 40.50
17
5155314A20
ref: 17
CUSHION,HEADLAMP BRACKET
€ 8.50
18
5621127210019
ref: 18
HOLDER,HANDLEBAR
5621127210019
€ 12.00
19
0114708355
ref: 19
BOLT
€ 2.00
20
5622114330291
ref: 20
HOLDER,HANDLE LWR
5622114330291
€ 25.50
21
5132114200
ref: 21
BOLT,HANDLE HOLDER
5132114200
€ 6.50
22
5624114A00
ref: 22
DAMPER,UPR
5624114A00
€ 25.00
23
5624214200
ref: 23
DAMPER,LWR
5624214200
€ 21.50
24
5135640400
ref: 24
WASHER,HANDLEBAR HOLDER
€ 2.00
25
0831931107
ref: 25
NUT
0831931107
€ 3.00
26
0411120308
ref: 26
COTTER PIN
€ 1.00
27
5190030831
ref: 27
LOCK ASSY,STEERING
5190030831
€ 30.00
28
0211205128
ref: 28
SCREW
€ 2.50
29
0832121057
ref: 29
LOCK WASHER
0832121057
€ 2.00
30
5190030901
ref: 30
E15, E17, E22
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
31
5191545000
ref: 31
E17
LABEL,STEERING LOCK
5191545000
€ 1.50
